SDO HMI 2014-07-06 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 328.62 | 1773.81 | 186.27 | 1009.00 | -7.79 | 220.13 | -26.73 | 113.11 | 0.4859 | 326.8 | 93.8 | |
|
previous
or next observation for the same group /

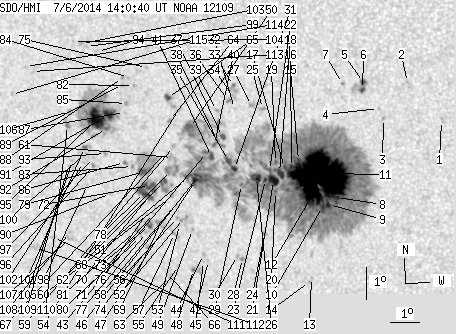

back to the solar disc SDO HMI 2014-07-06 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.63 | -6.11 | 226.21 | -20.65 | 114.82 | 0.3880 | 780.0 | 751.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -4.96 | 225.13 | -21.72 | 111.06 | 0.3968 | 743.0 | 585.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -6.09 | 224.29 | -22.56 | 112.89 | 0.4159 | 851.0 | 622.4 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -5.79 | 224.14 | -22.72 | 112.07 | 0.4163 | 597.0 | 383.4 | |
| 2.00 | 13.17 | 1.09 | 7.19 | -5.00 | 223.68 | -23.18 | 109.90 | 0.4188 | -695.2 | -11.0 | |
| 1.73 | -5.00 | 0.94 | -5.00 | -5.21 | 223.63 | -23.22 | 110.35 | 0.4206 | 697.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -5.04 | 222.97 | -23.88 | 109.45 | 0.4295 | -669.0 | -567.7 | |
| 2.18 | 1382.71 | 1.21 | 778.30 | -8.58 | 222.58 | -24.28 | 116.54 | 0.4564 | 1177.0 | 263.0 | |
| 2.36 | -8.00 | 1.32 | -8.00 | -8.81 | 222.29 | -24.57 | 116.72 | 0.4619 | 953.4 | 999999 | |
| 3.09 | -8.00 | 1.73 | -8.00 | -8.87 | 222.08 | -24.78 | 116.66 | 0.4652 | 678.9 | 999999 | |
| 158.76 | -8.00 | 88.39 | -8.00 | -7.85 | 222.12 | -24.74 | 114.66 | 0.4581 | 1421.0 | 999999 | |
| 30.88 | -8.00 | 17.28 | -8.00 | -8.51 | 221.77 | -25.09 | 115.66 | 0.4672 | 1098.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -11.11 | 221.51 | -25.34 | 120.32 | 0.4885 | -577.0 | -444.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -11.24 | 221.43 | -25.42 | 120.48 | 0.4905 | -601.0 | -445.4 | |
| 0.27 | -8.00 | 0.15 | -8.00 | -7.46 | 221.36 | -25.50 | 113.25 | 0.4665 | 859.0 | 999999 | |
| 0.27 | -8.00 | 0.15 | -8.00 | -7.69 | 221.11 | -25.75 | 113.49 | 0.4714 | 911.0 | 999999 | |
| 0.27 | -8.00 | 0.15 | -8.00 | -7.69 | 220.87 | -25.99 | 113.31 | 0.4748 | 774.0 | 999999 | |
| 7.36 | -8.00 | 4.15 | -8.00 | -7.85 | 220.68 | -26.17 | 113.48 | 0.4783 | 808.0 | 999999 | |
| 1.36 | -8.00 | 0.77 | -8.00 | -7.54 | 220.57 | -26.29 | 112.79 | 0.4782 | 621.7 | 999999 | |
| 0.73 | -8.00 | 0.41 | -8.00 | -8.45 | 220.50 | -26.35 | 114.48 | 0.4844 | 662.8 | 999999 | |
| 8.99 | -8.00 | 5.08 | -8.00 | -8.11 | 220.46 | -26.40 | 113.79 | 0.4830 | 906.8 | 999999 | |
| 2.00 | -8.00 | 1.13 | -8.00 | -7.80 | 220.34 | -26.51 | 113.11 | 0.4828 | 733.4 | 999999 | |
| 1.36 | -8.00 | 0.77 | -8.00 | -8.08 | 220.19 | -26.67 | 113.53 | 0.4867 | 849.3 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.30 | -9.77 | 220.01 | -26.84 | 116.54 | 0.4994 | 703.0 | 550.7 | |
| 0.00 | 2.45 | 0.00 | 1.38 | -5.88 | 220.22 | -26.64 | 109.25 | 0.4743 | 322.0 | 401.5 | |
| 7.81 | -8.00 | 4.44 | -8.00 | -8.03 | 219.88 | -26.98 | 113.19 | 0.4907 | 791.6 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.69 | -5.80 | 219.85 | -27.01 | 108.84 | 0.4793 | -229.0 | -257.7 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -10.58 | 219.17 | -27.69 | 117.28 | 0.5159 | -963.0 | -875.9 | |
| 0.64 | -8.00 | 0.36 | -8.00 | -8.26 | 219.34 | -27.52 | 113.22 | 0.4995 | 631.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -10.49 | 219.00 | -27.85 | 116.99 | 0.5176 | -821.0 | -639.2 | |
| 2.91 | -8.00 | 1.66 | -8.00 | -7.77 | 219.14 | -27.72 | 112.15 | 0.4996 | 818.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -5.91 | 219.26 | -27.60 | 108.67 | 0.4884 | -504.0 | -472.4 | |
| 0.45 | 6.27 | 0.26 | 3.55 | -5.20 | 219.26 | -27.60 | 107.27 | 0.4851 | -592.8 | -45.7 | |
| 0.00 | 1.91 | 0.00 | 1.08 | -5.54 | 219.24 | -27.62 | 107.93 | 0.4869 | 775.0 | 615.0 | |
| 3.54 | -8.00 | 2.03 | -8.00 | -7.53 | 218.94 | -27.91 | 111.56 | 0.5010 | 810.9 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.19 | -5.67 | 219.06 | -27.80 | 108.07 | 0.4901 | 756.0 | 643.3 | |
| 2.18 | -8.00 | 1.24 | -8.00 | -6.79 | 218.79 | -28.07 | 110.06 | 0.4994 | 840.3 | 999999 | |
| 0.91 | -8.00 | 0.52 | -8.00 | -6.92 | 218.60 | -28.25 | 110.18 | 0.5027 | 660.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -5.99 | 218.63 | -28.23 | 108.43 | 0.4979 | 579.0 | 473.8 | |
| 0.91 | -8.00 | 0.52 | -8.00 | -7.04 | 218.49 | -28.37 | 110.35 | 0.5049 | 632.8 | 999999 | |
| 2.91 | -8.00 | 1.67 | -8.00 | -7.42 | 218.36 | -28.50 | 110.96 | 0.5087 | 830.3 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -10.67 | 217.96 | -28.90 | 116.48 | 0.5326 | -679.0 | -528.9 | |
| 1.09 | -8.00 | 0.63 | -8.00 | -7.30 | 218.19 | -28.67 | 110.63 | 0.5104 | 567.3 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.17 | -10.49 | 217.80 | -29.05 | 116.05 | 0.5336 | -872.0 | -668.0 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -10.71 | 217.78 | -29.08 | 116.41 | 0.5352 | -673.0 | -719.7 | |
| 2.54 | -8.00 | 1.47 | -8.00 | -8.02 | 217.86 | -29.00 | 111.73 | 0.5189 | -1019.9 | 999999 | |
| 4.45 | -8.00 | 2.58 | -8.00 | -8.18 | 217.74 | -29.12 | 111.94 | 0.5213 | -985.8 | 999999 | |
| 0.64 | 4.63 | 0.37 | 2.72 | -10.97 | 217.40 | -29.46 | 116.56 | 0.5419 | -775.9 | -660.4 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -9.72 | 217.49 | -29.37 | 114.48 | 0.5332 | -778.0 | -580.5 | |
| 5.18 | -8.00 | 2.99 | -8.00 | -6.54 | 217.65 | -29.21 | 108.88 | 0.5144 | -476.6 | 999999 | |
| 2.63 | -8.00 | 1.53 | -8.00 | -8.06 | 217.50 | -29.36 | 111.57 | 0.5240 | -1018.0 | 999999 | |
| 0.00 | 3.45 | 0.00 | 2.02 | -9.38 | 217.20 | -29.65 | 113.70 | 0.5351 | -670.0 | -774.6 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -9.57 | 217.04 | -29.81 | 113.92 | 0.5384 | -571.0 | -485.8 | |
| 0.00 | 1.82 | 0.00 | 1.05 | -5.99 | 217.29 | -29.56 | 107.66 | 0.5170 | -969.0 | -771.1 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -10.86 | 216.87 | -29.99 | 115.99 | 0.5481 | -737.0 | -618.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -9.36 | 216.99 | -29.86 | 113.51 | 0.5379 | -804.0 | -734.3 | |
| 0.00 | 5.81 | 0.00 | 3.42 | -9.86 | 216.84 | -30.02 | 114.26 | 0.5428 | -638.0 | -513.9 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -8.98 | 216.92 | -29.94 | 112.81 | 0.5368 | -655.0 | -465.7 | |
| 0.00 | 2.54 | 0.00 | 1.48 | -7.15 | 217.04 | -29.82 | 109.62 | 0.5259 | -310.0 | -246.9 | |
| 0.00 | 1.91 | 0.00 | 1.12 | -8.67 | 216.88 | -29.98 | 112.24 | 0.5357 | -691.0 | -610.9 | |
| 0.00 | 5.18 | 0.00 | 3.02 | -7.49 | 216.98 | -29.88 | 110.20 | 0.5284 | -602.0 | -564.7 | |
| 0.00 | 13.08 | 0.00 | 7.64 | -7.90 | 216.91 | -29.95 | 110.89 | 0.5313 | -937.0 | -882.9 | |
| 0.00 | 2.36 | 0.00 | 1.40 | -11.22 | 216.54 | -30.32 | 116.34 | 0.5546 | -601.0 | -597.5 | |
| 0.00 | 2.09 | 0.00 | 1.21 | -6.34 | 216.95 | -29.90 | 108.11 | 0.5234 | -1037.0 | -859.0 | |
| 2.36 | 7.99 | 1.37 | 4.63 | -5.63 | 216.93 | -29.93 | 106.79 | 0.5207 | -1023.4 | -803.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -11.13 | 216.44 | -30.41 | 116.12 | 0.5553 | -713.0 | -632.5 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -7.31 | 216.78 | -30.08 | 109.76 | 0.5303 | -102.0 | -158.1 | |
| 3.63 | 12.26 | 2.13 | 7.19 | -8.25 | 216.59 | -30.26 | 111.31 | 0.5374 | -948.2 | -703.5 | |
| 0.00 | 5.72 | 0.00 | 3.38 | -9.56 | 216.36 | -30.49 | 113.43 | 0.5475 | -917.0 | -749.1 | |
| 2.27 | 29.61 | 1.34 | 17.49 | -8.54 | 216.21 | -30.65 | 111.57 | 0.5442 | -992.5 | -686.6 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -9.26 | 216.14 | -30.71 | 112.77 | 0.5488 | -908.0 | -749.7 | |
| 6.45 | -70.00 | 3.81 | -70.00 | -8.39 | 216.08 | -30.78 | 111.23 | 0.5452 | -1015.3 | 999999 | |
| 2.09 | 5.00 | 1.24 | 2.97 | -9.64 | 215.96 | -30.90 | 113.29 | 0.5533 | -843.8 | -727.6 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -10.33 | 215.85 | -31.01 | 114.38 | 0.5585 | -693.0 | -529.4 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -4.73 | 216.23 | -30.63 | 104.77 | 0.5271 | -809.0 | -568.0 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -9.26 | 215.89 | -30.97 | 112.62 | 0.5523 | -645.0 | -513.5 | |
| 0.00 | 2.18 | 0.00 | 1.30 | -9.86 | 215.83 | -31.03 | 113.58 | 0.5562 | -567.0 | -492.8 | |
| 10.54 | -70.00 | 6.24 | -70.00 | -8.61 | 215.88 | -30.98 | 111.49 | 0.5490 | -790.3 | 999999 | |
| 6.63 | 34.88 | 3.91 | 20.54 | -7.96 | 215.94 | -30.92 | 110.40 | 0.5450 | -1043.5 | -537.9 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -9.99 | 215.60 | -31.26 | 113.65 | 0.5600 | -537.0 | -407.0 | |
| 0.00 | 2.36 | 0.00 | 1.41 | -9.78 | 215.51 | -31.35 | 113.23 | 0.5600 | -675.0 | -516.6 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -5.30 | 215.74 | -31.12 | 105.57 | 0.5363 | -895.0 | -750.7 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -7.81 | 215.52 | -31.34 | 109.90 | 0.5501 | -791.0 | -703.4 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -5.06 | 215.57 | -31.29 | 105.06 | 0.5378 | -858.0 | -758.0 | |
| 0.00 | 1.73 | 0.00 | 1.02 | -5.86 | 215.45 | -31.41 | 106.44 | 0.5426 | -965.0 | -852.5 | |
| 0.36 | 1.45 | 0.22 | 0.86 | -7.70 | 215.24 | -31.62 | 109.54 | 0.5534 | -847.0 | -768.3 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -6.15 | 215.36 | -31.50 | 106.90 | 0.5450 | -790.0 | -614.6 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -5.07 | 215.35 | -31.50 | 104.97 | 0.5409 | -761.0 | -686.8 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -5.28 | 215.34 | -31.52 | 105.35 | 0.5419 | -822.0 | -678.0 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -8.68 | 214.64 | -32.22 | 110.87 | 0.5661 | -637.0 | -529.0 | |
| 7.18 | 136.96 | 4.26 | 81.74 | -6.23 | 214.78 | -32.08 | 106.74 | 0.5535 | -1158.6 | -411.9 | |
| 1.09 | -91.00 | 0.65 | -91.00 | -6.66 | 214.67 | -32.19 | 107.45 | 0.5567 | -923.5 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.25 | -7.44 | 214.57 | -32.29 | 108.73 | 0.5614 | -837.0 | -701.4 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -4.29 | 214.49 | -32.36 | 103.21 | 0.5504 | -640.0 | -579.7 | |
| 22.07 | -91.00 | 13.18 | -91.00 | -6.39 | 214.33 | -32.53 | 106.82 | 0.5604 | -1025.0 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.04 | -7.83 | 214.10 | -32.76 | 109.13 | 0.5695 | -804.0 | -680.8 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -7.58 | 214.12 | -32.74 | 108.73 | 0.5681 | -774.0 | -630.9 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -8.43 | 213.82 | -33.03 | 109.98 | 0.5760 | -543.0 | -448.2 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -4.15 | 214.10 | -32.76 | 102.80 | 0.5555 | -764.0 | -637.1 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -7.46 | 213.84 | -33.02 | 108.39 | 0.5715 | -709.0 | -576.1 | |
| 0.91 | 3.54 | 0.55 | 2.13 | -7.28 | 213.82 | -33.04 | 108.07 | 0.5710 | -770.2 | -669.8 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -7.75 | 213.74 | -33.12 | 108.81 | 0.5741 | -609.0 | -532.0 | |
| 0.00 | 2.18 | 0.00 | 1.30 | -4.06 | 213.92 | -32.94 | 102.58 | 0.5578 | -747.0 | -637.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -4.01 | 213.63 | -33.23 | 102.38 | 0.5617 | -416.0 | -361.9 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -7.70 | 213.34 | -33.52 | 108.52 | 0.5793 | -687.0 | -558.3 | |
| 0.00 | 2.27 | 0.00 | 1.37 | -6.18 | 213.35 | -33.50 | 105.99 | 0.5730 | -710.0 | -625.9 | |
| 0.00 | 3.09 | 0.00 | 1.90 | -10.14 | 212.97 | -33.89 | 112.27 | 0.5954 | -623.0 | -617.6 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -9.95 | 212.99 | -33.87 | 111.99 | 0.5942 | -855.0 | -742.9 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -7.86 | 213.18 | -33.68 | 108.70 | 0.5822 | -446.0 | -377.9 | |
| 0.64 | 4.72 | 0.38 | 2.86 | -6.61 | 213.25 | -33.61 | 106.67 | 0.5762 | -752.6 | -557.9 | |
| 0.00 | 2.09 | 0.00 | 1.29 | -10.13 | 212.37 | -34.49 | 111.92 | 0.6031 | -699.0 | -489.3 | |
| 0.00 | 5.63 | 0.00 | 3.53 | -10.47 | 211.60 | -35.25 | 112.03 | 0.6145 | -644.0 | -450.1 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -4.99 | 212.06 | -34.79 | 103.45 | 0.5867 | -636.0 | -560.4 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -4.84 | 211.81 | -35.05 | 103.11 | 0.5897 | -631.0 | -525.6 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -5.73 | 211.22 | -35.63 | 104.34 | 0.6005 | -545.0 | -431.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
