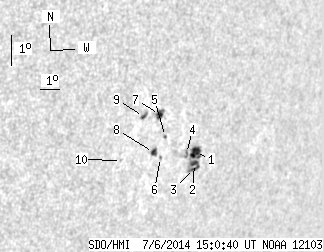

SDO HMI 2014-07-06 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.80 | 45.14 | 17.82 | 38.51 | -12.93 | 298.65 | 52.34 | 251.44 | 0.8159 | 169.5 | 115.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.63 | 24.34 | 7.53 | 21.27 | -13.16 | 299.56 | 53.25 | 251.42 | 0.8253 | 663.2 | 485.8 | |
| 3.00 | -1.00 | 2.62 | -1.00 | -13.52 | 299.62 | 53.31 | 251.02 | 0.8267 | 713.4 | 999999 | |
| 2.27 | -1.00 | 1.99 | -1.00 | -13.68 | 299.67 | 53.36 | 250.84 | 0.8275 | 459.0 | 999999 | |
| 0.00 | 3.00 | 0.00 | 2.59 | -13.17 | 299.09 | 52.78 | 251.27 | 0.8209 | 598.0 | 634.2 | |
| 0.00 | 1.36 | 0.00 | 1.14 | -12.57 | 297.83 | 51.53 | 251.63 | 0.8074 | -223.0 | -190.5 | |
| 0.00 | 1.09 | 0.00 | 0.91 | -13.23 | 297.77 | 51.47 | 250.81 | 0.8085 | -346.0 | -287.8 | |
| 3.63 | 7.36 | 2.99 | 6.06 | -11.85 | 297.34 | 51.03 | 252.36 | 0.8007 | -638.7 | -415.7 | |
| 2.18 | 3.81 | 1.81 | 3.17 | -13.05 | 297.37 | 51.06 | 250.91 | 0.8040 | -569.0 | -437.3 | |
| 1.09 | 3.45 | 0.88 | 2.79 | -11.88 | 296.56 | 50.25 | 252.10 | 0.7929 | -650.2 | -541.2 | |
| 0.00 | 0.73 | 0.00 | 0.58 | -13.23 | 295.84 | 49.54 | 250.21 | 0.7893 | -596.0 | -521.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
