SDO HMI 2014-07-06 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 140.95 | 737.34 | 78.19 | 409.13 | -11.84 | 268.33 | 22.02 | 234.72 | 0.4521 | 245.1 | 63.1 | |
|
previous
or next observation for the same group /

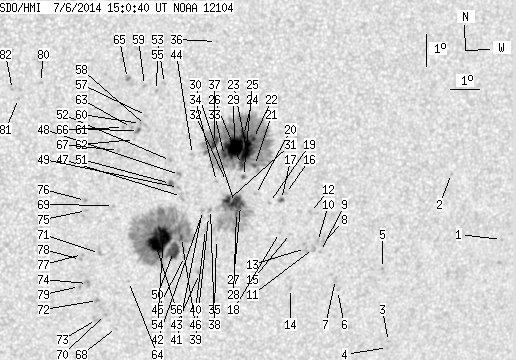

back to the solar disc SDO HMI 2014-07-06 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.45 | -13.55 | 278.91 | 32.61 | 241.62 | 0.5977 | 695.0 | 611.9 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -11.39 | 276.79 | 30.48 | 243.51 | 0.5577 | 418.0 | 440.6 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -16.70 | 275.26 | 28.95 | 233.97 | 0.5755 | 490.0 | 400.4 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -16.89 | 275.25 | 28.95 | 233.68 | 0.5769 | 624.0 | 496.2 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -14.33 | 274.68 | 28.38 | 237.06 | 0.5508 | 717.0 | 642.4 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -14.99 | 273.17 | 26.87 | 234.62 | 0.5375 | 631.0 | 554.8 | |
| 0.00 | 2.18 | 0.00 | 1.27 | -14.64 | 273.05 | 26.75 | 235.07 | 0.5332 | 695.0 | 608.6 | |
| 0.00 | 3.91 | 0.00 | 2.26 | -13.44 | 272.48 | 26.18 | 236.46 | 0.5168 | 664.0 | 586.7 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -13.72 | 272.41 | 26.11 | 235.92 | 0.5182 | 592.0 | 449.7 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -13.40 | 272.27 | 25.96 | 236.31 | 0.5139 | 635.0 | 586.9 | |
| 0.00 | 2.27 | 0.00 | 1.31 | -13.62 | 272.15 | 25.85 | 235.83 | 0.5142 | 732.0 | 690.0 | |
| 0.00 | 2.09 | 0.00 | 1.20 | -12.47 | 271.92 | 25.62 | 237.55 | 0.5023 | 591.0 | 446.0 | |
| 0.00 | 5.27 | 0.00 | 3.03 | -13.61 | 271.87 | 25.57 | 235.56 | 0.5106 | 667.0 | 652.6 | |
| 0.00 | 1.82 | 0.00 | 1.05 | -14.88 | 271.50 | 25.20 | 233.10 | 0.5165 | 756.0 | 630.5 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -13.12 | 271.30 | 24.99 | 235.80 | 0.4995 | 508.0 | 488.7 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -11.84 | 271.00 | 24.69 | 237.71 | 0.4856 | 769.0 | 574.2 | |
| 1.09 | 3.00 | 0.62 | 1.70 | -12.03 | 270.88 | 24.57 | 237.26 | 0.4855 | 826.8 | 692.1 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -13.08 | 270.91 | 24.61 | 235.47 | 0.4943 | 607.0 | 549.2 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -12.11 | 270.47 | 24.17 | 236.69 | 0.4810 | 768.0 | 607.1 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -11.85 | 269.97 | 23.67 | 236.62 | 0.4724 | 673.0 | 575.8 | |
| 1.18 | 289.33 | 0.66 | 160.43 | -10.93 | 269.86 | 23.55 | 238.19 | 0.4636 | 487.0 | 444.7 | |
| 1.09 | -21.00 | 0.61 | -21.00 | -10.08 | 269.76 | 23.45 | 239.69 | 0.4557 | 967.1 | 999999 | |
| 16.53 | -21.00 | 9.19 | -21.00 | -10.42 | 269.55 | 23.24 | 238.82 | 0.4555 | 1061.6 | 999999 | |
| 5.45 | -21.00 | 3.02 | -21.00 | -9.98 | 269.41 | 23.11 | 239.53 | 0.4503 | 1220.3 | 999999 | |
| 0.64 | 1.73 | 0.35 | 0.96 | -11.27 | 269.51 | 23.21 | 237.18 | 0.4618 | 682.9 | 593.5 | |
| 2.54 | -21.00 | 1.42 | -21.00 | -10.89 | 269.41 | 23.11 | 237.79 | 0.4574 | 749.8 | 999999 | |
| 3.54 | 87.64 | 1.98 | 49.08 | -12.18 | 269.49 | 23.19 | 235.49 | 0.4690 | 763.1 | 226.3 | |
| 1.45 | -27.00 | 0.81 | -27.00 | -12.40 | 269.38 | 23.07 | 234.96 | 0.4694 | 610.2 | 999999 | |
| 28.61 | -21.00 | 15.85 | -21.00 | -10.32 | 269.13 | 22.83 | 238.57 | 0.4492 | 1416.5 | 999999 | |
| 9.90 | -27.00 | 5.54 | -27.00 | -12.08 | 269.28 | 22.98 | 235.42 | 0.4655 | 970.5 | 999999 | |
| 4.81 | -27.00 | 2.69 | -27.00 | -12.01 | 269.04 | 22.73 | 235.27 | 0.4618 | 1124.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -11.41 | 268.95 | 22.65 | 236.28 | 0.4556 | 861.0 | 645.8 | |
| 1.36 | -21.00 | 0.75 | -21.00 | -10.59 | 268.82 | 22.51 | 237.69 | 0.4472 | 1188.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -11.40 | 268.61 | 22.31 | 235.91 | 0.4512 | 765.0 | 547.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -13.24 | 268.78 | 22.47 | 232.77 | 0.4692 | -199.0 | -149.2 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -7.02 | 268.33 | 22.02 | 244.52 | 0.4140 | 667.0 | 553.9 | |
| 6.18 | -21.00 | 3.40 | -21.00 | -10.17 | 268.45 | 22.15 | 238.08 | 0.4390 | 1262.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -12.28 | 268.49 | 22.18 | 234.13 | 0.4571 | 787.0 | 635.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -12.50 | 268.44 | 22.13 | 233.67 | 0.4585 | 473.0 | 378.8 | |
| 0.00 | 2.45 | 0.00 | 1.37 | -12.92 | 268.37 | 22.07 | 232.86 | 0.4613 | 530.0 | 439.3 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -12.31 | 268.22 | 21.92 | 233.76 | 0.4540 | 686.0 | 543.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -12.47 | 268.20 | 21.90 | 233.45 | 0.4551 | 353.0 | 251.6 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -14.32 | 268.31 | 22.00 | 230.35 | 0.4734 | -724.0 | -560.9 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -10.53 | 267.74 | 21.44 | 236.54 | 0.4325 | 839.0 | 672.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -13.76 | 267.75 | 21.44 | 230.59 | 0.4614 | -673.0 | -529.3 | |
| 2.00 | 252.37 | 1.11 | 139.45 | -13.15 | 267.59 | 21.28 | 231.45 | 0.4538 | -979.0 | -520.7 | |
| 0.00 | 3.63 | 0.00 | 2.00 | -11.85 | 267.48 | 21.17 | 233.68 | 0.4405 | -309.0 | -369.9 | |
| 0.00 | 2.18 | 0.00 | 1.20 | -11.15 | 267.36 | 21.05 | 234.85 | 0.4328 | 806.0 | 694.0 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -11.56 | 267.35 | 21.05 | 234.07 | 0.4364 | 410.0 | 127.2 | |
| 12.26 | -46.00 | 6.81 | -46.00 | -13.59 | 267.36 | 21.05 | 230.38 | 0.4552 | -946.8 | 999999 | |
| 1.27 | 3.54 | 0.70 | 1.94 | -11.43 | 267.08 | 20.77 | 233.96 | 0.4317 | 459.3 | 179.1 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -10.70 | 267.02 | 20.72 | 235.31 | 0.4246 | 1012.0 | 842.2 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -8.29 | 266.68 | 20.37 | 239.90 | 0.3999 | 945.0 | 730.5 | |
| 19.89 | -46.00 | 11.00 | -46.00 | -13.07 | 266.98 | 20.67 | 230.79 | 0.4456 | -1374.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -8.50 | 266.43 | 20.12 | 239.13 | 0.3981 | 781.0 | 592.4 | |
| 20.34 | -46.00 | 11.24 | -46.00 | -13.32 | 266.73 | 20.43 | 230.02 | 0.4451 | -1330.2 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -9.28 | 266.14 | 19.84 | 237.09 | 0.4006 | 744.0 | 661.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -9.59 | 266.13 | 19.82 | 236.41 | 0.4030 | 785.0 | 630.9 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -8.34 | 266.02 | 19.72 | 238.98 | 0.3912 | 865.0 | 728.2 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -9.52 | 265.96 | 19.65 | 236.33 | 0.4002 | 951.0 | 739.9 | |
| 0.82 | 3.27 | 0.44 | 1.77 | -9.74 | 265.90 | 19.60 | 235.80 | 0.4014 | 952.1 | 805.1 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -10.02 | 265.79 | 19.49 | 235.06 | 0.4024 | 709.0 | 485.8 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -9.64 | 265.67 | 19.36 | 235.69 | 0.3974 | 862.0 | 769.2 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -14.52 | 265.94 | 19.63 | 226.84 | 0.4477 | -658.0 | -514.8 | |
| 0.00 | 2.91 | 0.00 | 1.56 | -8.11 | 265.46 | 19.15 | 238.76 | 0.3815 | 1085.0 | 799.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -9.63 | 265.41 | 19.10 | 235.34 | 0.3939 | 915.0 | 723.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -10.35 | 265.29 | 18.98 | 233.67 | 0.3988 | 800.0 | 582.6 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -15.99 | 265.67 | 19.37 | 224.06 | 0.4604 | -384.0 | -540.2 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -12.08 | 265.24 | 18.93 | 230.18 | 0.4148 | -721.0 | -636.4 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -15.56 | 265.26 | 18.96 | 224.14 | 0.4513 | -696.0 | -573.4 | |
| 0.00 | 1.91 | 0.00 | 1.04 | -13.60 | 264.89 | 18.59 | 226.88 | 0.4262 | -890.0 | -798.5 | |
| 0.00 | 1.91 | 0.00 | 1.05 | -15.10 | 264.95 | 18.65 | 224.42 | 0.4430 | -902.0 | -775.8 | |
| 0.00 | 4.45 | 0.00 | 2.47 | -15.72 | 264.98 | 18.67 | 223.46 | 0.4499 | -543.0 | -555.4 | |
| 0.00 | 4.00 | 0.00 | 2.19 | -14.55 | 264.57 | 18.27 | 224.75 | 0.4327 | -815.0 | -661.8 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -12.22 | 264.36 | 18.06 | 228.59 | 0.4056 | -820.0 | -657.7 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -11.91 | 264.31 | 18.00 | 229.11 | 0.4017 | -1003.0 | -865.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -13.62 | 264.33 | 18.03 | 225.98 | 0.4200 | -700.0 | -665.2 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -13.78 | 264.28 | 17.97 | 225.62 | 0.4211 | -843.0 | -739.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -14.64 | 264.32 | 18.01 | 224.20 | 0.4309 | -838.0 | -727.3 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -8.18 | 262.65 | 16.34 | 234.44 | 0.3438 | -688.0 | -579.1 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -8.66 | 261.96 | 15.66 | 232.12 | 0.3395 | -713.0 | -549.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -8.38 | 261.76 | 15.45 | 232.43 | 0.3340 | -876.0 | -614.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
