SDO HMI 2014-07-06 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 323.66 | 1795.19 | 182.74 | 1015.46 | -7.77 | 220.15 | -26.16 | 113.52 | 0.4777 | 294.0 | 106.4 | |
|
previous
or next observation for the same group /

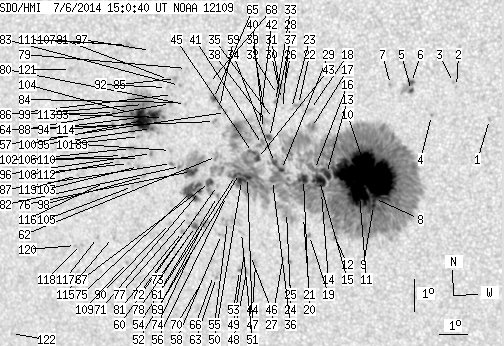

back to the solar disc SDO HMI 2014-07-06 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 0.97 | -6.06 | 226.25 | -20.06 | 115.35 | 0.3790 | 976.0 | 720.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -5.07 | 225.20 | -21.10 | 111.88 | 0.3881 | 778.0 | 616.5 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -4.95 | 225.11 | -21.20 | 111.50 | 0.3888 | 733.0 | 639.6 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -5.98 | 224.34 | -21.96 | 113.21 | 0.4064 | 820.0 | 654.0 | |
| 1.36 | 12.99 | 0.74 | 7.06 | -5.22 | 223.71 | -22.59 | 110.91 | 0.4112 | 704.0 | -38.5 | |
| 1.54 | -5.00 | 0.84 | -5.00 | -4.98 | 223.72 | -22.58 | 110.35 | 0.4097 | -763.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -5.05 | 223.02 | -23.28 | 109.95 | 0.4206 | -678.0 | -549.4 | |
| 2.27 | 1317.54 | 1.26 | 737.09 | -8.60 | 222.29 | -24.01 | 116.84 | 0.4528 | 996.5 | 275.0 | |
| 1.36 | -8.00 | 0.76 | -8.00 | -8.82 | 222.24 | -24.06 | 117.23 | 0.4550 | 971.8 | 999999 | |
| 157.11 | -8.00 | 87.10 | -8.00 | -7.83 | 222.11 | -24.20 | 115.11 | 0.4503 | 1453.9 | 999999 | |
| 32.87 | -8.00 | 18.32 | -8.00 | -8.49 | 221.79 | -24.51 | 116.15 | 0.4590 | 1116.1 | 999999 | |
| 0.54 | -8.00 | 0.31 | -8.00 | -9.85 | 220.87 | -25.43 | 117.93 | 0.4809 | 542.8 | 999999 | |
| 7.45 | -8.00 | 4.18 | -8.00 | -7.86 | 220.71 | -25.59 | 113.97 | 0.4702 | 827.1 | 999999 | |
| 2.00 | -8.00 | 1.12 | -8.00 | -8.46 | 220.50 | -25.80 | 114.96 | 0.4768 | 602.4 | 999999 | |
| 12.53 | -8.00 | 7.05 | -8.00 | -8.09 | 220.46 | -25.85 | 114.20 | 0.4751 | 878.6 | 999999 | |
| 2.18 | -8.00 | 1.23 | -8.00 | -7.75 | 220.31 | -25.99 | 113.42 | 0.4752 | 744.2 | 999999 | |
| 0.00 | 8.99 | 0.00 | 5.03 | -6.45 | 220.29 | -26.01 | 110.83 | 0.4682 | 331.0 | 319.0 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -5.89 | 220.29 | -26.02 | 109.70 | 0.4654 | 455.0 | 435.1 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -9.81 | 219.98 | -26.33 | 117.06 | 0.4927 | 625.0 | 483.9 | |
| 6.54 | -8.00 | 3.69 | -8.00 | -8.07 | 219.91 | -26.39 | 113.73 | 0.4827 | 791.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -9.26 | 219.82 | -26.49 | 115.89 | 0.4912 | 363.0 | 284.7 | |
| 0.00 | 4.45 | 0.00 | 2.50 | -5.75 | 219.88 | -26.42 | 109.13 | 0.4705 | -237.0 | -287.4 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -5.88 | 219.64 | -26.67 | 109.22 | 0.4747 | -487.0 | -379.6 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -10.65 | 219.21 | -27.10 | 117.90 | 0.5086 | -995.0 | -862.6 | |
| 0.00 | 21.25 | 0.00 | 12.13 | -9.12 | 219.24 | -27.06 | 115.16 | 0.4983 | -208.0 | -173.5 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -5.33 | 219.39 | -26.91 | 107.96 | 0.4757 | -44.0 | -46.9 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -10.59 | 218.97 | -27.34 | 117.60 | 0.5114 | -777.0 | -593.5 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -5.89 | 219.33 | -26.98 | 109.03 | 0.4793 | -580.0 | -471.9 | |
| 2.27 | -8.00 | 1.29 | -8.00 | -7.78 | 219.17 | -27.13 | 112.60 | 0.4914 | 861.6 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -5.61 | 219.31 | -27.00 | 108.47 | 0.4782 | 715.0 | 595.3 | |
| 0.00 | 2.09 | 0.00 | 1.18 | -5.21 | 219.26 | -27.05 | 107.64 | 0.4771 | -657.0 | -431.0 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -5.46 | 219.18 | -27.13 | 108.08 | 0.4794 | 603.0 | 467.8 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -5.68 | 219.10 | -27.21 | 108.47 | 0.4816 | 794.0 | 679.8 | |
| 2.91 | -8.00 | 1.65 | -8.00 | -7.57 | 218.94 | -27.36 | 112.04 | 0.4934 | 789.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -6.20 | 219.00 | -27.31 | 109.44 | 0.4856 | -409.0 | -281.9 | |
| 1.36 | -8.00 | 0.78 | -8.00 | -8.13 | 218.83 | -27.47 | 113.01 | 0.4981 | -193.3 | 999999 | |
| 2.27 | 66.39 | 1.29 | 38.03 | -6.80 | 218.82 | -27.48 | 110.47 | 0.4911 | 837.9 | -68.0 | |
| 0.00 | 4.81 | 0.00 | 2.73 | -6.30 | 218.72 | -27.59 | 109.45 | 0.4901 | 171.0 | 292.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -6.00 | 218.70 | -27.61 | 108.84 | 0.4889 | 643.0 | 548.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -6.52 | 218.63 | -27.67 | 109.82 | 0.4924 | 613.0 | 434.5 | |
| 0.00 | 8.90 | 0.00 | 5.07 | -7.02 | 218.57 | -27.74 | 110.73 | 0.4959 | 713.0 | 602.6 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -6.43 | 218.50 | -27.80 | 109.56 | 0.4939 | 374.0 | 427.3 | |
| 3.00 | -8.00 | 1.71 | -8.00 | -7.46 | 218.36 | -27.94 | 111.42 | 0.5011 | 794.8 | 999999 | |
| 0.00 | 3.54 | 0.00 | 2.06 | -10.75 | 218.00 | -28.30 | 117.08 | 0.5252 | -761.0 | -562.4 | |
| 2.72 | -8.00 | 1.56 | -8.00 | -7.28 | 218.20 | -28.10 | 110.97 | 0.5024 | 608.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -10.50 | 217.85 | -28.45 | 116.53 | 0.5256 | -867.0 | -668.5 | |
| 2.54 | -8.00 | 1.46 | -8.00 | -8.06 | 217.97 | -28.34 | 112.26 | 0.5098 | -992.5 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.06 | -11.01 | 217.66 | -28.65 | 117.25 | 0.5314 | -778.0 | -741.8 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -10.38 | 217.65 | -28.65 | 116.17 | 0.5275 | -617.0 | -548.4 | |
| 4.63 | -8.00 | 2.67 | -8.00 | -8.16 | 217.75 | -28.55 | 112.29 | 0.5134 | -994.0 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.16 | -9.79 | 217.61 | -28.70 | 115.10 | 0.5246 | -350.0 | -395.0 | |
| 0.27 | -8.00 | 0.16 | -8.00 | -7.94 | 217.70 | -28.61 | 111.86 | 0.5130 | -1097.7 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.12 | -10.98 | 217.41 | -28.89 | 117.02 | 0.5345 | -790.0 | -703.8 | |
| 1.36 | -8.00 | 0.79 | -8.00 | -8.01 | 217.55 | -28.75 | 111.88 | 0.5153 | -1116.7 | 999999 | |
| 0.00 | 8.81 | 0.00 | 5.14 | -9.46 | 217.14 | -29.16 | 114.18 | 0.5289 | -783.0 | -616.6 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -8.67 | 217.18 | -29.13 | 112.82 | 0.5241 | -696.0 | -518.5 | |
| 0.00 | 1.91 | 0.00 | 1.10 | -6.06 | 217.34 | -28.97 | 108.14 | 0.5088 | -1073.0 | -862.1 | |
| 0.00 | 2.45 | 0.00 | 1.44 | -9.87 | 216.89 | -29.42 | 114.71 | 0.5347 | -330.0 | -473.3 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -5.92 | 217.13 | -29.17 | 107.74 | 0.5110 | -977.0 | -850.0 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -8.34 | 216.89 | -29.42 | 112.03 | 0.5263 | -852.0 | -633.5 | |
| 0.00 | 2.00 | 0.00 | 1.16 | -8.68 | 216.86 | -29.45 | 112.62 | 0.5285 | -740.0 | -634.1 | |
| 0.00 | 3.36 | 0.00 | 1.95 | -7.44 | 216.93 | -29.38 | 110.43 | 0.5211 | -645.0 | -520.7 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -11.23 | 216.56 | -29.74 | 116.78 | 0.5471 | -753.0 | -605.3 | |
| 0.00 | 2.09 | 0.00 | 1.21 | -6.35 | 216.93 | -29.37 | 108.44 | 0.5159 | -906.0 | -826.6 | |
| 2.00 | 3.36 | 1.15 | 1.94 | -5.64 | 216.94 | -29.37 | 107.12 | 0.5126 | -1065.6 | -924.5 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -11.17 | 216.46 | -29.84 | 116.60 | 0.5481 | -713.0 | -622.9 | |
| 4.00 | 10.72 | 2.33 | 6.25 | -8.26 | 216.61 | -29.69 | 111.69 | 0.5296 | -941.3 | -702.4 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -5.19 | 216.79 | -29.52 | 106.18 | 0.5129 | -776.0 | -577.8 | |
| 0.91 | 3.54 | 0.53 | 2.08 | -9.57 | 216.28 | -30.03 | 113.77 | 0.5413 | -884.5 | -743.7 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -11.34 | 216.05 | -30.26 | 116.58 | 0.5545 | -526.0 | -426.2 | |
| 1.36 | 28.88 | 0.80 | 16.97 | -8.55 | 216.23 | -30.07 | 111.96 | 0.5364 | -973.5 | -677.8 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -9.27 | 216.09 | -30.21 | 113.12 | 0.5421 | -822.0 | -735.5 | |
| 2.27 | 6.72 | 1.34 | 3.97 | -9.65 | 215.98 | -30.32 | 113.69 | 0.5456 | -867.6 | -630.6 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -10.31 | 215.84 | -30.46 | 114.72 | 0.5512 | -779.0 | -712.8 | |
| 16.26 | -71.00 | 9.55 | -71.00 | -8.56 | 215.94 | -30.36 | 111.79 | 0.5403 | -881.0 | 999999 | |
| 6.99 | 34.51 | 4.10 | 20.19 | -7.93 | 216.00 | -30.31 | 110.73 | 0.5365 | -1041.3 | -526.3 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -9.31 | 215.77 | -30.54 | 112.97 | 0.5467 | -678.0 | -566.0 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -10.00 | 215.66 | -30.65 | 114.07 | 0.5519 | -411.0 | -357.3 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -4.75 | 216.03 | -30.27 | 104.97 | 0.5221 | -688.0 | -590.6 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -5.86 | 215.94 | -30.37 | 106.97 | 0.5279 | -833.0 | -713.7 | |
| 0.00 | 2.09 | 0.00 | 1.24 | -9.82 | 215.50 | -30.81 | 113.66 | 0.5531 | -660.0 | -599.7 | |
| 0.00 | 2.63 | 0.00 | 1.55 | -7.79 | 215.62 | -30.69 | 110.24 | 0.5410 | -887.0 | -660.8 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -5.28 | 215.76 | -30.55 | 105.82 | 0.5281 | -859.0 | -623.3 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -5.80 | 215.73 | -30.58 | 106.76 | 0.5306 | -755.0 | -613.4 | |
| 0.00 | 2.36 | 0.00 | 1.38 | -5.07 | 215.63 | -30.68 | 105.36 | 0.5291 | -859.0 | -738.1 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -5.56 | 215.49 | -30.81 | 106.20 | 0.5330 | -702.0 | -647.5 | |
| 0.00 | 2.00 | 0.00 | 1.18 | -7.70 | 215.30 | -31.00 | 109.91 | 0.5450 | -968.0 | -729.1 | |
| 0.00 | 1.91 | 0.00 | 1.12 | -5.84 | 215.40 | -30.90 | 106.67 | 0.5354 | -886.0 | -802.0 | |
| 0.00 | 2.36 | 0.00 | 1.39 | -7.30 | 215.30 | -31.01 | 109.20 | 0.5432 | -777.0 | -496.2 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -9.58 | 215.05 | -31.25 | 112.97 | 0.5577 | -680.0 | -529.7 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -5.10 | 215.37 | -30.93 | 105.31 | 0.5329 | -810.0 | -689.9 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -5.35 | 215.29 | -31.02 | 105.72 | 0.5350 | -717.0 | -657.7 | |
| 0.64 | 126.60 | 0.37 | 75.07 | -6.28 | 215.12 | -31.18 | 107.31 | 0.5412 | -988.7 | -390.1 | |
| 8.99 | -93.00 | 5.31 | -93.00 | -6.23 | 214.77 | -31.54 | 107.04 | 0.5459 | -1161.2 | 999999 | |
| 1.27 | -93.00 | 0.75 | -93.00 | -6.64 | 214.66 | -31.64 | 107.70 | 0.5490 | -941.8 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.24 | -7.42 | 214.60 | -31.70 | 109.01 | 0.5533 | -835.0 | -728.7 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -4.23 | 214.77 | -31.53 | 103.45 | 0.5383 | -464.0 | -556.8 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -8.14 | 214.29 | -32.02 | 110.07 | 0.5609 | -807.0 | -608.2 | |
| 0.73 | -93.00 | 0.43 | -93.00 | -5.90 | 214.43 | -31.88 | 106.29 | 0.5494 | -741.4 | 999999 | |
| 24.52 | -93.00 | 14.55 | -93.00 | -6.40 | 214.36 | -31.95 | 107.12 | 0.5523 | -1039.2 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.24 | -6.90 | 214.21 | -32.09 | 107.91 | 0.5565 | -614.0 | -564.0 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -7.58 | 214.15 | -32.15 | 109.06 | 0.5602 | -748.0 | -582.6 | |
| 0.00 | 1.82 | 0.00 | 1.09 | -7.83 | 214.10 | -32.21 | 109.45 | 0.5621 | -814.0 | -713.5 | |
| 1.36 | -93.00 | 0.81 | -93.00 | -6.20 | 214.01 | -32.30 | 106.59 | 0.5564 | -572.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -8.47 | 213.82 | -32.49 | 110.36 | 0.5688 | -716.0 | -562.1 | |
| 0.64 | 4.54 | 0.38 | 2.72 | -7.28 | 213.85 | -32.45 | 108.38 | 0.5630 | -830.6 | -691.2 | |
| 0.00 | 5.18 | 0.00 | 3.06 | -4.10 | 213.99 | -32.32 | 102.89 | 0.5491 | -636.0 | -614.2 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -7.75 | 213.74 | -32.57 | 109.12 | 0.5666 | -741.0 | -547.5 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -10.86 | 213.37 | -32.94 | 113.98 | 0.5866 | -606.0 | -517.7 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -7.51 | 213.54 | -32.76 | 108.60 | 0.5683 | -532.0 | -424.5 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -4.08 | 213.66 | -32.64 | 102.73 | 0.5537 | -651.0 | -525.8 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -7.70 | 213.34 | -32.96 | 108.82 | 0.5718 | -630.0 | -541.9 | |
| 0.00 | 2.91 | 0.00 | 1.74 | -6.19 | 213.35 | -32.95 | 106.26 | 0.5654 | -749.0 | -558.9 | |
| 0.64 | 3.18 | 0.38 | 1.91 | -6.59 | 213.29 | -33.02 | 106.92 | 0.5679 | -791.1 | -607.8 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -10.09 | 212.91 | -33.40 | 112.48 | 0.5887 | -563.0 | -629.6 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -8.37 | 212.80 | -33.51 | 109.65 | 0.5821 | -466.0 | -380.1 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -10.11 | 212.34 | -33.96 | 112.18 | 0.5961 | -692.0 | -602.1 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -10.35 | 211.71 | -34.59 | 112.20 | 0.6054 | -589.0 | -476.7 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -8.19 | 211.81 | -34.49 | 108.84 | 0.5945 | -467.0 | -438.0 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -10.39 | 211.48 | -34.82 | 112.14 | 0.6086 | -551.0 | -506.0 | |
| 0.00 | 2.72 | 0.00 | 1.66 | -4.91 | 211.81 | -34.49 | 103.44 | 0.5822 | -678.0 | -508.6 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -13.27 | 208.55 | -37.75 | 114.80 | 0.6587 | -504.0 | -384.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
