SDO HMI 2014-07-06 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.36 | 68.09 | 5.01 | 41.03 | 11.41 | 279.59 | 33.84 | 285.39 | 0.5687 | -459.0 | -444.4 | |
|
previous
or next observation for the same group /

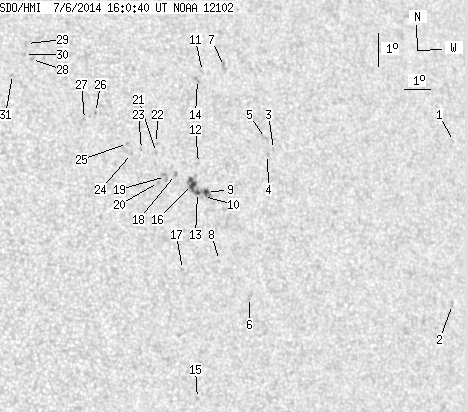

back to the solar disc SDO HMI 2014-07-06 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.38 | 11.85 | 289.95 | 44.20 | 283.42 | 0.7037 | -585.0 | -458.8 | |
| 0.00 | 2.09 | 0.00 | 1.42 | 6.87 | 289.10 | 43.35 | 276.36 | 0.6881 | -600.0 | -444.3 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 11.89 | 282.55 | 36.80 | 285.14 | 0.6095 | -538.0 | -441.1 | |
| 0.00 | 1.63 | 0.00 | 1.02 | 11.75 | 282.30 | 36.55 | 284.97 | 0.6057 | -688.0 | -594.9 | |
| 0.00 | 4.00 | 0.00 | 2.49 | 12.24 | 282.30 | 36.55 | 285.78 | 0.6069 | -536.0 | -522.1 | |
| 0.00 | 3.54 | 0.00 | 2.15 | 7.40 | 281.07 | 35.32 | 277.93 | 0.5810 | -582.0 | -482.6 | |
| 0.00 | 3.90 | 0.00 | 2.41 | 14.52 | 281.10 | 35.35 | 289.90 | 0.5979 | -624.0 | -516.9 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 8.57 | 280.05 | 34.30 | 280.13 | 0.5683 | -635.0 | -537.2 | |
| 2.18 | 21.79 | 1.31 | 13.06 | 10.66 | 279.81 | 34.06 | 283.85 | 0.5691 | -787.0 | -656.8 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 10.54 | 279.69 | 33.94 | 283.68 | 0.5670 | -716.0 | -581.7 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 14.40 | 280.24 | 34.49 | 290.05 | 0.5860 | -606.0 | -493.6 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 11.56 | 279.63 | 33.88 | 285.47 | 0.5689 | -766.0 | -621.6 | |
| 1.00 | -9.00 | 0.60 | -9.00 | 10.67 | 279.48 | 33.73 | 283.97 | 0.5644 | -972.0 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.82 | 14.15 | 280.00 | 34.25 | 289.74 | 0.5820 | -864.0 | -652.6 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 4.39 | 278.92 | 33.17 | 272.74 | 0.5482 | -689.0 | -440.2 | |
| 5.18 | -9.00 | 3.10 | -9.00 | 10.93 | 279.32 | 33.57 | 284.46 | 0.5629 | -979.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 8.34 | 278.66 | 32.91 | 280.00 | 0.5480 | -723.0 | -575.5 | |
| 0.00 | 1.82 | 0.00 | 1.08 | 11.25 | 278.73 | 32.98 | 285.22 | 0.5555 | -867.0 | -761.2 | |
| 0.00 | 3.18 | 0.00 | 1.88 | 11.21 | 278.36 | 32.61 | 285.26 | 0.5500 | -744.0 | -753.3 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 11.03 | 278.08 | 32.33 | 285.04 | 0.5456 | -883.0 | -708.2 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 11.95 | 278.12 | 32.37 | 286.69 | 0.5490 | -826.0 | -611.3 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 12.23 | 278.16 | 32.41 | 287.17 | 0.5504 | -425.0 | -416.3 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 12.06 | 277.59 | 31.84 | 287.09 | 0.5418 | -720.0 | -492.2 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 11.95 | 277.20 | 31.45 | 287.04 | 0.5360 | -768.0 | -603.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 12.26 | 277.10 | 31.35 | 287.66 | 0.5356 | -620.0 | -467.9 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 13.26 | 276.07 | 30.32 | 289.95 | 0.5248 | 714.0 | 613.8 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 13.05 | 275.64 | 29.89 | 289.78 | 0.5180 | 772.0 | 680.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 14.97 | 274.00 | 28.25 | 294.31 | 0.5038 | 705.0 | 658.8 | |
| 0.00 | 2.18 | 0.00 | 1.25 | 15.47 | 273.90 | 28.15 | 295.32 | 0.5050 | 718.0 | 537.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 15.13 | 273.78 | 28.03 | 294.76 | 0.5015 | 795.0 | 599.6 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 14.52 | 273.26 | 27.51 | 293.95 | 0.4913 | 799.0 | 618.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
