SDO HMI 2014-07-06 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.67 | 721.70 | 71.65 | 401.96 | -11.85 | 268.29 | 22.54 | 235.31 | 0.4587 | 206.9 | 65.0 | |
|
previous
or next observation for the same group /

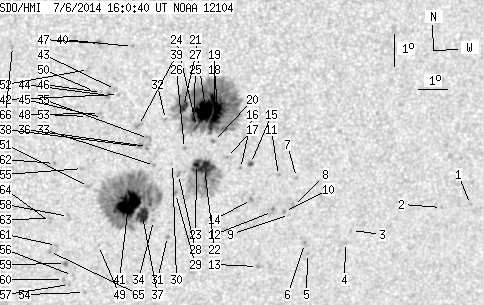

back to the solar disc SDO HMI 2014-07-06 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.85 | -13.60 | 278.96 | 33.22 | 241.96 | 0.6055 | 666.0 | 562.4 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -13.65 | 277.89 | 32.14 | 241.12 | 0.5926 | 725.0 | 595.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -14.28 | 274.70 | 28.95 | 237.63 | 0.5574 | 652.0 | 466.6 | |
| 0.00 | 1.91 | 0.00 | 1.14 | -14.66 | 274.53 | 28.78 | 236.90 | 0.5582 | 516.0 | 406.9 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -14.97 | 273.22 | 27.47 | 235.22 | 0.5446 | 675.0 | 612.4 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -14.65 | 273.07 | 27.32 | 235.59 | 0.5403 | 749.0 | 671.9 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -12.53 | 272.52 | 26.77 | 238.54 | 0.5175 | 603.0 | 522.4 | |
| 0.00 | 2.63 | 0.00 | 1.53 | -13.42 | 272.52 | 26.77 | 237.05 | 0.5241 | 598.0 | 615.1 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -13.70 | 272.41 | 26.66 | 236.49 | 0.5250 | 444.0 | 385.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -13.60 | 272.23 | 26.48 | 236.47 | 0.5219 | 853.0 | 747.0 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -12.45 | 271.89 | 26.14 | 238.08 | 0.5088 | 792.0 | 569.2 | |
| 0.00 | 3.09 | 0.00 | 1.78 | -13.59 | 271.81 | 26.06 | 236.08 | 0.5165 | 782.0 | 715.4 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -15.34 | 271.50 | 25.75 | 232.94 | 0.5270 | 649.0 | 572.9 | |
| 0.00 | 2.00 | 0.00 | 1.14 | -13.19 | 271.03 | 25.28 | 235.98 | 0.5036 | 924.0 | 787.6 | |
| 1.09 | 2.36 | 0.62 | 1.34 | -12.04 | 270.87 | 25.12 | 237.80 | 0.4927 | 822.4 | 676.3 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -12.19 | 270.54 | 24.79 | 237.20 | 0.4896 | 758.0 | 646.1 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -11.83 | 270.03 | 24.28 | 237.31 | 0.4802 | 527.0 | 449.9 | |
| 8.63 | 284.40 | 4.81 | 158.36 | -10.25 | 269.59 | 23.84 | 239.77 | 0.4621 | 1178.3 | 441.4 | |
| 9.81 | -18.00 | 5.48 | -18.00 | -10.59 | 269.51 | 23.76 | 239.05 | 0.4637 | 933.4 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -11.31 | 269.54 | 23.79 | 237.73 | 0.4697 | 782.0 | 653.0 | |
| 33.14 | -18.00 | 18.44 | -18.00 | -10.30 | 269.19 | 23.44 | 239.25 | 0.4572 | 1379.5 | 999999 | |
| 10.99 | 90.81 | 6.17 | 51.10 | -12.13 | 269.31 | 23.56 | 235.99 | 0.4733 | 942.8 | 231.6 | |
| 2.72 | -22.00 | 1.53 | -22.00 | -12.02 | 269.03 | 23.28 | 235.87 | 0.4688 | 1157.0 | 999999 | |
| 2.36 | -18.00 | 1.31 | -18.00 | -10.82 | 268.92 | 23.17 | 237.97 | 0.4578 | 729.3 | 999999 | |
| 1.82 | -18.00 | 1.01 | -18.00 | -10.60 | 268.80 | 23.05 | 238.26 | 0.4544 | 1157.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -11.51 | 268.57 | 22.82 | 236.30 | 0.4587 | 758.0 | 584.8 | |
| 6.17 | -18.00 | 3.42 | -18.00 | -10.18 | 268.44 | 22.69 | 238.66 | 0.4463 | 1268.9 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.42 | -12.33 | 268.44 | 22.69 | 234.65 | 0.4640 | 790.0 | 614.9 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -12.93 | 268.40 | 22.65 | 233.53 | 0.4686 | 551.0 | 451.5 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -11.97 | 268.21 | 22.46 | 235.02 | 0.4580 | 543.0 | 440.0 | |
| 0.00 | 1.91 | 0.00 | 1.08 | -14.29 | 268.26 | 22.51 | 231.01 | 0.4793 | -844.0 | -631.6 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -10.58 | 267.86 | 22.11 | 237.25 | 0.4418 | 680.0 | 536.7 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -12.02 | 267.61 | 21.86 | 234.21 | 0.4507 | -862.0 | -639.8 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -13.77 | 267.73 | 21.98 | 231.25 | 0.4681 | -674.0 | -539.4 | |
| 0.00 | 3.27 | 0.00 | 1.80 | -11.16 | 267.34 | 21.59 | 235.49 | 0.4398 | 726.0 | 591.5 | |
| 0.00 | 2.91 | 0.00 | 1.60 | -11.41 | 267.32 | 21.57 | 235.00 | 0.4418 | 446.0 | 330.6 | |
| 11.80 | 249.35 | 6.59 | 138.26 | -13.60 | 267.35 | 21.60 | 231.06 | 0.4618 | -938.0 | -522.3 | |
| 0.00 | 3.36 | 0.00 | 1.85 | -11.41 | 267.09 | 21.34 | 234.72 | 0.4388 | 330.0 | 450.0 | |
| 0.00 | 4.27 | 0.00 | 2.34 | -10.75 | 266.97 | 21.22 | 235.85 | 0.4315 | 940.0 | 732.9 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -8.27 | 266.62 | 20.87 | 240.53 | 0.4066 | 882.0 | 704.4 | |
| 40.14 | -37.00 | 22.27 | -37.00 | -13.21 | 266.84 | 21.09 | 231.09 | 0.4520 | -1349.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -9.76 | 266.24 | 20.49 | 236.92 | 0.4134 | 640.0 | 517.6 | |
| 0.00 | 2.18 | 0.00 | 1.18 | -9.60 | 266.13 | 20.38 | 237.11 | 0.4106 | 741.0 | 649.6 | |
| 0.00 | 3.54 | 0.00 | 1.92 | -9.78 | 265.91 | 20.16 | 236.45 | 0.4093 | 963.0 | 772.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -10.47 | 265.76 | 20.01 | 234.85 | 0.4132 | 586.0 | 470.6 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -9.68 | 265.68 | 19.93 | 236.35 | 0.4053 | 837.0 | 688.7 | |
| 0.00 | 3.00 | 0.00 | 1.61 | -8.15 | 265.53 | 19.78 | 239.47 | 0.3905 | 1042.0 | 932.4 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -10.34 | 265.65 | 19.90 | 234.97 | 0.4107 | 568.0 | 577.8 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -14.53 | 265.95 | 20.20 | 227.62 | 0.4544 | -415.0 | -398.1 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -9.64 | 265.44 | 19.69 | 236.12 | 0.4019 | 837.0 | 641.4 | |
| 0.00 | 2.72 | 0.00 | 1.49 | -12.64 | 265.45 | 19.70 | 230.25 | 0.4297 | -761.0 | -540.8 | |
| 0.00 | 2.00 | 0.00 | 1.08 | -8.95 | 265.21 | 19.46 | 237.28 | 0.3927 | 535.0 | 442.0 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -10.42 | 265.26 | 19.51 | 234.26 | 0.4064 | 621.0 | 437.4 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -16.03 | 265.63 | 19.88 | 224.72 | 0.4664 | -868.0 | -552.6 | |
| 0.00 | 1.91 | 0.00 | 1.04 | -12.06 | 265.21 | 19.46 | 230.98 | 0.4211 | -823.0 | -616.6 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -15.47 | 265.17 | 19.42 | 224.95 | 0.4554 | -583.0 | -588.0 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -15.76 | 265.10 | 19.35 | 224.39 | 0.4577 | -671.0 | -534.8 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -13.58 | 264.87 | 19.12 | 227.71 | 0.4321 | -755.0 | -648.8 | |
| 0.00 | 2.27 | 0.00 | 1.26 | -15.08 | 264.90 | 19.15 | 225.20 | 0.4482 | -924.0 | -708.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -15.59 | 264.88 | 19.13 | 224.33 | 0.4535 | -834.0 | -682.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -14.49 | 264.55 | 18.80 | 225.65 | 0.4381 | -913.0 | -728.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -11.88 | 264.28 | 18.53 | 229.95 | 0.4079 | -979.0 | -857.3 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -13.63 | 264.27 | 18.52 | 226.73 | 0.4258 | -688.0 | -417.6 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -13.75 | 264.28 | 18.53 | 226.53 | 0.4272 | -896.0 | -679.0 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -14.68 | 264.33 | 18.58 | 225.00 | 0.4377 | -831.0 | -601.3 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -8.18 | 262.70 | 16.95 | 235.40 | 0.3521 | -750.0 | -548.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
