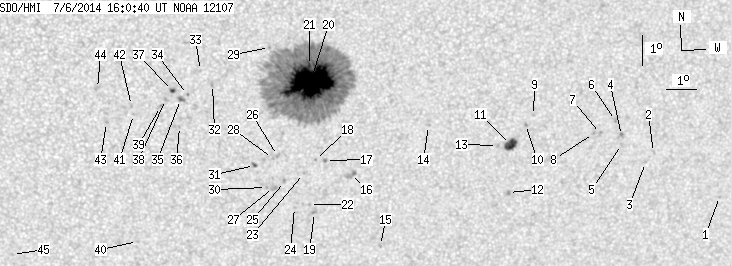

SDO HMI 2014-07-06 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.78 | 637.47 | 56.64 | 347.88 | -19.17 | 255.75 | 10.00 | 202.99 | 0.4199 | 740.3 | 348.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.66 | -23.02 | 269.99 | 24.24 | 220.60 | 0.5828 | -631.0 | -552.5 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -21.47 | 267.36 | 21.61 | 219.39 | 0.5422 | 517.0 | 511.0 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -21.80 | 267.13 | 21.38 | 218.69 | 0.5436 | 670.0 | 469.0 | |
| 0.00 | 2.81 | 0.00 | 1.64 | -20.87 | 266.15 | 20.40 | 218.58 | 0.5243 | 821.0 | 698.6 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -21.17 | 266.19 | 20.44 | 218.26 | 0.5281 | 696.0 | 546.1 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -20.36 | 265.87 | 20.12 | 218.86 | 0.5161 | 743.0 | 541.6 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -20.79 | 265.41 | 19.66 | 217.68 | 0.5166 | 795.0 | 667.9 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -20.78 | 265.17 | 19.42 | 217.35 | 0.5143 | 718.0 | 576.4 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -20.13 | 263.03 | 17.28 | 215.05 | 0.4876 | 829.0 | 680.5 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -20.43 | 262.79 | 17.04 | 214.32 | 0.4891 | 864.0 | 725.4 | |
| 8.35 | 11.35 | 4.75 | 6.46 | -21.09 | 262.36 | 16.61 | 212.85 | 0.4935 | 913.4 | 611.8 | |
| 0.00 | 1.91 | 0.00 | 1.10 | -22.71 | 262.48 | 16.73 | 211.20 | 0.5147 | 789.0 | 631.5 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -21.11 | 261.92 | 16.17 | 212.13 | 0.4902 | 698.0 | 596.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -20.40 | 259.51 | 13.76 | 208.97 | 0.4623 | -677.0 | -532.9 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -24.45 | 258.28 | 12.53 | 202.93 | 0.5087 | -708.0 | -591.9 | |
| 0.00 | 6.45 | 0.00 | 3.61 | -22.01 | 257.04 | 11.29 | 202.94 | 0.4675 | -841.0 | -758.3 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -21.53 | 256.17 | 10.42 | 201.76 | 0.4555 | -1001.0 | -823.9 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -21.49 | 255.83 | 10.08 | 201.16 | 0.4530 | -844.0 | -718.0 | |
| 0.00 | 2.09 | 0.00 | 1.18 | -23.29 | 255.93 | 10.18 | 199.88 | 0.4794 | -916.0 | -750.7 | |
| 91.62 | 556.46 | 49.82 | 302.55 | -18.89 | 255.50 | 9.75 | 202.91 | 0.4134 | 1467.5 | 424.2 | |
| 1.36 | -20.00 | 0.74 | -20.00 | -18.36 | 255.44 | 9.69 | 203.31 | 0.4054 | 1476.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -23.01 | 255.74 | 9.99 | 199.75 | 0.4744 | -823.0 | -595.8 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -21.96 | 255.46 | 9.71 | 200.07 | 0.4578 | 567.0 | 477.0 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -23.11 | 255.24 | 9.49 | 198.77 | 0.4733 | -460.0 | -469.3 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -22.22 | 254.85 | 9.10 | 198.70 | 0.4584 | -925.0 | -694.2 | |
| 0.00 | 2.00 | 0.00 | 1.10 | -21.34 | 254.56 | 8.81 | 198.82 | 0.4441 | 690.0 | 587.0 | |
| 0.00 | 3.27 | 0.00 | 1.82 | -22.42 | 254.49 | 8.74 | 197.88 | 0.4596 | -887.0 | -777.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -21.44 | 254.40 | 8.65 | 198.43 | 0.4447 | 489.0 | 440.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.76 | 254.11 | 8.36 | 200.98 | 0.3884 | 949.0 | 760.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.42 | 254.26 | 8.51 | 197.43 | 0.4585 | -810.0 | -633.8 | |
| 0.73 | 2.36 | 0.40 | 1.30 | -21.67 | 253.82 | 8.07 | 197.10 | 0.4454 | 697.0 | 566.3 | |
| 0.00 | 1.91 | 0.00 | 1.03 | -18.95 | 252.31 | 6.56 | 195.85 | 0.3975 | -871.0 | -741.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.49 | 251.91 | 6.16 | 195.25 | 0.3886 | -613.0 | -482.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -19.28 | 251.51 | 5.76 | 193.80 | 0.3992 | -775.0 | -649.8 | |
| 0.54 | 3.72 | 0.29 | 2.01 | -19.44 | 251.29 | 5.54 | 193.19 | 0.4009 | 724.7 | 489.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -20.34 | 251.29 | 5.54 | 192.66 | 0.4149 | -519.0 | -459.9 | |
| 1.18 | 2.36 | 0.64 | 1.27 | -19.14 | 251.02 | 5.27 | 192.74 | 0.3953 | -949.9 | -798.2 | |
| 0.00 | 2.18 | 0.00 | 1.18 | -19.44 | 250.81 | 5.06 | 192.07 | 0.3992 | -913.0 | -626.2 | |
| 0.00 | 2.36 | 0.00 | 1.28 | -19.67 | 250.65 | 4.90 | 191.58 | 0.4023 | -806.0 | -611.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -24.23 | 250.03 | 4.28 | 188.35 | 0.4712 | -621.0 | -547.6 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -19.93 | 249.78 | 4.03 | 189.46 | 0.4038 | -768.0 | -560.5 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -19.63 | 249.71 | 3.96 | 189.42 | 0.3989 | -905.0 | -839.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.19 | 248.91 | 3.16 | 187.35 | 0.4059 | -737.0 | -576.5 | |
| 0.00 | 2.27 | 0.00 | 1.22 | -19.06 | 248.60 | 2.85 | 186.99 | 0.3873 | -763.0 | -648.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -24.66 | 245.85 | 0.10 | 180.20 | 0.4730 | -578.0 | -485.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
