SDO HMI 2014-07-06 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 348.68 | 1897.46 | 177.23 | 964.39 | -7.29 | 239.30 | -6.45 | 150.29 | 0.2229 | 83.2 | 47.7 | |
|
previous
or next observation for the same group /

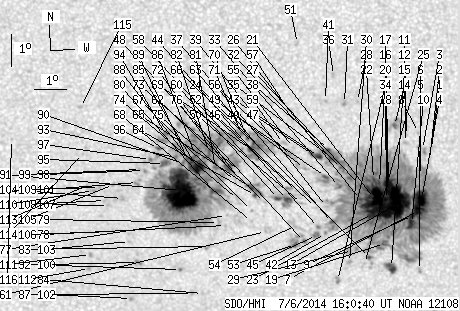

back to the solar disc SDO HMI 2014-07-06 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.72 | 0.00 | 1.37 | -5.93 | 243.41 | -2.34 | 166.04 | 0.1687 | 752.0 | 531.7 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -6.27 | 243.35 | -2.40 | 166.16 | 0.1747 | 231.0 | 147.2 | |
| 0.00 | 4.63 | 0.00 | 2.33 | -5.97 | 243.14 | -2.61 | 164.51 | 0.1705 | 691.0 | 750.7 | |
| 21.70 | 934.84 | 10.96 | 472.95 | -7.51 | 243.10 | -2.65 | 166.43 | 0.1965 | 1473.9 | 489.4 | |
| 2.63 | -4.00 | 1.33 | -4.00 | -8.04 | 243.03 | -2.72 | 166.73 | 0.2055 | 1065.0 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -9.73 | 243.02 | -2.73 | 168.35 | 0.2337 | -939.0 | -755.1 | |
| 9.53 | -4.00 | 4.82 | -4.00 | -7.86 | 243.00 | -2.75 | 166.38 | 0.2025 | 1295.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -5.44 | 243.02 | -2.73 | 162.93 | 0.1623 | -534.0 | -316.4 | |
| 4.00 | -4.00 | 2.02 | -4.00 | -8.01 | 242.82 | -2.93 | 165.69 | 0.2059 | 1053.4 | 999999 | |
| 6.27 | -4.00 | 3.17 | -4.00 | -8.26 | 242.78 | -2.97 | 165.83 | 0.2102 | 1002.2 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.36 | -5.53 | 242.65 | -3.10 | 160.98 | 0.1658 | 448.0 | 278.0 | |
| 0.00 | 2.27 | 0.00 | 1.14 | -5.75 | 242.62 | -3.13 | 161.22 | 0.1695 | 867.0 | 486.6 | |
| 54.39 | -4.00 | 27.51 | -4.00 | -7.64 | 242.36 | -3.39 | 163.04 | 0.2019 | 1505.0 | 999999 | |
| 1.09 | 11.71 | 0.55 | 5.88 | -5.23 | 242.29 | -3.46 | 158.24 | 0.1631 | -611.2 | -347.1 | |
| 6.54 | 10.08 | 3.33 | 5.14 | -9.63 | 242.15 | -3.60 | 164.71 | 0.2356 | 991.9 | 715.4 | |
| 8.08 | -4.00 | 4.08 | -4.00 | -7.02 | 242.09 | -3.66 | 160.75 | 0.1932 | 1425.8 | 999999 | |
| 2.54 | -4.00 | 1.28 | -4.00 | -7.27 | 242.05 | -3.70 | 161.01 | 0.1974 | 1648.0 | 999999 | |
| 3.18 | -4.00 | 1.61 | -4.00 | -7.52 | 242.02 | -3.73 | 161.26 | 0.2016 | 1796.7 | 999999 | |
| 2.91 | -4.00 | 1.48 | -4.00 | -8.89 | 241.94 | -3.81 | 162.92 | 0.2243 | 893.2 | 999999 | |
| 0.27 | -4.00 | 0.14 | -4.00 | -7.02 | 241.81 | -3.94 | 159.41 | 0.1948 | 1350.7 | 999999 | |
| 38.59 | -4.00 | 19.53 | -4.00 | -7.49 | 241.65 | -4.10 | 159.50 | 0.2033 | 1410.9 | 999999 | |
| 1.09 | -4.00 | 0.55 | -4.00 | -6.90 | 241.63 | -4.12 | 158.31 | 0.1940 | 1179.7 | 999999 | |
| 9.81 | -4.00 | 4.97 | -4.00 | -7.95 | 241.58 | -4.17 | 159.99 | 0.2112 | 1121.7 | 999999 | |
| 1.09 | 5.63 | 0.56 | 2.87 | -9.32 | 241.47 | -4.28 | 161.58 | 0.2339 | 819.8 | 446.2 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -9.51 | 241.32 | -4.43 | 161.22 | 0.2378 | 276.0 | 217.1 | |
| 1.63 | -4.00 | 0.83 | -4.00 | -7.52 | 241.22 | -4.53 | 157.61 | 0.2065 | 1063.5 | 999999 | |
| 1.27 | -4.00 | 0.64 | -4.00 | -7.08 | 241.22 | -4.53 | 156.79 | 0.1996 | 995.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -4.49 | 241.16 | -4.59 | 149.94 | 0.1601 | 819.0 | 659.5 | |
| 0.00 | 8.17 | 0.00 | 4.16 | -9.11 | 240.95 | -4.80 | 159.18 | 0.2334 | 277.0 | 283.1 | |
| 0.00 | 2.27 | 0.00 | 1.16 | -9.48 | 240.85 | -4.90 | 159.36 | 0.2400 | 446.0 | 286.6 | |
| 0.00 | 2.09 | 0.00 | 1.05 | -4.55 | 240.76 | -4.99 | 148.03 | 0.1646 | 1041.0 | 939.0 | |
| 1.45 | -4.00 | 0.73 | -4.00 | -6.56 | 240.65 | -5.10 | 153.01 | 0.1957 | 1070.6 | 999999 | |
| 0.73 | -4.00 | 0.37 | -4.00 | -7.12 | 240.58 | -5.17 | 153.96 | 0.2048 | 944.0 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.53 | -10.05 | 240.47 | -5.28 | 158.76 | 0.2512 | 931.0 | 810.1 | |
| 4.54 | -4.00 | 2.29 | -4.00 | -6.28 | 240.40 | -5.35 | 151.24 | 0.1934 | 1067.7 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.09 | -3.70 | 240.43 | -5.32 | 143.28 | 0.1556 | 836.0 | 687.2 | |
| 1.63 | -4.00 | 0.83 | -4.00 | -8.24 | 240.35 | -5.40 | 155.26 | 0.2237 | 837.0 | 999999 | |
| 1.18 | -4.00 | 0.60 | -4.00 | -5.97 | 240.25 | -5.50 | 149.76 | 0.1901 | -534.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.74 | 240.17 | -5.58 | 153.55 | 0.2174 | -287.0 | -256.9 | |
| 1.82 | -4.00 | 0.92 | -4.00 | -6.81 | 240.15 | -5.60 | 151.41 | 0.2034 | 800.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -4.47 | 240.17 | -5.58 | 144.82 | 0.1689 | 927.0 | 821.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.58 | 240.12 | -5.63 | 155.02 | 0.2306 | 912.0 | 805.4 | |
| 3.09 | -4.00 | 1.56 | -4.00 | -6.19 | 239.94 | -5.81 | 148.96 | 0.1960 | 1046.0 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -8.39 | 239.91 | -5.84 | 153.84 | 0.2294 | 920.0 | 656.9 | |
| 1.82 | 4.27 | 0.93 | 2.17 | -8.64 | 239.84 | -5.91 | 154.07 | 0.2337 | 1016.5 | 677.4 | |
| 0.00 | 2.00 | 0.00 | 1.01 | -7.77 | 239.83 | -5.92 | 152.25 | 0.2206 | -11.0 | -94.1 | |
| 0.27 | -4.00 | 0.14 | -4.00 | -6.13 | 239.76 | -5.99 | 148.00 | 0.1968 | 849.0 | 999999 | |
| 0.82 | 16.98 | 0.42 | 8.67 | -8.83 | 239.47 | -6.28 | 153.02 | 0.2394 | 1065.4 | 383.2 | |
| 0.00 | 3.18 | 0.00 | 1.61 | -6.57 | 239.50 | -6.25 | 148.09 | 0.2054 | 880.0 | 612.9 | |
| 0.00 | 3.54 | 0.00 | 1.80 | -7.65 | 239.40 | -6.35 | 150.28 | 0.2223 | -655.0 | -418.4 | |
| 0.00 | 2.18 | 0.00 | 1.09 | -2.72 | 239.33 | -6.42 | 133.79 | 0.1554 | 173.0 | 291.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.28 | 239.25 | -6.50 | 148.84 | 0.2181 | -366.0 | -355.7 | |
| 1.82 | -48.00 | 0.93 | -48.00 | -8.93 | 239.19 | -6.56 | 152.18 | 0.2430 | 747.8 | 999999 | |
| 0.00 | 8.99 | 0.00 | 4.58 | -8.34 | 239.20 | -6.55 | 151.02 | 0.2341 | 306.0 | 32.0 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -5.92 | 239.17 | -6.58 | 144.95 | 0.1992 | 533.0 | 384.2 | |
| 0.00 | 12.44 | 0.00 | 6.29 | -6.20 | 239.11 | -6.64 | 145.48 | 0.2038 | 341.0 | 246.0 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -4.75 | 239.03 | -6.72 | 140.66 | 0.1847 | 791.0 | 711.8 | |
| 3.90 | 24.52 | 1.98 | 12.46 | -7.53 | 238.96 | -6.79 | 148.35 | 0.2242 | -974.0 | -262.9 | |
| 0.00 | 3.18 | 0.00 | 1.61 | -5.80 | 238.87 | -6.88 | 143.35 | 0.2006 | 165.0 | 264.3 | |
| 2.09 | -58.00 | 1.06 | -58.00 | -7.50 | 238.69 | -7.06 | 147.24 | 0.2263 | -1054.7 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.32 | -8.53 | 238.26 | -7.49 | 148.10 | 0.2449 | 731.0 | 582.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.63 | 238.25 | -7.50 | 145.98 | 0.2322 | -660.0 | -505.3 | |
| 1.63 | 716.00 | 0.83 | 365.80 | -5.89 | 238.09 | -7.66 | 140.69 | 0.2101 | -1160.4 | -457.5 | |
| 1.36 | 19.16 | 0.69 | 9.75 | -7.41 | 237.98 | -7.77 | 144.47 | 0.2319 | -796.1 | -524.4 | |
| 5.72 | -64.00 | 2.91 | -64.00 | -7.23 | 237.92 | -7.83 | 143.79 | 0.2299 | -965.8 | 999999 | |
| 1.54 | -63.00 | 0.78 | -63.00 | -5.80 | 237.94 | -7.81 | 139.85 | 0.2106 | -1221.3 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -7.88 | 237.84 | -7.91 | 145.17 | 0.2397 | -783.0 | -661.9 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -8.22 | 237.83 | -7.92 | 145.95 | 0.2445 | -718.0 | -430.7 | |
| 2.63 | -63.00 | 1.34 | -63.00 | -5.99 | 237.85 | -7.90 | 140.07 | 0.2141 | -1295.8 | 999999 | |
| 0.73 | -63.00 | 0.37 | -63.00 | -5.65 | 237.76 | -7.99 | 138.71 | 0.2106 | -1095.4 | 999999 | |
| 0.82 | -63.00 | 0.41 | -63.00 | -5.50 | 237.57 | -8.18 | 137.58 | 0.2108 | 637.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.95 | 237.52 | -8.23 | 141.69 | 0.2303 | -785.0 | -643.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.67 | 237.49 | -8.26 | 140.84 | 0.2269 | -734.0 | -588.4 | |
| 0.00 | 4.81 | 0.00 | 2.45 | -7.54 | 237.41 | -8.34 | 142.90 | 0.2393 | -647.0 | -515.3 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -6.98 | 237.36 | -8.39 | 141.26 | 0.2324 | -929.0 | -656.5 | |
| 5.36 | -63.00 | 2.73 | -63.00 | -6.55 | 237.15 | -8.60 | 139.36 | 0.2290 | -1004.4 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -8.04 | 237.06 | -8.69 | 143.00 | 0.2497 | -722.0 | -563.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -8.35 | 237.02 | -8.73 | 143.63 | 0.2543 | -747.0 | -588.3 | |
| 0.00 | 4.18 | 0.00 | 2.14 | -8.26 | 236.81 | -8.94 | 142.74 | 0.2552 | -698.0 | -446.7 | |
| 7.54 | -63.00 | 3.85 | -63.00 | -7.33 | 236.74 | -9.01 | 140.16 | 0.2437 | -541.6 | 999999 | |
| 1.63 | -63.00 | 0.83 | -63.00 | -6.55 | 236.75 | -9.00 | 138.06 | 0.2336 | -1080.4 | 999999 | |
| 5.36 | -63.00 | 2.73 | -63.00 | -6.09 | 236.57 | -9.18 | 136.14 | 0.2299 | -1253.2 | 999999 | |
| 0.00 | 3.09 | 0.00 | 1.59 | -9.01 | 236.44 | -9.31 | 143.39 | 0.2690 | -669.0 | -409.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -10.48 | 236.24 | -9.51 | 145.91 | 0.2910 | -737.0 | -496.4 | |
| 13.89 | -63.00 | 7.09 | -63.00 | -6.56 | 236.19 | -9.56 | 136.36 | 0.2401 | -1406.8 | 999999 | |
| 1.82 | -63.00 | 0.93 | -63.00 | -6.19 | 236.14 | -9.61 | 135.10 | 0.2362 | -1106.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -10.49 | 235.93 | -9.82 | 145.05 | 0.2941 | -991.0 | -749.2 | |
| 4.36 | -63.00 | 2.22 | -63.00 | -6.38 | 236.01 | -9.74 | 135.27 | 0.2400 | -1195.4 | 999999 | |
| 1.54 | -63.00 | 0.79 | -63.00 | -6.28 | 235.89 | -9.86 | 134.64 | 0.2404 | -1073.4 | 999999 | |
| 1.00 | -63.00 | 0.51 | -63.00 | -6.44 | 235.73 | -10.02 | 134.65 | 0.2442 | -1092.2 | 999999 | |
| 82.36 | -63.00 | 42.19 | -63.00 | -7.28 | 235.65 | -10.10 | 136.78 | 0.2553 | -1416.3 | 999999 | |
| 0.36 | 2.00 | 0.19 | 1.03 | -9.74 | 235.58 | -10.17 | 142.54 | 0.2875 | 815.0 | 588.7 | |
| 0.64 | -63.00 | 0.32 | -63.00 | -6.26 | 235.51 | -10.24 | 133.50 | 0.2446 | -1078.0 | 999999 | |
| 1.09 | 13.98 | 0.56 | 7.14 | -5.52 | 235.22 | -10.53 | 130.40 | 0.2400 | -1036.1 | -842.2 | |
| 3.90 | -63.00 | 2.00 | -63.00 | -6.45 | 235.17 | -10.58 | 133.10 | 0.2511 | -1092.8 | 999999 | |
| 1.09 | -63.00 | 0.56 | -63.00 | -5.98 | 234.99 | -10.76 | 131.25 | 0.2481 | -963.7 | 999999 | |
| 0.54 | -63.00 | 0.28 | -63.00 | -6.33 | 234.73 | -11.02 | 131.61 | 0.2552 | -908.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -6.67 | 234.54 | -11.21 | 132.10 | 0.2615 | -912.0 | -806.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -6.64 | 234.41 | -11.34 | 131.70 | 0.2627 | -698.0 | -591.5 | |
| 0.00 | 3.81 | 0.00 | 1.98 | -9.53 | 234.26 | -11.49 | 138.68 | 0.2988 | -1053.0 | -810.4 | |
| 0.00 | 3.63 | 0.00 | 1.87 | -7.04 | 234.31 | -11.44 | 132.58 | 0.2686 | -869.0 | -817.5 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -10.66 | 234.00 | -11.75 | 140.47 | 0.3159 | -964.0 | -703.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -8.88 | 234.00 | -11.75 | 136.54 | 0.2938 | -733.0 | -575.8 | |
| 0.00 | 2.36 | 0.00 | 1.22 | -7.54 | 233.82 | -11.93 | 132.75 | 0.2802 | -951.0 | -872.5 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -7.11 | 233.55 | -12.20 | 130.95 | 0.2788 | -894.0 | -737.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -8.57 | 233.48 | -12.27 | 134.55 | 0.2963 | -643.0 | -587.1 | |
| 0.00 | 2.27 | 0.00 | 1.17 | -7.77 | 233.38 | -12.37 | 132.29 | 0.2883 | -817.0 | -665.9 | |
| 0.00 | 1.91 | 0.00 | 0.99 | -7.61 | 233.29 | -12.46 | 131.68 | 0.2877 | -786.0 | -557.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -7.21 | 233.11 | -12.64 | 130.21 | 0.2855 | -883.0 | -724.7 | |
| 0.00 | 2.45 | 0.00 | 1.27 | -7.31 | 232.92 | -12.83 | 130.04 | 0.2890 | -980.0 | -741.9 | |
| 0.00 | 2.09 | 0.00 | 1.09 | -9.30 | 232.75 | -13.00 | 134.64 | 0.3133 | -895.0 | -730.3 | |
| 0.00 | 2.00 | 0.00 | 1.04 | -9.74 | 232.70 | -13.05 | 135.53 | 0.3190 | -741.0 | -559.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -7.15 | 232.70 | -13.05 | 129.16 | 0.2902 | -742.0 | -625.7 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -6.17 | 232.60 | -13.15 | 126.19 | 0.2814 | -707.0 | -646.2 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -4.75 | 232.57 | -13.18 | 121.83 | 0.2685 | -900.0 | -646.8 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -5.76 | 230.37 | -15.38 | 120.91 | 0.3089 | -716.0 | -531.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
