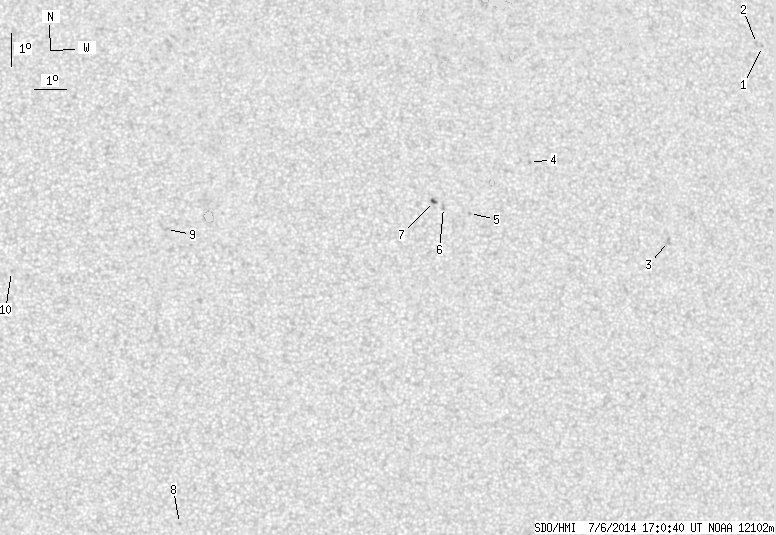

SDO HMI 2014-07-06 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.18 | 18.72 | 0.61 | 9.77 | 8.09 | 261.33 | 16.13 | 288.95 | 0.2919 | 804.8 | 625.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.45 | 12.93 | 270.72 | 25.52 | 292.08 | 0.4551 | 625.0 | 535.8 | |
| 0.00 | 1.82 | 0.00 | 1.01 | 13.03 | 270.52 | 25.33 | 292.42 | 0.4527 | 816.0 | 654.4 | |
| 0.00 | 4.54 | 0.00 | 2.43 | 7.03 | 267.07 | 21.87 | 280.23 | 0.3773 | 845.0 | 585.9 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 9.54 | 262.65 | 17.46 | 290.19 | 0.3166 | 870.0 | 715.0 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 8.02 | 260.65 | 15.46 | 287.20 | 0.2775 | 760.0 | 595.7 | |
| 0.00 | 2.18 | 0.00 | 1.12 | 8.21 | 259.83 | 14.64 | 288.76 | 0.2653 | 794.0 | 523.3 | |
| 1.18 | 3.27 | 0.61 | 1.68 | 8.40 | 259.52 | 14.33 | 289.80 | 0.2613 | 880.2 | 683.1 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -1.32 | 251.48 | 6.29 | 232.87 | 0.1380 | 844.0 | 639.7 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 7.64 | 251.15 | 5.95 | 305.53 | 0.1269 | 952.0 | 761.0 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 6.39 | 246.37 | 1.17 | 338.32 | 0.0553 | 691.0 | 585.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
