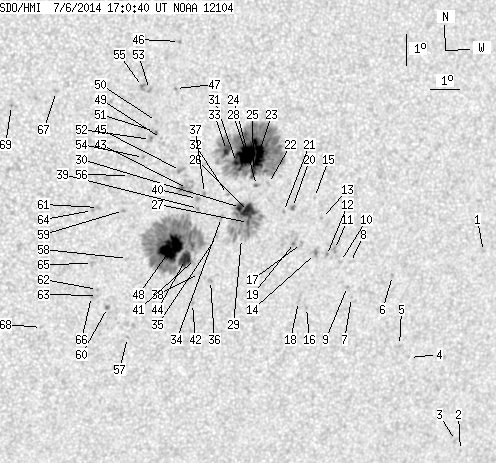

SDO HMI 2014-07-06 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.47 | 700.25 | 70.19 | 391.99 | -11.90 | 268.37 | 23.18 | 235.96 | 0.4672 | 238.0 | 67.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.67 | -13.67 | 277.93 | 32.74 | 241.51 | 0.6001 | 675.0 | 538.1 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -20.15 | 278.33 | 33.14 | 232.69 | 0.6475 | 267.0 | 287.2 | |
| 0.00 | 2.36 | 0.00 | 1.52 | -19.80 | 278.06 | 32.86 | 232.92 | 0.6422 | 591.0 | 445.6 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -17.01 | 275.74 | 30.55 | 234.90 | 0.5962 | 588.0 | 529.2 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -16.60 | 275.30 | 30.11 | 235.12 | 0.5882 | 476.0 | 505.2 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -14.33 | 274.69 | 29.49 | 238.02 | 0.5645 | 738.0 | 605.0 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -14.99 | 273.31 | 28.11 | 235.78 | 0.5525 | 708.0 | 607.9 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -13.87 | 273.12 | 27.92 | 237.39 | 0.5418 | 668.0 | 549.5 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -14.63 | 273.11 | 27.92 | 236.17 | 0.5475 | 749.0 | 661.1 | |
| 0.00 | 1.82 | 0.00 | 1.06 | -13.82 | 272.76 | 27.56 | 237.13 | 0.5370 | 614.0 | 410.5 | |
| 0.00 | 2.63 | 0.00 | 1.54 | -13.43 | 272.49 | 27.30 | 237.52 | 0.5309 | 690.0 | 659.2 | |
| 0.00 | 1.82 | 0.00 | 1.06 | -13.62 | 272.23 | 27.04 | 236.98 | 0.5290 | 787.0 | 687.5 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -12.43 | 271.92 | 26.73 | 238.66 | 0.5162 | 774.0 | 566.3 | |
| 0.00 | 4.00 | 0.00 | 2.32 | -13.54 | 271.84 | 26.64 | 236.73 | 0.5235 | 973.0 | 746.3 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -11.76 | 271.61 | 26.41 | 239.52 | 0.5073 | 518.0 | 469.6 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -15.27 | 271.74 | 26.55 | 233.87 | 0.5359 | 611.0 | 551.9 | |
| 0.00 | 2.45 | 0.00 | 1.41 | -13.21 | 271.31 | 26.11 | 236.77 | 0.5143 | 786.0 | 679.0 | |
| 0.00 | 1.82 | 0.00 | 1.06 | -15.06 | 271.43 | 26.24 | 233.87 | 0.5306 | 600.0 | 498.9 | |
| 0.00 | 2.81 | 0.00 | 1.62 | -13.17 | 271.06 | 25.87 | 236.59 | 0.5109 | 957.0 | 748.5 | |
| 0.00 | 2.18 | 0.00 | 1.25 | -12.06 | 270.87 | 25.68 | 238.31 | 0.4999 | 903.0 | 751.6 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -12.17 | 270.57 | 25.38 | 237.81 | 0.4970 | 728.0 | 654.1 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -11.27 | 269.97 | 24.77 | 238.81 | 0.4823 | -90.0 | -46.0 | |
| 20.61 | 273.67 | 11.56 | 153.05 | -10.32 | 269.55 | 24.35 | 240.15 | 0.4696 | 1113.9 | 464.9 | |
| 0.00 | 2.36 | 0.00 | 1.33 | -11.33 | 269.56 | 24.37 | 238.31 | 0.4774 | 727.0 | 449.8 | |
| 0.27 | -23.00 | 0.15 | -23.00 | -10.88 | 269.42 | 24.23 | 238.98 | 0.4722 | 851.0 | 999999 | |
| 13.89 | 82.81 | 7.84 | 46.78 | -12.14 | 269.37 | 24.17 | 236.63 | 0.4813 | 897.4 | 213.1 | |
| 1.54 | -26.00 | 0.87 | -26.00 | -12.49 | 269.40 | 24.21 | 236.05 | 0.4845 | 523.5 | 999999 | |
| 26.51 | -23.00 | 14.82 | -23.00 | -10.34 | 269.14 | 23.94 | 239.70 | 0.4643 | 1432.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -12.99 | 269.21 | 24.02 | 234.97 | 0.4863 | -110.0 | -93.5 | |
| 4.90 | -26.00 | 2.76 | -26.00 | -12.01 | 269.08 | 23.89 | 236.56 | 0.4765 | 1111.9 | 999999 | |
| 2.72 | -23.00 | 1.52 | -23.00 | -10.58 | 268.82 | 23.63 | 238.91 | 0.4619 | 1153.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -11.58 | 268.60 | 23.40 | 236.81 | 0.4669 | 810.0 | 688.7 | |
| 6.54 | -23.00 | 3.63 | -23.00 | -10.20 | 268.45 | 23.26 | 239.25 | 0.4540 | 1270.8 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.17 | -12.31 | 268.46 | 23.27 | 235.34 | 0.4711 | 725.0 | 603.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -12.91 | 268.35 | 23.15 | 234.15 | 0.4748 | 520.0 | 391.8 | |
| 0.00 | 2.27 | 0.00 | 1.29 | -14.31 | 268.29 | 23.09 | 231.68 | 0.4863 | -760.0 | -611.9 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -11.53 | 267.82 | 22.62 | 236.02 | 0.4564 | 632.0 | 527.1 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -14.07 | 267.89 | 22.69 | 231.60 | 0.4794 | -717.0 | -558.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -12.00 | 267.66 | 22.46 | 234.97 | 0.4583 | -986.0 | -690.1 | |
| 0.00 | 2.63 | 0.00 | 1.46 | -11.68 | 267.59 | 22.40 | 235.48 | 0.4548 | -346.0 | -192.5 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -13.59 | 267.70 | 22.51 | 232.20 | 0.4728 | -620.0 | -533.3 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -15.03 | 267.75 | 22.56 | 229.85 | 0.4866 | -724.0 | -579.1 | |
| 0.00 | 8.35 | 0.00 | 4.62 | -11.36 | 267.23 | 22.04 | 235.66 | 0.4474 | 320.0 | 463.0 | |
| 12.08 | 241.89 | 6.76 | 134.68 | -13.61 | 267.37 | 22.17 | 231.75 | 0.4689 | -924.2 | -542.2 | |
| 0.00 | 3.54 | 0.00 | 1.95 | -10.79 | 266.95 | 21.76 | 236.42 | 0.4389 | 910.0 | 796.1 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -6.76 | 266.68 | 21.48 | 244.54 | 0.4045 | 846.0 | 703.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -8.22 | 266.62 | 21.42 | 241.27 | 0.4140 | 903.0 | 704.5 | |
| 36.41 | -44.00 | 20.28 | -44.00 | -13.22 | 266.85 | 21.66 | 231.80 | 0.4591 | -1354.8 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -9.77 | 266.25 | 21.05 | 237.59 | 0.4211 | 708.0 | 585.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -9.23 | 266.05 | 20.85 | 238.46 | 0.4140 | 909.0 | 751.1 | |
| 0.00 | 2.36 | 0.00 | 1.29 | -9.54 | 266.00 | 20.81 | 237.75 | 0.4159 | 755.0 | 760.6 | |
| 0.00 | 3.00 | 0.00 | 1.63 | -9.79 | 265.89 | 20.69 | 237.10 | 0.4164 | 989.0 | 740.5 | |
| 0.00 | 2.18 | 0.00 | 1.18 | -8.23 | 265.76 | 20.57 | 240.26 | 0.4021 | 740.0 | 707.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -10.35 | 265.69 | 20.50 | 235.72 | 0.4186 | 715.0 | 587.1 | |
| 0.00 | 3.90 | 0.00 | 2.11 | -8.13 | 265.53 | 20.33 | 240.19 | 0.3981 | 1057.0 | 863.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -10.90 | 265.27 | 20.07 | 234.05 | 0.4180 | 542.0 | 430.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -16.07 | 265.65 | 20.46 | 225.45 | 0.4732 | -801.0 | -604.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -13.53 | 265.41 | 20.21 | 229.34 | 0.4446 | -511.0 | -406.1 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -12.01 | 265.15 | 19.95 | 231.76 | 0.4267 | -859.0 | -724.8 | |
| 0.00 | 2.18 | 0.00 | 1.21 | -15.09 | 264.88 | 19.68 | 225.95 | 0.4543 | -878.0 | -668.7 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -11.89 | 264.31 | 19.12 | 230.80 | 0.4153 | -1058.0 | -822.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -14.50 | 264.49 | 19.30 | 226.37 | 0.4438 | -812.0 | -629.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -14.70 | 264.51 | 19.31 | 226.07 | 0.4460 | -719.0 | -604.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -11.98 | 264.12 | 18.93 | 230.35 | 0.4138 | -865.0 | -698.8 | |
| 0.00 | 2.63 | 0.00 | 1.45 | -13.67 | 264.25 | 19.06 | 227.45 | 0.4324 | -800.0 | -586.7 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -14.72 | 264.31 | 19.11 | 225.73 | 0.4441 | -791.0 | -731.4 | |
| 0.00 | 1.91 | 0.00 | 1.01 | -8.22 | 262.73 | 17.53 | 236.20 | 0.3604 | -681.0 | -550.0 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -15.69 | 262.73 | 17.54 | 221.74 | 0.4376 | -603.0 | -392.3 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -8.63 | 261.30 | 16.10 | 232.95 | 0.3451 | -770.0 | -681.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
