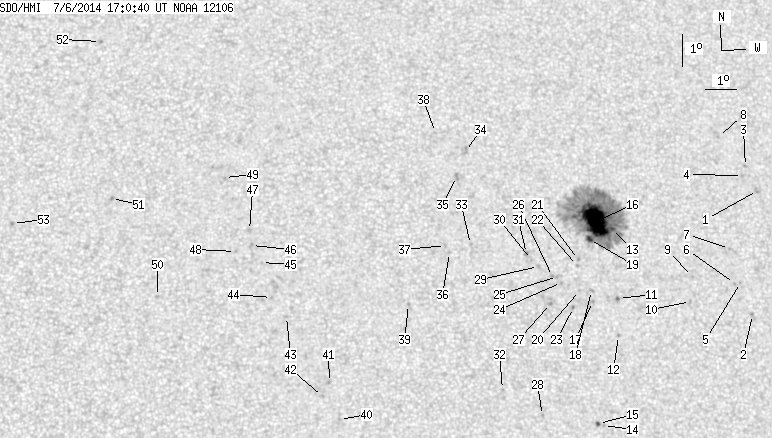

SDO HMI 2014-07-06 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.12 | 347.38 | 26.94 | 182.73 | 14.89 | 261.00 | 15.81 | 308.00 | 0.3346 | -528.1 | -318.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.81 | 0.00 | 1.54 | 16.03 | 267.25 | 22.06 | 301.60 | 0.4256 | -645.0 | -622.5 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 12.19 | 266.69 | 21.50 | 293.54 | 0.3924 | 793.0 | 546.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 16.79 | 266.93 | 21.74 | 303.51 | 0.4271 | -784.0 | -644.7 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 16.51 | 266.80 | 21.60 | 303.09 | 0.4231 | -671.0 | -455.6 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 13.19 | 266.38 | 21.18 | 296.20 | 0.3938 | -919.0 | -775.6 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 13.16 | 266.18 | 20.98 | 296.33 | 0.3907 | -903.0 | -758.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 14.25 | 266.11 | 20.92 | 298.92 | 0.3970 | -719.0 | -593.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 17.75 | 266.13 | 20.93 | 306.39 | 0.4245 | -943.0 | -603.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 13.41 | 264.79 | 19.60 | 298.39 | 0.3725 | -837.0 | -646.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 12.64 | 264.66 | 19.47 | 296.62 | 0.3653 | -784.0 | -607.3 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 12.78 | 262.30 | 17.11 | 299.85 | 0.3322 | -1044.0 | -919.0 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 11.64 | 262.23 | 17.03 | 296.81 | 0.3228 | -953.0 | -719.8 | |
| 1.18 | 272.39 | 0.62 | 143.76 | 14.95 | 262.28 | 17.08 | 305.43 | 0.3498 | -680.3 | -415.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 8.89 | 261.59 | 16.39 | 289.20 | 0.2966 | -682.0 | -580.2 | |
| 0.82 | 1.73 | 0.42 | 0.89 | 8.95 | 261.43 | 16.24 | 289.57 | 0.2944 | -1004.2 | -889.0 | |
| 46.49 | -13.00 | 24.52 | -13.00 | 15.18 | 261.73 | 16.54 | 306.81 | 0.3446 | -1441.9 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 12.70 | 261.45 | 16.26 | 300.84 | 0.3195 | -874.0 | -680.1 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 13.04 | 261.44 | 16.25 | 301.79 | 0.3221 | -751.0 | -663.9 | |
| 2.63 | -13.00 | 1.38 | -13.00 | 14.62 | 261.49 | 16.30 | 305.83 | 0.3364 | -1088.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 13.05 | 261.05 | 15.86 | 302.40 | 0.3166 | -770.0 | -525.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 14.01 | 261.09 | 15.89 | 304.91 | 0.3254 | -846.0 | -698.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 13.82 | 261.04 | 15.84 | 304.50 | 0.3231 | -894.0 | -676.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 12.53 | 260.82 | 15.63 | 301.30 | 0.3091 | -935.0 | -777.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 13.31 | 260.48 | 15.29 | 304.02 | 0.3109 | -967.0 | -775.4 | |
| 0.00 | 2.27 | 0.00 | 1.18 | 13.49 | 260.37 | 15.17 | 304.73 | 0.3110 | -781.0 | -615.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 13.50 | 260.20 | 15.01 | 305.01 | 0.3088 | -833.0 | -632.8 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 12.66 | 260.09 | 14.89 | 302.87 | 0.2998 | -1071.0 | -867.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 9.23 | 259.65 | 14.46 | 292.58 | 0.2680 | 848.0 | 679.6 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 13.81 | 259.77 | 14.58 | 306.63 | 0.3059 | -875.0 | -683.8 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 14.03 | 259.56 | 14.36 | 307.62 | 0.3052 | -838.0 | -702.2 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 14.22 | 259.41 | 14.21 | 308.40 | 0.3050 | -1014.0 | -840.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 10.04 | 258.41 | 13.22 | 297.32 | 0.2545 | 735.0 | 528.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 14.53 | 257.62 | 12.42 | 312.89 | 0.2855 | 533.0 | 379.4 | |
| 0.00 | 4.18 | 0.00 | 2.18 | 17.43 | 257.64 | 12.45 | 319.75 | 0.3197 | 863.0 | 731.3 | |
| 0.00 | 3.18 | 0.00 | 1.65 | 16.65 | 257.30 | 12.10 | 318.83 | 0.3064 | 1048.0 | 753.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 14.29 | 256.93 | 11.73 | 313.84 | 0.2744 | 625.0 | 493.1 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 14.51 | 256.81 | 11.62 | 314.71 | 0.2755 | 615.0 | 460.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 18.04 | 256.70 | 11.51 | 323.14 | 0.3176 | 660.0 | 449.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 12.70 | 255.54 | 10.35 | 312.68 | 0.2394 | 903.0 | 712.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.19 | 253.26 | 8.06 | 305.97 | 0.1718 | 804.0 | 570.2 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 10.32 | 252.97 | 7.78 | 312.06 | 0.1802 | 837.0 | 678.7 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.90 | 252.74 | 7.55 | 311.05 | 0.1724 | 780.0 | 714.0 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 12.36 | 251.68 | 6.49 | 324.60 | 0.1913 | 770.0 | 586.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.95 | 251.22 | 6.03 | 328.24 | 0.1954 | 847.0 | 669.8 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 14.04 | 250.94 | 5.74 | 332.19 | 0.2090 | 827.0 | 683.3 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 14.57 | 250.64 | 5.44 | 334.58 | 0.2147 | 921.0 | 722.7 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 15.04 | 250.58 | 5.39 | 335.71 | 0.2215 | 782.0 | 696.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.39 | 250.13 | 4.93 | 336.32 | 0.2083 | 722.0 | 518.2 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 16.69 | 249.83 | 4.64 | 341.33 | 0.2430 | 884.0 | 802.3 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 13.00 | 247.65 | 2.46 | 345.88 | 0.1719 | 828.0 | 608.7 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 16.05 | 246.23 | 1.04 | 355.45 | 0.2198 | 932.0 | 749.6 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 21.01 | 245.91 | 0.71 | 357.79 | 0.3032 | 940.0 | 818.9 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 15.27 | 243.10 | -2.10 | 9.77 | 0.2089 | 911.0 | 747.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
