SDO HMI 2014-07-06 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 395.74 | 1893.58 | 200.96 | 961.39 | -7.28 | 239.32 | -5.87 | 152.53 | 0.2182 | 70.3 | 60.6 | |
|
previous
or next observation for the same group /

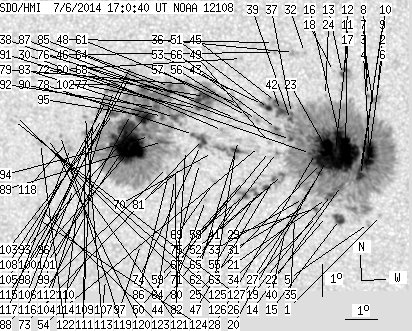

back to the solar disc SDO HMI 2014-07-06 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.74 | -9.54 | 243.42 | -1.77 | 172.27 | 0.2278 | -214.0 | -145.0 | |
| 0.00 | 6.63 | 0.00 | 3.33 | -5.93 | 243.32 | -1.88 | 168.71 | 0.1670 | 962.0 | 781.9 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -6.15 | 243.23 | -1.97 | 168.43 | 0.1710 | 784.0 | 504.7 | |
| 20.79 | 945.84 | 10.50 | 478.28 | -7.51 | 243.10 | -2.10 | 169.19 | 0.1945 | 1458.5 | 489.2 | |
| 0.00 | 2.81 | 0.00 | 1.43 | -9.79 | 243.05 | -2.15 | 170.85 | 0.2330 | -692.0 | -676.0 | |
| 12.17 | -4.00 | 6.15 | -4.00 | -7.91 | 243.03 | -2.16 | 169.26 | 0.2015 | 1246.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -5.81 | 243.04 | -2.15 | 166.94 | 0.1659 | 897.0 | 826.9 | |
| 0.00 | 1.91 | 0.00 | 0.96 | -5.41 | 243.05 | -2.15 | 166.37 | 0.1592 | -711.0 | -446.8 | |
| 6.17 | -4.00 | 3.13 | -4.00 | -8.29 | 242.81 | -2.38 | 168.58 | 0.2085 | 1003.9 | 999999 | |
| 2.72 | -4.00 | 1.38 | -4.00 | -8.07 | 242.82 | -2.38 | 168.37 | 0.2048 | 1028.4 | 999999 | |
| 64.65 | -4.00 | 32.68 | -4.00 | -7.64 | 242.36 | -2.84 | 165.68 | 0.1993 | 1520.5 | 999999 | |
| 1.63 | 16.62 | 0.82 | 8.34 | -5.01 | 242.34 | -2.85 | 161.38 | 0.1559 | -1098.3 | -231.7 | |
| 1.45 | -12.00 | 0.73 | -12.00 | -5.16 | 242.28 | -2.91 | 161.32 | 0.1588 | -811.6 | 999999 | |
| 2.45 | -4.00 | 1.24 | -4.00 | -8.60 | 242.23 | -2.97 | 166.21 | 0.2159 | 703.7 | 999999 | |
| 7.63 | 10.62 | 3.89 | 5.41 | -9.66 | 242.15 | -3.04 | 167.01 | 0.2338 | 983.2 | 660.6 | |
| 5.99 | -4.00 | 3.02 | -4.00 | -6.95 | 242.15 | -3.05 | 163.71 | 0.1890 | 1413.5 | 999999 | |
| 2.72 | -4.00 | 1.38 | -4.00 | -7.51 | 242.05 | -3.14 | 164.04 | 0.1986 | 1895.4 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -5.07 | 242.01 | -3.19 | 159.49 | 0.1588 | -637.0 | -481.4 | |
| 3.45 | -4.00 | 1.75 | -4.00 | -8.88 | 241.91 | -3.28 | 165.17 | 0.2219 | 867.7 | 999999 | |
| 3.45 | -4.00 | 1.75 | -4.00 | -7.82 | 241.77 | -3.42 | 163.15 | 0.2051 | 1327.5 | 999999 | |
| 0.73 | -4.00 | 0.37 | -4.00 | -9.01 | 241.76 | -3.44 | 164.65 | 0.2246 | 813.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.57 | 241.75 | -3.44 | 165.27 | 0.2339 | 665.0 | 509.7 | |
| 38.23 | -4.00 | 19.32 | -4.00 | -7.39 | 241.74 | -3.45 | 162.38 | 0.1981 | 1479.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -5.81 | 241.76 | -3.44 | 159.65 | 0.1724 | 841.0 | 595.0 | |
| 8.35 | -4.00 | 4.23 | -4.00 | -7.92 | 241.58 | -3.61 | 162.43 | 0.2076 | 1141.1 | 999999 | |
| 2.45 | -4.00 | 1.24 | -4.00 | -8.23 | 241.55 | -3.64 | 162.73 | 0.2128 | 944.5 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.25 | -9.57 | 241.47 | -3.72 | 164.14 | 0.2352 | 493.0 | 432.8 | |
| 4.00 | -4.00 | 2.02 | -4.00 | -7.61 | 241.43 | -3.76 | 161.26 | 0.2033 | 1173.9 | 999999 | |
| 1.27 | -4.00 | 0.65 | -4.00 | -9.32 | 241.41 | -3.78 | 163.59 | 0.2314 | 833.4 | 999999 | |
| 0.27 | -4.00 | 0.14 | -4.00 | -7.61 | 241.28 | -3.92 | 160.55 | 0.2042 | 1132.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.23 | 241.11 | -4.09 | 162.21 | 0.2314 | 716.0 | 458.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -4.49 | 241.12 | -4.07 | 152.84 | 0.1558 | 842.0 | 643.7 | |
| 0.00 | 3.18 | 0.00 | 1.62 | -9.01 | 241.05 | -4.15 | 161.67 | 0.2282 | 624.0 | 498.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.35 | 241.01 | -4.18 | 162.00 | 0.2339 | 559.0 | 323.6 | |
| 0.00 | 5.27 | 0.00 | 2.69 | -9.63 | 240.76 | -4.43 | 161.38 | 0.2398 | 155.0 | 255.1 | |
| 0.00 | 3.81 | 0.00 | 1.91 | -4.49 | 240.79 | -4.41 | 150.95 | 0.1586 | 976.0 | 895.2 | |
| 0.82 | -4.00 | 0.41 | -4.00 | -6.37 | 240.71 | -4.49 | 155.47 | 0.1882 | 252.8 | 999999 | |
| 1.63 | -4.00 | 0.83 | -4.00 | -7.18 | 240.67 | -4.53 | 156.97 | 0.2011 | 948.1 | 999999 | |
| 1.82 | -4.00 | 0.92 | -4.00 | -6.56 | 240.68 | -4.52 | 155.73 | 0.1913 | 1025.1 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -10.11 | 240.44 | -4.75 | 160.80 | 0.2491 | 891.0 | 719.2 | |
| 1.18 | -4.00 | 0.60 | -4.00 | -8.26 | 240.41 | -4.79 | 157.85 | 0.2200 | 932.2 | 999999 | |
| 8.08 | -4.00 | 4.08 | -4.00 | -6.28 | 240.37 | -4.82 | 153.65 | 0.1892 | 871.4 | 999999 | |
| 1.36 | -4.00 | 0.69 | -4.00 | -6.84 | 240.24 | -4.95 | 154.33 | 0.1988 | 854.2 | 999999 | |
| 0.36 | -4.00 | 0.18 | -4.00 | -7.58 | 240.23 | -4.96 | 155.84 | 0.2104 | 861.5 | 999999 | |
| 1.36 | -4.00 | 0.69 | -4.00 | -6.00 | 240.22 | -4.98 | 152.26 | 0.1862 | -525.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -4.49 | 240.20 | -4.99 | 147.84 | 0.1637 | 1023.0 | 813.4 | |
| 1.18 | -4.00 | 0.60 | -4.00 | -8.42 | 240.13 | -5.07 | 156.97 | 0.2243 | 904.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -4.18 | 240.17 | -5.02 | 146.66 | 0.1595 | 895.0 | 663.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.27 | 240.02 | -5.18 | 154.29 | 0.2072 | 379.0 | 322.7 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.55 | 240.02 | -5.18 | 154.85 | 0.2115 | -78.0 | 36.6 | |
| 3.00 | -4.00 | 1.51 | -4.00 | -6.22 | 240.00 | -5.19 | 151.79 | 0.1912 | 1100.5 | 999999 | |
| 2.54 | 4.45 | 1.29 | 2.26 | -8.67 | 239.91 | -5.29 | 156.52 | 0.2297 | 947.9 | 675.7 | |
| 0.91 | -4.00 | 0.46 | -4.00 | -6.10 | 239.82 | -5.38 | 150.64 | 0.1909 | 838.3 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -7.40 | 239.71 | -5.49 | 153.24 | 0.2114 | 270.0 | 229.2 | |
| 1.18 | 17.25 | 0.60 | 8.80 | -8.86 | 239.59 | -5.60 | 155.64 | 0.2348 | 1025.2 | 446.4 | |
| 0.00 | 2.91 | 0.00 | 1.47 | -6.56 | 239.63 | -5.57 | 150.96 | 0.1994 | 938.0 | 674.1 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -6.44 | 239.32 | -5.87 | 149.33 | 0.2002 | 824.0 | 591.0 | |
| 2.72 | -55.00 | 1.39 | -55.00 | -8.92 | 239.22 | -5.97 | 154.34 | 0.2385 | 638.0 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -8.46 | 239.20 | -6.00 | 153.36 | 0.2315 | 578.0 | 271.2 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -4.68 | 239.19 | -6.01 | 143.54 | 0.1763 | 933.0 | 768.6 | |
| 0.00 | 2.27 | 0.00 | 1.15 | -6.10 | 239.08 | -6.12 | 147.39 | 0.1975 | 635.0 | 442.3 | |
| 0.00 | 3.36 | 0.00 | 1.70 | -7.21 | 239.06 | -6.13 | 150.16 | 0.2139 | 452.0 | 460.8 | |
| 3.45 | 46.85 | 1.75 | 23.80 | -7.52 | 238.97 | -6.23 | 150.49 | 0.2194 | -976.2 | -536.0 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.53 | 238.98 | -6.21 | 148.14 | 0.2047 | 549.0 | 369.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.11 | 238.91 | -6.29 | 153.53 | 0.2437 | 697.0 | 526.1 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -5.73 | 238.90 | -6.30 | 145.58 | 0.1939 | 531.0 | 464.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.89 | 238.82 | -6.38 | 152.80 | 0.2411 | -607.0 | -447.6 | |
| 0.00 | 3.00 | 0.00 | 1.52 | -6.91 | 238.57 | -6.62 | 147.46 | 0.2138 | -688.0 | -469.9 | |
| 0.00 | 3.36 | 0.00 | 1.71 | -8.49 | 238.30 | -6.90 | 150.10 | 0.2393 | 167.0 | 109.0 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -7.59 | 238.25 | -6.94 | 147.92 | 0.2266 | -201.0 | -284.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.09 | 238.01 | -7.19 | 150.30 | 0.2505 | 807.0 | 656.8 | |
| 7.35 | 695.78 | 3.72 | 354.88 | -5.86 | 238.03 | -7.16 | 142.45 | 0.2044 | -1170.6 | -421.7 | |
| 5.63 | -63.00 | 2.86 | -63.00 | -7.19 | 237.95 | -7.24 | 145.82 | 0.2237 | -930.4 | 999999 | |
| 1.45 | -63.00 | 0.74 | -63.00 | -7.38 | 237.89 | -7.31 | 146.05 | 0.2269 | -951.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.93 | 237.84 | -7.35 | 147.24 | 0.2352 | -756.0 | -603.6 | |
| 3.81 | -72.00 | 1.93 | -72.00 | -5.98 | 237.85 | -7.35 | 142.11 | 0.2080 | -1294.5 | 999999 | |
| 1.63 | -72.00 | 0.83 | -72.00 | -6.23 | 237.81 | -7.38 | 142.70 | 0.2118 | -927.4 | 999999 | |
| 1.27 | -63.00 | 0.65 | -63.00 | -7.04 | 237.68 | -7.52 | 144.42 | 0.2242 | -1124.1 | 999999 | |
| 0.54 | -72.00 | 0.28 | -72.00 | -5.49 | 237.58 | -7.62 | 139.58 | 0.2044 | 702.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.53 | 237.42 | -7.78 | 144.78 | 0.2336 | -823.0 | -626.2 | |
| 0.00 | 2.27 | 0.00 | 1.16 | -8.03 | 237.35 | -7.85 | 145.74 | 0.2413 | -512.0 | -475.3 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -8.13 | 237.10 | -8.10 | 145.13 | 0.2450 | -713.0 | -635.6 | |
| 4.36 | -72.00 | 2.21 | -72.00 | -6.51 | 237.10 | -8.10 | 140.94 | 0.2231 | -1070.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.44 | 237.06 | -8.14 | 145.72 | 0.2497 | -585.0 | -470.5 | |
| 3.18 | -72.00 | 1.61 | -72.00 | -5.56 | 236.96 | -8.24 | 137.57 | 0.2123 | 445.6 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.07 | -8.28 | 236.87 | -8.32 | 144.77 | 0.2494 | -573.0 | -441.7 | |
| 3.63 | -72.00 | 1.84 | -72.00 | -5.77 | 236.89 | -8.30 | 138.03 | 0.2158 | -861.4 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -8.07 | 236.85 | -8.35 | 144.17 | 0.2466 | -935.0 | -685.1 | |
| 4.63 | -72.00 | 2.36 | -72.00 | -7.26 | 236.71 | -8.49 | 141.68 | 0.2371 | -621.4 | 999999 | |
| 2.18 | -72.00 | 1.11 | -72.00 | -6.49 | 236.73 | -8.47 | 139.60 | 0.2268 | -1147.1 | 999999 | |
| 2.63 | -72.00 | 1.34 | -72.00 | -5.99 | 236.58 | -8.62 | 137.64 | 0.2221 | -1249.4 | 999999 | |
| 3.00 | -72.00 | 1.52 | -72.00 | -6.21 | 236.54 | -8.65 | 138.18 | 0.2253 | -1236.5 | 999999 | |
| 0.27 | -72.00 | 0.14 | -72.00 | -6.27 | 236.39 | -8.81 | 137.86 | 0.2279 | -1289.0 | 999999 | |
| 1.54 | -72.00 | 0.79 | -72.00 | -7.11 | 236.31 | -8.89 | 139.98 | 0.2394 | -876.4 | 999999 | |
| 22.88 | -72.00 | 11.65 | -72.00 | -6.46 | 236.14 | -9.06 | 137.61 | 0.2331 | -1322.3 | 999999 | |
| 1.27 | -72.00 | 0.65 | -72.00 | -7.05 | 236.12 | -9.07 | 139.24 | 0.2407 | -1057.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -10.48 | 235.94 | -9.25 | 146.62 | 0.2887 | -902.0 | -690.1 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -4.89 | 235.79 | -9.40 | 131.55 | 0.2185 | -955.0 | -793.2 | |
| 0.27 | -72.00 | 0.14 | -72.00 | -6.43 | 235.73 | -9.46 | 136.28 | 0.2374 | -1085.7 | 999999 | |
| 0.00 | 7.45 | 0.00 | 3.78 | -5.23 | 235.75 | -9.44 | 132.58 | 0.2228 | -603.0 | -878.3 | |
| 95.43 | -72.00 | 48.81 | -72.00 | -7.33 | 235.62 | -9.58 | 138.47 | 0.2499 | -1387.0 | 999999 | |
| 0.91 | 11.62 | 0.46 | 5.92 | -5.51 | 235.25 | -9.94 | 132.03 | 0.2324 | -1058.0 | -802.2 | |
| 3.45 | -72.00 | 1.76 | -72.00 | -6.41 | 235.20 | -9.99 | 134.65 | 0.2434 | -1097.6 | 999999 | |
| 1.09 | -102.00 | 0.56 | -102.00 | -5.70 | 235.22 | -9.98 | 132.52 | 0.2349 | -1183.6 | 999999 | |
| 0.82 | 13.26 | 0.42 | 6.77 | -5.94 | 235.03 | -10.17 | 132.75 | 0.2402 | -1013.3 | -772.3 | |
| 0.36 | -102.00 | 0.19 | -102.00 | -5.70 | 235.00 | -10.19 | 131.91 | 0.2377 | -861.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -11.59 | 234.80 | -10.40 | 145.64 | 0.3146 | -696.0 | -577.0 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -6.56 | 234.86 | -10.34 | 134.14 | 0.2495 | -979.0 | -760.0 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -6.69 | 234.54 | -10.65 | 133.64 | 0.2548 | -941.0 | -787.8 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -10.90 | 234.22 | -10.97 | 142.88 | 0.3110 | -819.0 | -709.2 | |
| 0.00 | 4.36 | 0.00 | 2.24 | -7.03 | 234.32 | -10.88 | 134.01 | 0.2616 | -1050.0 | -849.9 | |
| 0.00 | 2.81 | 0.00 | 1.46 | -9.56 | 234.24 | -10.95 | 140.09 | 0.2933 | -1066.0 | -839.7 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -6.51 | 234.33 | -10.87 | 132.54 | 0.2553 | -812.0 | -636.5 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -9.59 | 233.96 | -11.24 | 139.44 | 0.2968 | -662.0 | -483.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -8.87 | 233.95 | -11.25 | 137.78 | 0.2880 | -776.0 | -660.4 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -8.75 | 233.89 | -11.30 | 137.33 | 0.2871 | -473.0 | -483.0 | |
| 0.00 | 3.90 | 0.00 | 2.01 | -7.50 | 233.83 | -11.36 | 134.05 | 0.2729 | -971.0 | -804.3 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -7.29 | 233.75 | -11.45 | 133.24 | 0.2715 | -948.0 | -851.5 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -7.10 | 233.53 | -11.66 | 132.21 | 0.2720 | -834.0 | -731.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -7.45 | 233.33 | -11.86 | 132.66 | 0.2784 | -887.0 | -746.4 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -7.20 | 233.12 | -12.07 | 131.49 | 0.2783 | -863.0 | -700.9 | |
| 0.00 | 2.63 | 0.00 | 1.36 | -7.36 | 232.90 | -12.30 | 131.40 | 0.2829 | -785.0 | -686.1 | |
| 0.00 | 2.18 | 0.00 | 1.13 | -9.38 | 232.80 | -12.40 | 136.19 | 0.3073 | -891.0 | -692.4 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -9.67 | 232.66 | -12.54 | 136.51 | 0.3123 | -813.0 | -660.7 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -7.14 | 232.75 | -12.45 | 130.47 | 0.2824 | -720.0 | -555.0 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -6.53 | 232.13 | -13.06 | 127.43 | 0.2840 | -654.0 | -558.5 | |
| 0.00 | 2.45 | 0.00 | 1.27 | -6.66 | 232.07 | -13.13 | 127.64 | 0.2861 | -439.0 | -543.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
