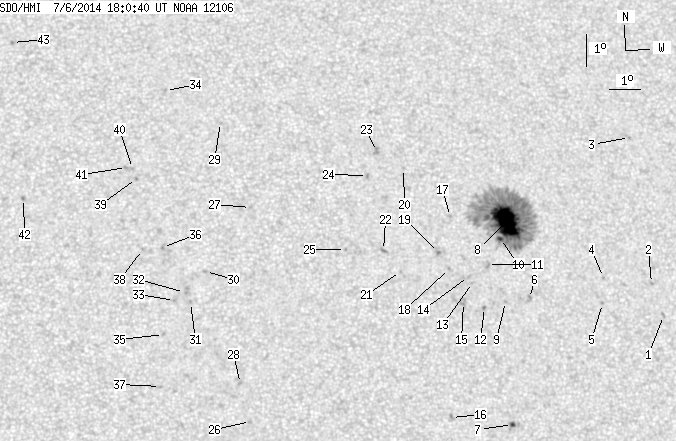

SDO HMI 2014-07-06 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.83 | 361.17 | 28.47 | 190.39 | 14.90 | 260.87 | 16.23 | 307.17 | 0.3402 | -431.7 | -281.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.18 | 12.18 | 266.71 | 22.07 | 293.02 | 0.4007 | 625.0 | 510.1 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 13.18 | 266.39 | 21.75 | 295.62 | 0.4019 | -816.0 | -715.6 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 17.74 | 266.15 | 21.51 | 305.67 | 0.4318 | -861.0 | -674.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 13.40 | 264.80 | 20.16 | 297.73 | 0.3805 | -716.0 | -505.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 12.60 | 264.70 | 20.06 | 295.89 | 0.3737 | -870.0 | -710.7 | |
| 0.00 | 3.09 | 0.00 | 1.63 | 12.80 | 262.31 | 17.67 | 299.17 | 0.3404 | -616.0 | -730.8 | |
| 1.27 | 5.18 | 0.66 | 2.69 | 8.94 | 261.52 | 16.88 | 288.89 | 0.3045 | -1092.4 | -703.2 | |
| 50.93 | 289.63 | 26.95 | 153.26 | 15.20 | 261.74 | 17.10 | 305.99 | 0.3522 | -1409.5 | -386.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 12.72 | 261.52 | 16.88 | 300.01 | 0.3284 | -876.0 | -694.9 | |
| 1.63 | -8.00 | 0.86 | -8.00 | 14.68 | 261.50 | 16.86 | 305.09 | 0.3443 | -1033.6 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.52 | 13.88 | 261.01 | 16.37 | 303.81 | 0.3308 | -561.0 | -634.3 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 12.55 | 260.82 | 16.18 | 300.53 | 0.3171 | -994.0 | -845.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 13.33 | 260.48 | 15.84 | 303.18 | 0.3188 | -955.0 | -768.6 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 13.52 | 260.36 | 15.72 | 303.87 | 0.3188 | -703.0 | -624.5 | |
| 0.00 | 6.26 | 0.00 | 3.26 | 12.72 | 260.15 | 15.51 | 302.01 | 0.3089 | -896.0 | -686.1 | |
| 0.00 | 2.54 | 0.00 | 1.31 | 9.19 | 259.57 | 14.93 | 291.84 | 0.2752 | 862.0 | 627.8 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 15.39 | 259.91 | 15.27 | 309.43 | 0.3302 | 809.0 | 660.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 13.78 | 259.76 | 15.12 | 305.56 | 0.3129 | -805.0 | -593.4 | |
| 0.00 | 2.18 | 0.00 | 1.14 | 14.28 | 259.44 | 14.80 | 307.46 | 0.3132 | -996.0 | -801.8 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 16.91 | 258.49 | 13.85 | 315.66 | 0.3291 | 593.0 | 444.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 13.71 | 258.17 | 13.53 | 308.31 | 0.2910 | -872.0 | -666.6 | |
| 0.00 | 2.45 | 0.00 | 1.27 | 14.37 | 257.66 | 13.02 | 311.15 | 0.2912 | 844.0 | 665.5 | |
| 0.00 | 3.99 | 0.00 | 2.09 | 17.46 | 257.64 | 13.00 | 318.59 | 0.3260 | 919.0 | 717.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 16.71 | 257.30 | 12.66 | 317.70 | 0.3132 | 1047.0 | 862.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 14.41 | 256.44 | 11.80 | 314.00 | 0.2766 | 705.0 | 587.9 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 9.15 | 253.23 | 8.59 | 304.12 | 0.1789 | 786.0 | 665.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 15.76 | 253.46 | 8.82 | 325.37 | 0.2609 | 827.0 | 611.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 10.32 | 252.95 | 8.31 | 310.19 | 0.1870 | 846.0 | 734.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 18.43 | 252.62 | 7.98 | 333.04 | 0.2918 | 670.0 | 543.3 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 13.78 | 251.95 | 7.31 | 325.47 | 0.2191 | 905.0 | 687.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.83 | 251.45 | 6.81 | 324.68 | 0.2009 | 836.0 | 666.1 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 13.14 | 251.27 | 6.63 | 326.29 | 0.2035 | 549.0 | 604.7 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 12.89 | 250.95 | 6.31 | 326.89 | 0.1970 | 926.0 | 769.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 19.46 | 250.88 | 6.24 | 339.63 | 0.2957 | 810.0 | 570.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 11.85 | 250.58 | 5.94 | 325.30 | 0.1787 | 828.0 | 665.6 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 14.54 | 250.62 | 5.98 | 332.36 | 0.2183 | 1066.0 | 849.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 10.25 | 250.45 | 5.81 | 319.96 | 0.1556 | 809.0 | 631.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.48 | 249.98 | 5.34 | 334.78 | 0.2126 | 663.0 | 576.6 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 16.69 | 249.85 | 5.21 | 339.21 | 0.2463 | 906.0 | 793.9 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 17.01 | 249.73 | 5.09 | 340.10 | 0.2505 | 850.0 | 571.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 17.04 | 249.54 | 4.90 | 340.83 | 0.2500 | 904.0 | 764.1 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 16.08 | 246.25 | 1.61 | 352.98 | 0.2213 | 1020.0 | 754.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 21.01 | 245.94 | 1.30 | 355.98 | 0.3037 | 967.0 | 794.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
