SDO HMI 2014-07-06 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 385.33 | 1959.11 | 195.43 | 993.66 | -7.30 | 239.36 | -5.28 | 154.99 | 0.2142 | 63.0 | 62.7 | |
|
previous
or next observation for the same group /

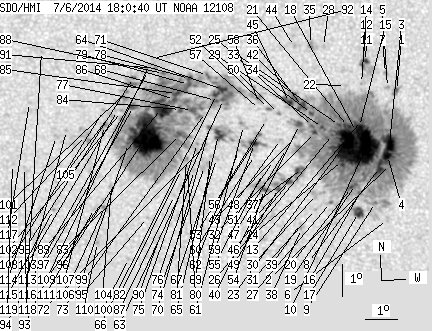

back to the solar disc SDO HMI 2014-07-06 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 5.99 | 0.68 | 3.01 | -5.87 | 243.35 | -1.29 | 172.11 | 0.1643 | 1119.7 | 831.0 | |
| 0.73 | 994.27 | 0.37 | 502.52 | -8.16 | 243.15 | -1.49 | 172.73 | 0.2039 | 940.9 | 491.1 | |
| 14.16 | -2.00 | 7.15 | -2.00 | -7.51 | 243.12 | -1.52 | 172.15 | 0.1928 | 1528.8 | 999999 | |
| 7.26 | -2.00 | 3.67 | -2.00 | -7.88 | 243.06 | -1.58 | 172.10 | 0.1993 | 1311.7 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.09 | -5.77 | 243.07 | -1.57 | 170.36 | 0.1634 | 955.0 | 798.5 | |
| 0.00 | 2.63 | 0.00 | 1.34 | -9.88 | 243.05 | -1.59 | 173.24 | 0.2332 | -652.0 | -616.2 | |
| 0.00 | 1.82 | 0.00 | 0.91 | -5.34 | 243.01 | -1.63 | 169.52 | 0.1562 | -598.0 | -534.5 | |
| 7.54 | -2.00 | 3.81 | -2.00 | -8.25 | 242.81 | -1.83 | 171.16 | 0.2063 | 1032.9 | 999999 | |
| 0.45 | -2.00 | 0.23 | -2.00 | -9.34 | 242.68 | -1.96 | 171.35 | 0.2251 | 733.0 | 999999 | |
| 65.55 | -2.00 | 33.13 | -2.00 | -7.66 | 242.39 | -2.25 | 168.57 | 0.1976 | 1515.8 | 999999 | |
| 2.63 | 15.25 | 1.32 | 7.65 | -4.97 | 242.40 | -2.24 | 165.13 | 0.1523 | -1027.6 | -267.2 | |
| 0.91 | -11.00 | 0.46 | -11.00 | -5.10 | 242.31 | -2.33 | 164.75 | 0.1548 | -835.3 | 999999 | |
| 2.36 | -2.00 | 1.19 | -2.00 | -6.79 | 242.27 | -2.37 | 167.00 | 0.1834 | 1301.8 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -5.65 | 242.27 | -2.36 | 165.45 | 0.1642 | 946.0 | 775.1 | |
| 6.45 | -2.00 | 3.25 | -2.00 | -6.98 | 242.21 | -2.43 | 166.90 | 0.1868 | 1465.0 | 999999 | |
| 0.82 | -2.00 | 0.42 | -2.00 | -9.06 | 242.19 | -2.45 | 168.98 | 0.2218 | 671.3 | 999999 | |
| 7.54 | 10.53 | 3.84 | 5.36 | -9.66 | 242.15 | -2.49 | 169.33 | 0.2319 | 986.5 | 625.2 | |
| 3.00 | -2.00 | 1.51 | -2.00 | -7.14 | 242.11 | -2.53 | 166.61 | 0.1898 | 1616.1 | 999999 | |
| 0.27 | -2.00 | 0.14 | -2.00 | -8.78 | 242.07 | -2.57 | 168.19 | 0.2175 | 885.7 | 999999 | |
| 1.63 | -2.00 | 0.83 | -2.00 | -8.88 | 241.95 | -2.69 | 167.73 | 0.2195 | 915.9 | 999999 | |
| 6.17 | -2.00 | 3.11 | -2.00 | -6.98 | 241.87 | -2.77 | 165.15 | 0.1882 | 1345.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -5.71 | 241.78 | -2.86 | 162.71 | 0.1676 | 904.0 | 690.4 | |
| 44.58 | -2.00 | 22.53 | -2.00 | -7.54 | 241.74 | -2.90 | 165.27 | 0.1980 | 1460.1 | 999999 | |
| 6.99 | -2.00 | 3.54 | -2.00 | -8.04 | 241.67 | -2.97 | 165.58 | 0.2066 | 1081.8 | 999999 | |
| 2.00 | -2.00 | 1.01 | -2.00 | -6.95 | 241.59 | -3.05 | 163.70 | 0.1890 | 1197.3 | 999999 | |
| 0.27 | -2.00 | 0.14 | -2.00 | -7.23 | 241.37 | -3.27 | 163.04 | 0.1946 | 1043.3 | 999999 | |
| 0.64 | -2.00 | 0.32 | -2.00 | -9.35 | 241.29 | -3.35 | 165.42 | 0.2299 | 830.6 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -4.51 | 241.12 | -3.52 | 156.15 | 0.1522 | 738.0 | 725.9 | |
| 2.18 | -2.00 | 1.10 | -2.00 | -7.01 | 241.07 | -3.57 | 161.20 | 0.1927 | 998.2 | 999999 | |
| 0.00 | 7.35 | 0.00 | 3.74 | -9.10 | 240.86 | -3.78 | 163.33 | 0.2278 | 211.0 | 225.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.57 | 240.82 | -3.81 | 163.76 | 0.2356 | 721.0 | 547.3 | |
| 1.91 | -2.00 | 0.96 | -2.00 | -7.17 | 240.82 | -3.82 | 160.27 | 0.1966 | 924.3 | 999999 | |
| 1.18 | -2.00 | 0.60 | -2.00 | -6.98 | 240.76 | -3.88 | 159.65 | 0.1940 | 844.5 | 999999 | |
| 1.91 | -2.00 | 0.96 | -2.00 | -6.58 | 240.73 | -3.91 | 158.77 | 0.1877 | 1138.0 | 999999 | |
| 0.00 | 4.18 | 0.00 | 2.09 | -4.45 | 240.72 | -3.92 | 153.63 | 0.1541 | 943.0 | 890.4 | |
| 6.72 | -2.00 | 3.39 | -2.00 | -6.37 | 240.46 | -4.18 | 156.97 | 0.1860 | 1016.9 | 999999 | |
| 0.27 | -2.00 | 0.14 | -2.00 | -8.29 | 240.44 | -4.20 | 160.38 | 0.2169 | 1086.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -10.16 | 240.38 | -4.26 | 162.75 | 0.2475 | 796.0 | 712.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -10.01 | 240.35 | -4.29 | 162.45 | 0.2451 | 941.0 | 629.0 | |
| 3.09 | -2.00 | 1.56 | -2.00 | -6.92 | 240.36 | -4.28 | 157.64 | 0.1955 | 648.4 | 999999 | |
| 2.63 | -2.00 | 1.34 | -2.00 | -8.35 | 240.28 | -4.36 | 159.82 | 0.2188 | 975.6 | 999999 | |
| 0.91 | -2.00 | 0.46 | -2.00 | -6.00 | 240.22 | -4.42 | 154.94 | 0.1819 | -477.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.33 | 240.20 | -4.44 | 157.68 | 0.2030 | 724.0 | 438.5 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -4.52 | 240.23 | -4.41 | 151.04 | 0.1590 | 1024.0 | 766.1 | |
| 2.72 | -2.00 | 1.37 | -2.00 | -6.24 | 240.06 | -4.58 | 154.76 | 0.1869 | 1096.4 | 999999 | |
| 2.36 | 10.80 | 1.20 | 5.49 | -8.69 | 240.03 | -4.61 | 159.31 | 0.2258 | 1047.5 | 470.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.67 | 239.95 | -4.69 | 157.21 | 0.2100 | -783.0 | -637.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.39 | 239.77 | -4.87 | 155.88 | 0.2069 | 563.0 | 338.2 | |
| 1.36 | 22.52 | 0.69 | 11.47 | -8.91 | 239.69 | -4.95 | 158.28 | 0.2314 | 1039.9 | 376.7 | |
| 0.00 | 2.00 | 0.00 | 1.01 | -6.58 | 239.72 | -4.92 | 153.93 | 0.1948 | 988.0 | 801.2 | |
| 0.00 | 0.64 | 0.00 | 0.32 | -8.04 | 239.55 | -5.09 | 156.18 | 0.2187 | -482.0 | -316.6 | |
| 0.73 | 2.27 | 0.37 | 1.15 | -6.43 | 239.41 | -5.23 | 152.17 | 0.1948 | 758.1 | 508.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.77 | 239.35 | -5.29 | 152.68 | 0.2005 | 557.0 | 322.9 | |
| 1.91 | -49.00 | 0.97 | -49.00 | -8.95 | 239.25 | -5.39 | 156.63 | 0.2348 | 751.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.45 | 239.20 | -5.44 | 155.53 | 0.2274 | 226.0 | 288.3 | |
| 0.73 | 27.69 | 0.37 | 14.05 | -7.24 | 239.13 | -5.51 | 152.78 | 0.2093 | 840.6 | -349.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.46 | 239.14 | -5.50 | 151.01 | 0.1975 | 449.0 | 262.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -6.28 | 239.14 | -5.50 | 150.55 | 0.1947 | -161.0 | -113.1 | |
| 3.72 | -56.00 | 1.89 | -56.00 | -7.52 | 238.97 | -5.67 | 152.73 | 0.2148 | -934.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.89 | 238.96 | -5.68 | 153.49 | 0.2205 | -479.0 | -311.4 | |
| 0.00 | 3.54 | 0.00 | 1.79 | -6.96 | 238.64 | -6.00 | 150.09 | 0.2092 | -348.0 | -465.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.74 | 238.47 | -6.17 | 151.21 | 0.2221 | -836.0 | -646.1 | |
| 1.36 | 710.00 | 0.69 | 361.54 | -6.16 | 238.03 | -6.61 | 145.52 | 0.2031 | -328.2 | -440.8 | |
| 5.18 | -63.00 | 2.62 | -63.00 | -5.85 | 238.00 | -6.64 | 144.53 | 0.1990 | -1250.5 | 999999 | |
| 6.45 | 27.42 | 3.27 | 13.92 | -7.24 | 237.86 | -6.78 | 147.70 | 0.2202 | -1108.6 | -561.3 | |
| 3.00 | -63.00 | 1.52 | -63.00 | -6.01 | 237.82 | -6.82 | 144.23 | 0.2031 | -1306.0 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.06 | -7.99 | 237.78 | -6.86 | 149.17 | 0.2317 | -756.0 | -612.7 | |
| 2.36 | -63.00 | 1.19 | -63.00 | -6.19 | 237.78 | -6.86 | 144.63 | 0.2060 | -1068.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -7.93 | 237.60 | -7.04 | 148.35 | 0.2324 | -663.0 | -528.1 | |
| 1.00 | -65.00 | 0.51 | -65.00 | -7.03 | 237.58 | -7.06 | 146.12 | 0.2197 | -1127.8 | 999999 | |
| 1.27 | -63.00 | 0.64 | -63.00 | -5.42 | 237.55 | -7.09 | 141.38 | 0.1979 | 744.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.56 | 237.45 | -7.19 | 146.94 | 0.2284 | -865.0 | -713.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -6.57 | 237.47 | -7.17 | 144.45 | 0.2143 | -623.0 | -627.2 | |
| 0.00 | 8.08 | 0.00 | 4.12 | -8.24 | 237.41 | -7.23 | 148.37 | 0.2386 | -22.0 | -99.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.53 | 237.20 | -7.44 | 145.98 | 0.2303 | -686.0 | -542.7 | |
| 0.00 | 2.45 | 0.00 | 1.25 | -8.37 | 237.09 | -7.55 | 147.56 | 0.2433 | -263.0 | -423.8 | |
| 4.45 | -63.00 | 2.26 | -63.00 | -6.51 | 237.07 | -7.57 | 142.80 | 0.2175 | -1108.0 | 999999 | |
| 2.45 | -63.00 | 1.24 | -63.00 | -5.52 | 236.99 | -7.65 | 139.56 | 0.2052 | 705.9 | 999999 | |
| 2.36 | -63.00 | 1.20 | -63.00 | -5.70 | 236.96 | -7.68 | 140.02 | 0.2080 | -641.7 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -8.31 | 236.88 | -7.76 | 146.69 | 0.2444 | -670.0 | -542.8 | |
| 0.00 | 2.45 | 0.00 | 1.25 | -8.03 | 236.85 | -7.79 | 145.95 | 0.2407 | -952.0 | -769.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -8.34 | 236.69 | -7.95 | 146.13 | 0.2466 | -684.0 | -532.8 | |
| 6.17 | -63.00 | 3.14 | -63.00 | -7.25 | 236.68 | -7.96 | 143.45 | 0.2316 | -674.0 | 999999 | |
| 2.54 | -63.00 | 1.29 | -63.00 | -6.48 | 236.70 | -7.94 | 141.39 | 0.2210 | -1174.4 | 999999 | |
| 3.18 | -63.00 | 1.61 | -63.00 | -5.98 | 236.58 | -8.06 | 139.53 | 0.2158 | -1292.3 | 999999 | |
| 2.36 | -63.00 | 1.20 | -63.00 | -6.17 | 236.52 | -8.12 | 139.86 | 0.2189 | -1261.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -9.15 | 236.45 | -8.19 | 147.15 | 0.2603 | -737.0 | -458.5 | |
| 0.82 | -63.00 | 0.41 | -63.00 | -5.37 | 236.19 | -8.45 | 136.24 | 0.2125 | -777.1 | 999999 | |
| 25.51 | -63.00 | 12.98 | -63.00 | -6.45 | 236.11 | -8.53 | 139.30 | 0.2271 | -1322.3 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -10.47 | 235.95 | -8.69 | 148.24 | 0.2835 | -959.0 | -764.8 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -5.22 | 235.94 | -8.70 | 134.92 | 0.2136 | -1054.0 | -889.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -4.91 | 235.85 | -8.79 | 133.58 | 0.2110 | -895.0 | -699.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -5.10 | 235.76 | -8.88 | 133.91 | 0.2144 | -816.0 | -726.2 | |
| 0.00 | 2.91 | 0.00 | 1.47 | -5.28 | 235.73 | -8.91 | 134.42 | 0.2170 | -1083.0 | -804.2 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -9.85 | 235.59 | -9.05 | 145.96 | 0.2780 | 796.0 | 616.3 | |
| 91.79 | -63.00 | 46.87 | -63.00 | -7.29 | 235.63 | -9.01 | 140.08 | 0.2433 | -1406.1 | 999999 | |
| 3.72 | -63.00 | 1.90 | -63.00 | -6.40 | 235.24 | -9.40 | 136.38 | 0.2363 | -1102.8 | 999999 | |
| 1.09 | -63.00 | 0.55 | -63.00 | -5.50 | 235.26 | -9.38 | 133.67 | 0.2254 | -1038.5 | 999999 | |
| 0.27 | -63.00 | 0.14 | -63.00 | -7.54 | 235.06 | -9.58 | 139.03 | 0.2528 | -825.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -11.14 | 234.95 | -9.69 | 146.69 | 0.3019 | -811.0 | -625.8 | |
| 0.36 | 11.26 | 0.18 | 5.74 | -5.94 | 235.03 | -9.61 | 134.36 | 0.2333 | -1107.5 | -727.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.56 | 234.86 | -9.78 | 135.72 | 0.2427 | -793.0 | -778.0 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -6.53 | 234.74 | -9.90 | 135.27 | 0.2438 | -534.0 | -576.2 | |
| 0.00 | 3.27 | 0.00 | 1.68 | -8.89 | 234.49 | -10.15 | 140.73 | 0.2762 | -360.0 | -390.3 | |
| 0.00 | 2.72 | 0.00 | 1.39 | -6.65 | 234.52 | -10.12 | 135.01 | 0.2480 | -800.0 | -742.8 | |
| 0.00 | 2.91 | 0.00 | 1.50 | -9.55 | 234.25 | -10.39 | 141.56 | 0.2873 | -1139.0 | -865.3 | |
| 0.00 | 4.72 | 0.00 | 2.42 | -6.99 | 234.32 | -10.32 | 135.43 | 0.2544 | -1093.0 | -866.5 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -6.53 | 234.30 | -10.34 | 134.05 | 0.2491 | -765.0 | -615.4 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -9.33 | 234.23 | -10.41 | 141.01 | 0.2847 | -821.0 | -637.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -10.65 | 233.99 | -10.65 | 143.20 | 0.3044 | -816.0 | -730.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.58 | 233.94 | -10.70 | 140.80 | 0.2910 | -657.0 | -441.2 | |
| 0.00 | 11.98 | 0.00 | 6.16 | -7.31 | 233.72 | -10.92 | 134.67 | 0.2653 | -980.0 | -793.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -7.16 | 233.13 | -11.51 | 132.76 | 0.2708 | -827.0 | -706.2 | |
| 0.00 | 2.27 | 0.00 | 1.17 | -7.35 | 232.81 | -11.83 | 132.50 | 0.2769 | -764.0 | -594.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -9.63 | 232.64 | -12.00 | 137.68 | 0.3057 | -794.0 | -661.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -4.73 | 232.41 | -12.23 | 123.74 | 0.2551 | -786.0 | -663.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.31 | 231.99 | -12.65 | 127.69 | 0.2762 | -701.0 | -607.9 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -8.33 | 231.77 | -12.87 | 132.62 | 0.3007 | -662.0 | -528.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -8.24 | 231.40 | -13.24 | 131.58 | 0.3044 | -611.0 | -422.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
