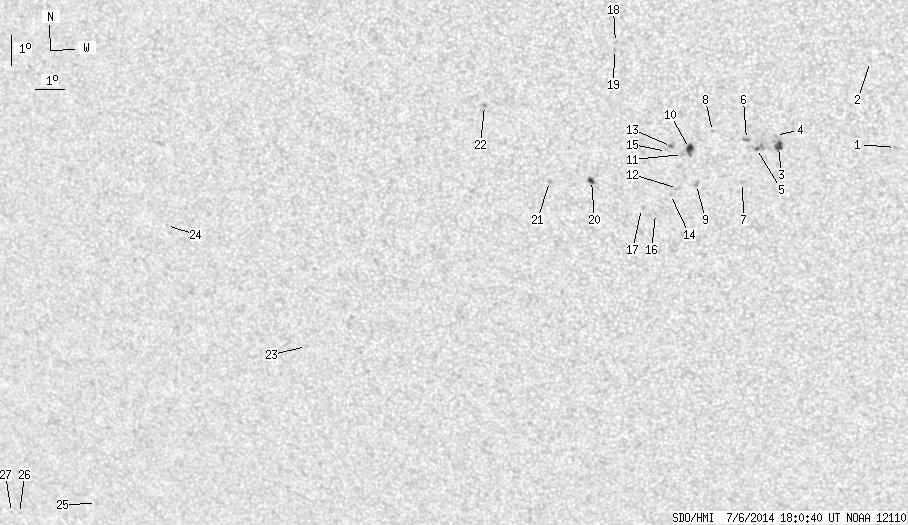

SDO HMI 2014-07-06 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.79 | 50.47 | 5.78 | 27.61 | -16.73 | 231.45 | -13.19 | 149.43 | 0.4095 | -208.4 | -114.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.81 | -15.60 | 239.93 | -4.71 | 166.38 | 0.3372 | 833.0 | 670.5 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -12.85 | 239.21 | -5.43 | 161.79 | 0.2966 | 608.0 | 398.6 | |
| 3.90 | 6.08 | 2.07 | 3.22 | -15.59 | 236.21 | -8.43 | 156.55 | 0.3565 | 1003.4 | 783.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.23 | 236.13 | -8.51 | 155.93 | 0.3518 | 886.0 | 795.1 | |
| 0.54 | 4.54 | 0.29 | 2.41 | -15.66 | 235.50 | -9.14 | 154.91 | 0.3623 | 883.0 | 746.4 | |
| 0.00 | 2.63 | 0.00 | 1.40 | -15.37 | 235.19 | -9.45 | 153.82 | 0.3603 | 1056.0 | 832.9 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -16.76 | 234.99 | -9.65 | 155.05 | 0.3819 | 631.0 | 481.9 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -15.12 | 234.11 | -10.53 | 150.96 | 0.3649 | 776.0 | 525.1 | |
| 0.00 | 2.63 | 0.00 | 1.42 | -16.84 | 233.50 | -11.14 | 151.87 | 0.3938 | -1018.0 | -788.2 | |
| 3.72 | 7.08 | 1.99 | 3.79 | -15.68 | 233.34 | -11.30 | 150.00 | 0.3788 | -1070.8 | -843.5 | |
| 0.00 | 2.18 | 0.00 | 1.17 | -15.88 | 233.11 | -11.53 | 149.76 | 0.3835 | -899.0 | -705.7 | |
| 0.00 | 2.18 | 0.00 | 1.18 | -16.98 | 232.87 | -11.77 | 150.73 | 0.4006 | -789.0 | -605.2 | |
| 0.45 | 2.36 | 0.24 | 1.26 | -15.62 | 232.77 | -11.87 | 148.68 | 0.3828 | -1038.6 | -637.1 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.18 | 232.63 | -12.01 | 150.49 | 0.4052 | -807.0 | -611.4 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -15.78 | 232.59 | -12.05 | 148.54 | 0.3865 | -581.0 | -668.8 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -17.81 | 232.10 | -12.54 | 150.22 | 0.4180 | -677.0 | -585.5 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -17.65 | 231.65 | -12.99 | 149.15 | 0.4194 | -390.0 | -458.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -12.32 | 231.15 | -13.49 | 139.86 | 0.3550 | -826.0 | -621.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -12.54 | 231.11 | -13.53 | 140.18 | 0.3582 | -757.0 | -613.8 | |
| 2.18 | 3.18 | 1.19 | 1.73 | -16.76 | 230.08 | -14.56 | 144.99 | 0.4214 | -1057.0 | -791.3 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -16.81 | 228.69 | -15.95 | 142.61 | 0.4350 | 689.0 | 467.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -14.39 | 226.75 | -17.89 | 135.58 | 0.4270 | -1000.0 | -864.4 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -22.47 | 219.50 | -25.14 | 137.73 | 0.5859 | -634.0 | -494.5 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -18.56 | 215.12 | -29.52 | 128.20 | 0.5965 | -617.0 | -435.6 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -28.23 | 209.69 | -34.95 | 135.61 | 0.7239 | -130.0 | -97.6 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -28.72 | 206.15 | -38.49 | 133.67 | 0.7568 | -572.0 | -537.8 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -28.70 | 205.80 | -38.84 | 133.42 | 0.7596 | -527.0 | -390.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
