SDO HMI 2014-07-06 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.90 | 46.33 | 3.60 | 28.10 | 12.21 | 278.61 | 34.53 | 286.41 | 0.5798 | -355.4 | -346.5 | |
|
previous
or next observation for the same group /

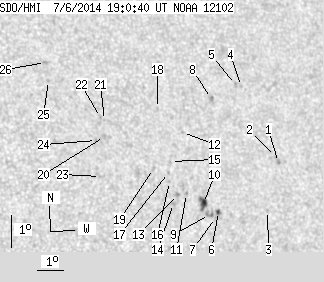

back to the solar disc SDO HMI 2014-07-06 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.04 | 12.13 | 282.34 | 38.26 | 285.10 | 0.6293 | -796.0 | -647.6 | |
| 0.00 | 0.64 | 0.00 | 0.40 | 12.32 | 282.25 | 38.17 | 285.42 | 0.6286 | -649.0 | -536.0 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 10.67 | 281.67 | 37.59 | 282.94 | 0.6173 | -545.0 | -456.8 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 14.52 | 281.32 | 37.23 | 289.18 | 0.6224 | -447.0 | -305.7 | |
| 0.00 | 1.82 | 0.00 | 1.14 | 14.59 | 281.09 | 37.01 | 289.37 | 0.6197 | -622.0 | -532.3 | |
| 1.00 | 2.27 | 0.61 | 1.39 | 10.71 | 279.78 | 35.70 | 283.46 | 0.5917 | -767.5 | -672.9 | |
| 0.00 | 1.91 | 0.00 | 1.17 | 10.53 | 279.64 | 35.56 | 283.20 | 0.5894 | -476.0 | -492.9 | |
| 0.00 | 2.45 | 0.00 | 1.52 | 14.19 | 280.08 | 35.99 | 289.11 | 0.6051 | -848.0 | -731.2 | |
| 0.00 | 3.90 | 0.00 | 2.38 | 10.63 | 279.43 | 35.34 | 283.42 | 0.5867 | -605.0 | -768.6 | |
| 4.90 | 8.17 | 2.99 | 4.98 | 10.97 | 279.25 | 35.16 | 284.05 | 0.5850 | -935.7 | -729.7 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 11.30 | 278.65 | 34.56 | 284.79 | 0.5775 | -827.0 | -686.0 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 13.18 | 278.78 | 34.70 | 287.93 | 0.5847 | -621.0 | -520.5 | |
| 0.00 | 1.91 | 0.00 | 1.15 | 11.28 | 278.30 | 34.22 | 284.86 | 0.5727 | -954.0 | -820.0 | |
| 0.00 | 1.91 | 0.00 | 1.15 | 11.01 | 278.12 | 34.03 | 284.45 | 0.5694 | -831.0 | -673.5 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 12.31 | 278.19 | 34.10 | 286.66 | 0.5739 | -713.0 | -545.3 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 11.69 | 278.06 | 33.98 | 285.64 | 0.5704 | -658.0 | -518.4 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 11.97 | 278.06 | 33.98 | 286.12 | 0.5713 | -648.0 | -494.7 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 13.96 | 277.96 | 33.87 | 289.55 | 0.5762 | -507.0 | -431.0 | |
| 0.00 | 2.00 | 0.00 | 1.20 | 12.11 | 277.52 | 33.44 | 286.56 | 0.5642 | -602.0 | -472.7 | |
| 0.00 | 2.27 | 0.00 | 1.34 | 13.16 | 275.85 | 31.77 | 289.07 | 0.5445 | 665.0 | 475.0 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 13.65 | 275.93 | 31.84 | 289.91 | 0.5474 | 525.0 | 392.9 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 13.75 | 275.79 | 31.71 | 290.15 | 0.5459 | 658.0 | 571.1 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 11.93 | 275.53 | 31.45 | 286.99 | 0.5358 | 673.0 | 527.7 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 13.04 | 275.54 | 31.46 | 289.00 | 0.5398 | 754.0 | 579.5 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 14.95 | 274.07 | 29.99 | 293.21 | 0.5274 | 859.0 | 668.7 | |
| 0.00 | 1.73 | 0.00 | 1.01 | 15.52 | 274.05 | 29.97 | 294.23 | 0.5298 | 671.0 | 576.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
