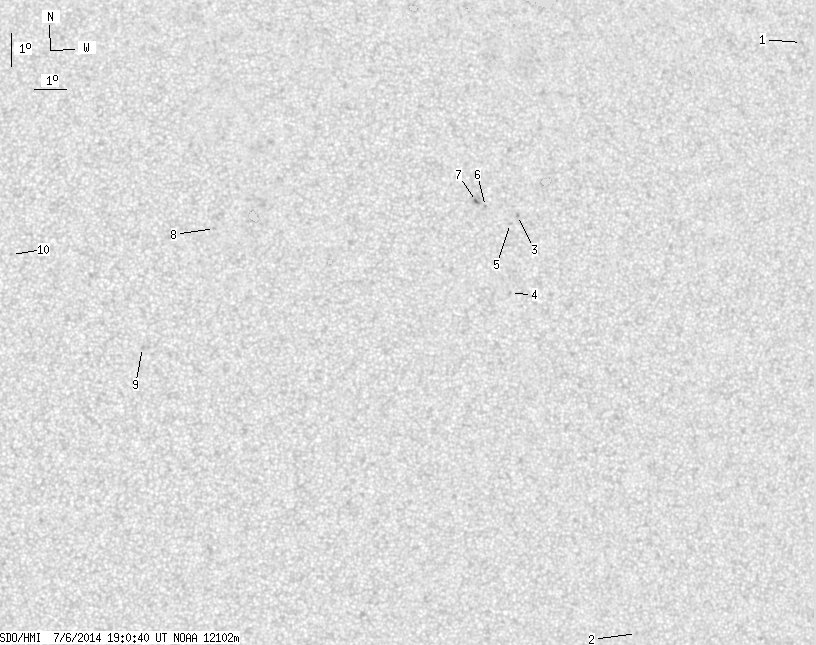

SDO HMI 2014-07-06 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 13.81 | 0.23 | 7.13 | 6.89 | 258.44 | 14.36 | 287.01 | 0.2601 | 697.6 | 600.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.71 | 13.04 | 270.56 | 26.48 | 291.66 | 0.4692 | 803.0 | 671.5 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -4.90 | 264.41 | 20.33 | 247.73 | 0.3756 | 628.0 | 493.7 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 7.94 | 260.69 | 16.61 | 285.90 | 0.2956 | 841.0 | 655.1 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 5.57 | 260.38 | 16.30 | 277.98 | 0.2833 | 804.0 | 645.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 7.70 | 260.46 | 16.37 | 285.29 | 0.2909 | 795.0 | 555.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 8.24 | 259.68 | 15.60 | 287.80 | 0.2807 | 857.0 | 652.2 | |
| 0.45 | 2.72 | 0.23 | 1.40 | 8.39 | 259.40 | 15.31 | 288.63 | 0.2770 | 1111.8 | 755.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 7.67 | 251.15 | 7.07 | 301.22 | 0.1432 | 937.0 | 745.5 | |
| 0.00 | 1.82 | 0.00 | 0.90 | 4.06 | 248.89 | 4.81 | 277.28 | 0.0847 | 900.0 | 720.2 | |
| 0.00 | 0.73 | 0.00 | 0.36 | 6.91 | 244.89 | 0.81 | 346.91 | 0.0621 | -796.0 | -671.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
