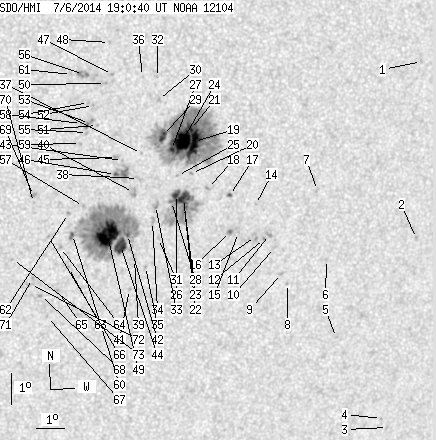

SDO HMI 2014-07-06 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.42 | 731.73 | 67.40 | 412.98 | -11.80 | 268.33 | 24.25 | 237.28 | 0.4803 | 248.9 | 72.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.72 | -8.12 | 277.43 | 33.35 | 250.66 | 0.5789 | 763.0 | 608.0 | |
| 0.00 | 1.73 | 0.00 | 1.08 | -13.70 | 277.96 | 33.87 | 242.22 | 0.6142 | 692.0 | 577.3 | |
| 0.00 | 1.36 | 0.00 | 0.89 | -19.84 | 278.08 | 34.00 | 233.74 | 0.6546 | 615.0 | 512.9 | |
| 0.00 | 0.73 | 0.00 | 0.47 | -19.53 | 277.77 | 33.69 | 233.92 | 0.6492 | 675.0 | 612.5 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -16.80 | 275.49 | 31.40 | 235.89 | 0.6047 | 690.0 | 586.4 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -14.26 | 274.69 | 30.61 | 239.02 | 0.5778 | 753.0 | 628.9 | |
| 0.00 | 1.91 | 0.00 | 1.13 | -12.05 | 274.07 | 29.98 | 242.03 | 0.5555 | 652.0 | 555.6 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -14.99 | 273.38 | 29.30 | 236.83 | 0.5669 | 703.0 | 585.9 | |
| 0.00 | 1.82 | 0.00 | 1.09 | -14.66 | 273.12 | 29.03 | 237.11 | 0.5613 | 719.0 | 615.0 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -13.82 | 272.75 | 28.66 | 238.11 | 0.5507 | 452.0 | 439.7 | |
| 0.00 | 2.91 | 0.00 | 1.71 | -13.40 | 272.52 | 28.43 | 238.58 | 0.5448 | 801.0 | 696.1 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -13.52 | 272.35 | 28.27 | 238.24 | 0.5436 | 817.0 | 709.7 | |
| 0.00 | 3.90 | 0.00 | 2.29 | -13.44 | 272.02 | 27.94 | 238.07 | 0.5390 | 684.0 | 624.4 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -12.42 | 271.90 | 27.82 | 239.64 | 0.5302 | 648.0 | 554.4 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -13.30 | 271.40 | 27.32 | 237.75 | 0.5302 | 746.0 | 658.9 | |
| 0.64 | 2.36 | 0.37 | 1.37 | -13.26 | 271.12 | 27.03 | 237.55 | 0.5263 | 895.0 | 745.7 | |
| 0.82 | 1.82 | 0.47 | 1.05 | -12.11 | 270.95 | 26.87 | 239.32 | 0.5158 | 772.8 | 657.4 | |
| 0.00 | 1.82 | 0.00 | 1.04 | -11.87 | 270.16 | 26.07 | 239.01 | 0.5038 | 725.0 | 517.5 | |
| 15.53 | 285.99 | 8.79 | 161.45 | -10.37 | 269.57 | 25.48 | 241.13 | 0.4852 | 1113.0 | 443.1 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -11.38 | 269.56 | 25.47 | 239.30 | 0.4923 | 660.0 | 463.9 | |
| 2.09 | -19.00 | 1.18 | -19.00 | -9.99 | 269.40 | 25.31 | 241.68 | 0.4803 | 1235.6 | 999999 | |
| 2.00 | 84.07 | 1.14 | 47.96 | -12.45 | 269.42 | 25.34 | 237.28 | 0.4987 | 609.0 | 169.3 | |
| 12.44 | -22.00 | 7.09 | -22.00 | -12.16 | 269.36 | 25.27 | 237.72 | 0.4956 | 895.6 | 999999 | |
| 22.70 | -19.00 | 12.80 | -19.00 | -10.33 | 269.15 | 25.07 | 240.82 | 0.4794 | 1453.1 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -11.43 | 269.08 | 25.00 | 238.74 | 0.4865 | 802.0 | 599.1 | |
| 4.45 | -22.00 | 2.53 | -22.00 | -12.03 | 269.10 | 25.02 | 237.70 | 0.4913 | 1085.0 | 999999 | |
| 2.27 | -19.00 | 1.28 | -19.00 | -10.60 | 268.80 | 24.72 | 239.97 | 0.4766 | 1181.6 | 999999 | |
| 0.27 | -22.00 | 0.15 | -22.00 | -12.25 | 268.95 | 24.87 | 237.16 | 0.4911 | 879.3 | 999999 | |
| 6.72 | -19.00 | 3.76 | -19.00 | -10.15 | 268.46 | 24.37 | 240.47 | 0.4688 | 1244.7 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -9.02 | 268.24 | 24.15 | 242.43 | 0.4577 | 761.0 | 604.0 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -13.41 | 268.63 | 24.54 | 234.81 | 0.4964 | -454.0 | -356.3 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -8.34 | 268.16 | 24.07 | 243.72 | 0.4519 | -765.0 | -620.9 | |
| 0.00 | 3.54 | 0.00 | 2.00 | -12.36 | 268.41 | 24.33 | 236.40 | 0.4851 | 597.0 | 601.3 | |
| 0.00 | 3.36 | 0.00 | 1.91 | -12.86 | 268.36 | 24.28 | 235.46 | 0.4886 | 418.0 | 410.9 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -14.29 | 268.28 | 24.19 | 232.95 | 0.4996 | -833.0 | -655.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -8.29 | 267.65 | 23.56 | 243.33 | 0.4445 | 420.0 | 346.3 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -10.70 | 267.79 | 23.70 | 238.75 | 0.4639 | 740.0 | 587.3 | |
| 0.00 | 3.63 | 0.00 | 2.04 | -11.49 | 267.75 | 23.67 | 237.26 | 0.4696 | 596.0 | 451.4 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -14.06 | 267.87 | 23.79 | 232.88 | 0.4926 | -676.0 | -539.7 | |
| 0.00 | 6.17 | 0.00 | 3.46 | -11.93 | 267.62 | 23.54 | 236.32 | 0.4715 | -746.0 | -631.2 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -15.02 | 267.81 | 23.72 | 231.23 | 0.5003 | -720.0 | -554.7 | |
| 1.00 | 244.50 | 0.56 | 137.24 | -13.25 | 267.55 | 23.46 | 233.88 | 0.4817 | -920.9 | -546.7 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -10.90 | 267.16 | 23.08 | 237.69 | 0.4573 | 708.0 | 573.5 | |
| 12.62 | -42.00 | 7.13 | -42.00 | -13.60 | 267.34 | 23.26 | 233.06 | 0.4821 | -923.6 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.36 | -10.81 | 266.95 | 22.87 | 237.65 | 0.4537 | 870.0 | 774.2 | |
| 1.00 | 15.62 | 0.56 | 8.71 | -11.34 | 266.96 | 22.88 | 236.65 | 0.4582 | 836.4 | 478.6 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -8.20 | 266.64 | 22.55 | 242.50 | 0.4297 | 909.0 | 789.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -7.21 | 266.48 | 22.40 | 244.46 | 0.4207 | 756.0 | 670.2 | |
| 33.96 | -42.00 | 19.08 | -42.00 | -13.24 | 266.86 | 22.78 | 233.12 | 0.4731 | -1336.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -8.48 | 266.42 | 22.34 | 241.70 | 0.4287 | 829.0 | 702.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -9.78 | 266.24 | 22.15 | 238.83 | 0.4361 | 752.0 | 544.4 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -9.15 | 266.06 | 21.98 | 239.91 | 0.4288 | 866.0 | 683.8 | |
| 0.00 | 4.36 | 0.00 | 2.39 | -9.72 | 265.97 | 21.88 | 238.66 | 0.4319 | 838.0 | 790.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -9.06 | 265.89 | 21.81 | 239.92 | 0.4257 | 816.0 | 653.3 | |
| 0.00 | 1.91 | 0.00 | 1.05 | -10.00 | 265.92 | 21.83 | 238.05 | 0.4335 | 536.0 | 474.9 | |
| 0.00 | 6.63 | 0.00 | 3.61 | -8.18 | 265.67 | 21.59 | 241.52 | 0.4161 | 791.0 | 870.1 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -12.33 | 265.97 | 21.88 | 233.66 | 0.4539 | -201.0 | -235.6 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -9.71 | 265.70 | 21.61 | 238.37 | 0.4282 | 844.0 | 704.9 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -10.34 | 265.71 | 21.62 | 237.13 | 0.4335 | 700.0 | 563.1 | |
| 0.91 | -42.00 | 0.51 | -42.00 | -13.21 | 265.68 | 21.59 | 231.72 | 0.4582 | -941.8 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -8.17 | 265.27 | 21.19 | 241.09 | 0.4104 | 749.0 | 537.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -12.54 | 265.48 | 21.40 | 232.68 | 0.4497 | -758.0 | -628.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -14.26 | 265.64 | 21.56 | 229.86 | 0.4677 | -724.0 | -513.0 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -13.61 | 265.31 | 21.22 | 230.54 | 0.4576 | -491.0 | -360.9 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -14.99 | 265.34 | 21.26 | 228.26 | 0.4713 | -814.0 | -716.4 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -13.25 | 264.87 | 20.79 | 230.60 | 0.4489 | 565.0 | 377.7 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -15.82 | 265.09 | 21.01 | 226.59 | 0.4767 | -703.0 | -540.6 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -15.13 | 264.78 | 20.70 | 227.27 | 0.4664 | -773.0 | -668.5 | |
| 0.00 | 2.45 | 0.00 | 1.34 | -11.94 | 264.26 | 20.18 | 232.19 | 0.4290 | -923.0 | -824.0 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -12.16 | 264.28 | 20.20 | 231.79 | 0.4313 | -593.0 | -536.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -14.58 | 264.46 | 20.37 | 227.75 | 0.4571 | -855.0 | -703.9 | |
| 0.00 | 2.63 | 0.00 | 1.47 | -14.77 | 264.41 | 20.33 | 227.36 | 0.4585 | -761.0 | -657.3 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -13.96 | 263.73 | 19.65 | 227.79 | 0.4424 | -741.0 | -578.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
