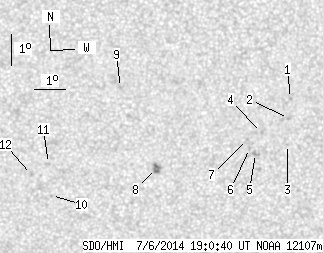

SDO HMI 2014-07-06 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.15 | 0.00 | 10.74 | -14.06 | 256.61 | 12.52 | 214.75 | 0.3700 | 385.2 | 499.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.63 | -12.48 | 259.74 | 15.66 | 224.05 | 0.3807 | 771.0 | 562.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -13.11 | 259.72 | 15.63 | 222.84 | 0.3877 | 793.0 | 605.2 | |
| 0.00 | 0.64 | 0.00 | 0.34 | -13.94 | 259.74 | 15.66 | 221.42 | 0.3976 | 566.0 | 440.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -13.54 | 258.87 | 14.79 | 220.50 | 0.3837 | 782.0 | 623.2 | |
| 0.00 | 2.72 | 0.00 | 1.46 | -14.21 | 258.72 | 14.63 | 219.07 | 0.3902 | 770.0 | 660.2 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -14.05 | 258.51 | 14.43 | 218.95 | 0.3861 | 945.0 | 792.6 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -13.76 | 258.43 | 14.35 | 219.28 | 0.3817 | 761.0 | 600.2 | |
| 0.00 | 5.99 | 0.00 | 3.19 | -14.64 | 255.54 | 11.46 | 211.84 | 0.3660 | 976.0 | 873.9 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -12.05 | 254.28 | 10.20 | 213.01 | 0.3192 | 743.0 | 621.7 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.47 | 252.22 | 8.13 | 202.84 | 0.3529 | -647.0 | -489.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -14.44 | 252.09 | 8.00 | 203.72 | 0.3366 | -892.0 | -673.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -14.79 | 251.56 | 7.47 | 201.91 | 0.3385 | -945.0 | -789.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
