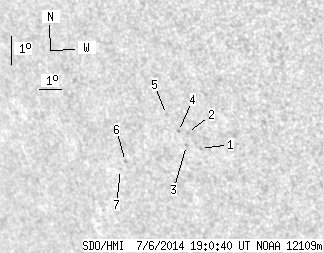

SDO HMI 2014-07-06 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.35 | 0.00 | 5.36 | -20.99 | 202.76 | -41.32 | 122.98 | 0.7369 | 591.9 | 501.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.04 | -21.18 | 203.87 | -40.21 | 123.85 | 0.7271 | 633.0 | 540.3 | |
| 0.00 | 1.45 | 0.00 | 1.05 | -20.67 | 203.48 | -40.60 | 122.99 | 0.7282 | 554.0 | 458.5 | |
| 0.00 | 1.27 | 0.00 | 0.92 | -21.11 | 203.29 | -40.79 | 123.42 | 0.7324 | 653.0 | 565.3 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -20.65 | 203.10 | -40.98 | 122.74 | 0.7319 | 619.0 | 566.7 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -20.10 | 202.76 | -41.32 | 121.88 | 0.7325 | 587.0 | 439.6 | |
| 0.00 | 1.09 | 0.00 | 0.83 | -21.77 | 200.35 | -43.74 | 122.60 | 0.7644 | 582.0 | 447.2 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -22.05 | 200.01 | -44.08 | 122.76 | 0.7690 | 515.0 | 481.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
