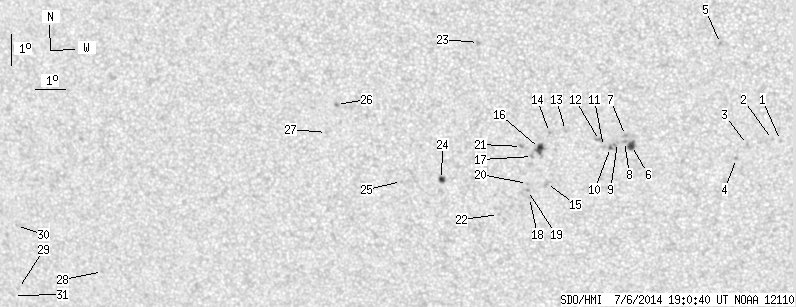

SDO HMI 2014-07-06 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.72 | 60.47 | 5.73 | 32.58 | -15.98 | 232.68 | -11.41 | 151.72 | 0.3883 | -27.5 | 10.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.39 | 241.00 | -3.08 | 170.88 | 0.3286 | 758.0 | 566.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -15.36 | 240.75 | -3.34 | 170.13 | 0.3288 | 922.0 | 685.5 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -15.52 | 239.95 | -4.13 | 167.95 | 0.3340 | 928.0 | 794.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -15.98 | 239.59 | -4.49 | 167.25 | 0.3425 | 829.0 | 698.8 | |
| 0.00 | 2.00 | 0.00 | 1.03 | -12.30 | 239.17 | -4.91 | 162.86 | 0.2853 | 917.0 | 683.9 | |
| 3.54 | 6.08 | 1.87 | 3.22 | -15.58 | 236.26 | -7.82 | 158.07 | 0.3526 | 961.3 | 812.7 | |
| 0.00 | 2.36 | 0.00 | 1.25 | -15.26 | 236.08 | -8.00 | 157.26 | 0.3488 | 972.0 | 790.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -15.45 | 236.04 | -8.04 | 157.38 | 0.3520 | 900.0 | 791.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.48 | 235.82 | -8.27 | 156.85 | 0.3540 | 899.0 | 749.8 | |
| 0.64 | 4.36 | 0.34 | 2.31 | -15.65 | 235.59 | -8.50 | 156.47 | 0.3579 | 874.3 | 713.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.62 | 235.36 | -8.72 | 155.89 | 0.3589 | 603.0 | 517.8 | |
| 0.00 | 3.18 | 0.00 | 1.68 | -15.42 | 235.25 | -8.84 | 155.36 | 0.3569 | 916.0 | 722.0 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -15.11 | 234.17 | -9.91 | 152.38 | 0.3600 | 636.0 | 519.8 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -15.18 | 233.65 | -10.43 | 151.27 | 0.3650 | 835.0 | 653.3 | |
| 0.00 | 4.27 | 0.00 | 2.29 | -16.83 | 233.47 | -10.62 | 152.98 | 0.3898 | -830.0 | -644.9 | |
| 4.18 | 5.90 | 2.23 | 3.15 | -15.70 | 233.31 | -10.78 | 151.18 | 0.3751 | -1075.1 | -833.7 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -15.96 | 233.07 | -11.02 | 150.99 | 0.3806 | -769.0 | -657.5 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -17.29 | 232.89 | -11.20 | 152.31 | 0.4007 | -792.0 | -559.8 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -17.07 | 232.84 | -11.25 | 151.92 | 0.3978 | -961.0 | -809.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -16.84 | 232.85 | -11.23 | 151.67 | 0.3946 | -938.0 | -756.1 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -15.64 | 232.73 | -11.36 | 149.83 | 0.3789 | -1024.0 | -894.7 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -17.86 | 231.84 | -12.25 | 150.87 | 0.4165 | -639.0 | -508.2 | |
| 0.00 | 2.00 | 0.00 | 1.05 | -12.33 | 231.53 | -12.56 | 141.89 | 0.3456 | -865.0 | -711.8 | |
| 2.36 | 3.63 | 1.29 | 1.98 | -16.74 | 230.05 | -14.03 | 145.95 | 0.4165 | -1045.6 | -775.2 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -16.83 | 228.73 | -15.36 | 143.67 | 0.4297 | 627.0 | 495.3 | |
| 0.00 | 2.09 | 0.00 | 1.14 | -14.38 | 226.79 | -17.30 | 136.52 | 0.4203 | -949.0 | -795.3 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -15.28 | 226.38 | -17.70 | 137.36 | 0.4349 | -792.0 | -623.5 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -20.01 | 218.03 | -26.05 | 133.56 | 0.5717 | -600.0 | -565.7 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -20.67 | 214.81 | -29.27 | 131.28 | 0.6109 | -520.0 | -325.0 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -18.57 | 215.16 | -28.92 | 128.75 | 0.5901 | -637.0 | -485.8 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -20.91 | 214.57 | -29.51 | 131.37 | 0.6154 | -575.0 | -433.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
