SDO HMI 2014-07-06 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.27 | 13.88 | 2.14 | 6.97 | 7.41 | 252.47 | 8.39 | 295.64 | 0.1618 | 673.4 | 397.1 | |
|
previous
or next observation for the same group /

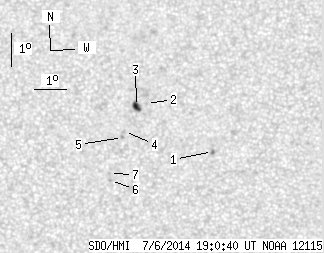

back to the solar disc SDO HMI 2014-07-06 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.82 | 6.63 | 254.70 | 10.62 | 287.09 | 0.1924 | -1035.0 | -909.1 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 8.12 | 252.68 | 8.60 | 298.94 | 0.1699 | 778.0 | 537.7 | |
| 4.27 | 6.26 | 2.14 | 3.15 | 8.03 | 252.37 | 8.29 | 299.36 | 0.1645 | 1114.2 | 801.3 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 7.27 | 251.98 | 7.90 | 296.17 | 0.1525 | 750.0 | 531.2 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 7.09 | 251.92 | 7.83 | 295.25 | 0.1502 | 933.0 | 761.5 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 5.78 | 251.52 | 7.44 | 287.63 | 0.1358 | 796.0 | 594.6 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 5.99 | 251.50 | 7.41 | 289.19 | 0.1365 | 875.0 | 699.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
