SDO HMI 2014-07-06 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.82 | 11.17 | 1.42 | 8.88 | -7.48 | 293.94 | 50.41 | 257.59 | 0.7845 | -68.8 | 3.9 | |
|
previous
or next observation for the same group /

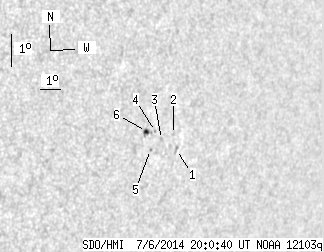

back to the solar disc SDO HMI 2014-07-06 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.45 | 0.00 | 1.99 | -7.86 | 294.89 | 51.36 | 257.33 | 0.7952 | 540.0 | 401.8 | |
| 0.00 | 0.91 | 0.00 | 0.73 | -7.38 | 294.66 | 51.13 | 257.87 | 0.7920 | 201.0 | 159.7 | |
| 0.00 | 1.45 | 0.00 | 1.16 | -7.51 | 294.09 | 50.56 | 257.58 | 0.7863 | 195.0 | 167.9 | |
| 0.00 | 0.73 | 0.00 | 0.58 | -7.25 | 293.76 | 50.23 | 257.84 | 0.7822 | -398.0 | -293.2 | |
| 0.00 | 1.09 | 0.00 | 0.86 | -7.80 | 293.61 | 50.08 | 257.11 | 0.7817 | -246.0 | -267.3 | |
| 1.82 | 4.54 | 1.42 | 3.56 | -7.23 | 293.32 | 49.80 | 257.76 | 0.7775 | -516.7 | -320.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
