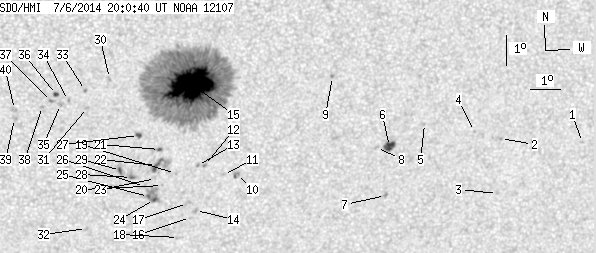

SDO HMI 2014-07-06 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.85 | 659.75 | 61.54 | 362.75 | -19.31 | 255.49 | 11.96 | 206.80 | 0.4350 | 746.3 | 315.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.60 | -21.12 | 269.16 | 25.63 | 224.50 | 0.5778 | 641.0 | 475.2 | |
| 0.00 | 1.82 | 0.00 | 1.07 | -20.91 | 266.18 | 22.65 | 221.38 | 0.5463 | 803.0 | 677.2 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -22.77 | 266.39 | 22.86 | 219.29 | 0.5677 | 569.0 | 387.4 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -20.65 | 265.23 | 21.70 | 220.53 | 0.5344 | 744.0 | 557.8 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -20.34 | 263.44 | 19.91 | 218.58 | 0.5141 | 539.0 | 434.2 | |
| 6.26 | 8.90 | 3.61 | 5.13 | -21.09 | 262.33 | 18.80 | 216.09 | 0.5125 | 903.9 | 650.4 | |
| 0.00 | 2.36 | 0.00 | 1.38 | -22.74 | 262.42 | 18.89 | 214.24 | 0.5326 | 744.0 | 640.3 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -21.11 | 261.88 | 18.35 | 215.42 | 0.5089 | 622.0 | 509.6 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -18.72 | 260.12 | 16.59 | 215.78 | 0.4644 | -826.0 | -629.1 | |
| 0.00 | 3.90 | 0.00 | 2.21 | -21.93 | 257.20 | 13.67 | 207.16 | 0.4822 | -1109.0 | -789.3 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -21.92 | 256.76 | 13.23 | 206.43 | 0.4791 | -793.0 | -553.1 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -21.61 | 256.09 | 12.56 | 205.58 | 0.4703 | -999.0 | -815.4 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -21.60 | 255.86 | 12.33 | 205.17 | 0.4687 | -846.0 | -745.2 | |
| 0.00 | 2.18 | 0.00 | 1.24 | -23.13 | 255.93 | 12.40 | 203.86 | 0.4901 | -857.0 | -752.5 | |
| 94.87 | 554.90 | 51.98 | 303.94 | -18.90 | 255.45 | 11.92 | 207.25 | 0.4285 | 1468.9 | 423.4 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -23.37 | 255.78 | 12.25 | 203.40 | 0.4924 | -630.0 | -460.4 | |
| 0.00 | 3.18 | 0.00 | 1.80 | -22.89 | 255.63 | 12.10 | 203.58 | 0.4849 | -717.0 | -666.9 | |
| 0.00 | 2.36 | 0.00 | 1.35 | -24.05 | 255.43 | 11.90 | 202.24 | 0.4998 | -579.0 | -426.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -21.86 | 255.14 | 11.61 | 203.64 | 0.4677 | 123.0 | 227.5 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.26 | 254.74 | 11.21 | 202.56 | 0.4709 | -736.0 | -556.0 | |
| 0.82 | 2.91 | 0.45 | 1.61 | -21.05 | 254.54 | 11.01 | 203.31 | 0.4525 | 754.3 | 525.0 | |
| 3.27 | 12.17 | 1.82 | 6.78 | -21.58 | 254.48 | 10.95 | 202.70 | 0.4598 | 703.0 | 125.2 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -22.02 | 254.48 | 10.95 | 202.31 | 0.4660 | 390.0 | 229.3 | |
| 1.45 | 16.80 | 0.82 | 9.44 | -22.73 | 254.51 | 10.98 | 201.74 | 0.4762 | -1099.6 | -604.5 | |
| 0.64 | -24.00 | 0.36 | -24.00 | -22.63 | 254.30 | 10.77 | 201.45 | 0.4735 | -1098.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -22.29 | 254.14 | 10.61 | 201.44 | 0.4677 | 408.0 | 212.9 | |
| 1.36 | 2.81 | 0.75 | 1.55 | -20.57 | 253.81 | 10.28 | 202.35 | 0.4413 | 848.5 | 633.4 | |
| 0.64 | 4.36 | 0.35 | 2.43 | -21.98 | 253.68 | 10.15 | 200.86 | 0.4607 | -794.4 | -373.5 | |
| 1.36 | 2.72 | 0.76 | 1.51 | -21.74 | 253.29 | 9.77 | 200.34 | 0.4552 | -908.5 | -719.7 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -18.67 | 252.75 | 9.22 | 201.97 | 0.4072 | -683.0 | -466.5 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -19.62 | 252.08 | 8.55 | 199.68 | 0.4175 | 801.0 | 683.8 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -23.70 | 252.29 | 8.76 | 197.01 | 0.4787 | -818.0 | -650.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.06 | 251.98 | 8.45 | 199.97 | 0.4086 | -866.0 | -742.8 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -19.38 | 251.45 | 7.92 | 198.52 | 0.4107 | -646.0 | -505.6 | |
| 0.00 | 2.72 | 0.00 | 1.48 | -19.51 | 251.19 | 7.66 | 197.87 | 0.4113 | 403.0 | 258.7 | |
| 1.18 | 2.81 | 0.64 | 1.52 | -19.18 | 251.05 | 7.52 | 197.81 | 0.4056 | -925.9 | -704.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -19.41 | 250.89 | 7.36 | 197.29 | 0.4084 | -770.0 | -622.7 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -19.57 | 250.61 | 7.08 | 196.54 | 0.4095 | -710.0 | -544.5 | |
| 0.00 | 2.36 | 0.00 | 1.28 | -19.96 | 249.71 | 6.18 | 194.29 | 0.4117 | -710.0 | -506.2 | |
| 0.00 | 3.54 | 0.00 | 1.92 | -19.66 | 249.70 | 6.17 | 194.46 | 0.4070 | -812.0 | -664.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
