SDO HMI 2014-07-06 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.36 | 66.39 | 5.52 | 35.38 | -15.60 | 233.89 | -9.64 | 154.15 | 0.3674 | -107.3 | -25.9 | |
|
previous
or next observation for the same group /

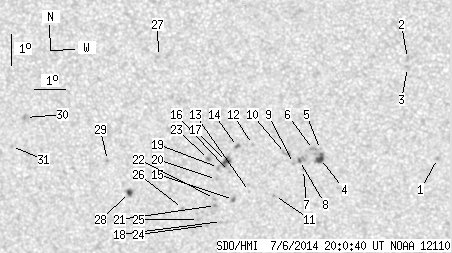

back to the solar disc SDO HMI 2014-07-06 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.55 | 240.03 | -3.50 | 169.77 | 0.3325 | 973.0 | 734.8 | |
| 0.00 | 2.09 | 0.00 | 1.08 | -12.36 | 239.14 | -4.38 | 164.68 | 0.2839 | 891.0 | 733.7 | |
| 0.00 | 2.18 | 0.00 | 1.13 | -12.64 | 239.14 | -4.39 | 164.93 | 0.2885 | 904.0 | 597.1 | |
| 4.09 | 8.35 | 2.16 | 4.41 | -15.57 | 236.31 | -7.22 | 159.62 | 0.3490 | 922.6 | 789.5 | |
| 0.00 | 1.91 | 0.00 | 1.01 | -15.28 | 236.32 | -7.21 | 159.34 | 0.3445 | 852.0 | 435.1 | |
| 0.00 | 2.09 | 0.00 | 1.10 | -15.28 | 236.10 | -7.43 | 158.76 | 0.3458 | 946.0 | 818.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -15.93 | 235.76 | -7.77 | 158.58 | 0.3577 | 652.0 | 495.3 | |
| 0.64 | 4.81 | 0.34 | 2.55 | -15.64 | 235.64 | -7.89 | 157.98 | 0.3540 | 866.1 | 799.7 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -15.74 | 235.44 | -8.09 | 157.59 | 0.3567 | 528.0 | 452.0 | |
| 0.00 | 3.54 | 0.00 | 1.87 | -15.42 | 235.20 | -8.33 | 156.63 | 0.3534 | 530.0 | 645.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -16.78 | 234.79 | -8.74 | 157.15 | 0.3764 | 711.0 | 573.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -15.13 | 234.16 | -9.37 | 153.72 | 0.3564 | 770.0 | 554.9 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -16.65 | 233.99 | -9.54 | 155.17 | 0.3798 | -641.0 | -481.2 | |
| 0.45 | 1.91 | 0.24 | 1.01 | -15.20 | 233.68 | -9.85 | 152.65 | 0.3610 | 830.8 | 633.6 | |
| 0.00 | 2.09 | 0.00 | 1.12 | -16.92 | 233.46 | -10.07 | 154.29 | 0.3873 | -1017.0 | -872.3 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -16.01 | 233.38 | -10.15 | 153.01 | 0.3748 | -756.0 | -632.9 | |
| 2.91 | 6.45 | 1.55 | 3.44 | -15.69 | 233.30 | -10.23 | 152.41 | 0.3708 | -1072.1 | -825.0 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -17.64 | 233.03 | -10.50 | 154.19 | 0.4007 | -315.0 | -303.6 | |
| 0.00 | 1.91 | 0.00 | 1.02 | -15.89 | 233.03 | -10.50 | 152.06 | 0.3756 | -869.0 | -722.4 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -16.28 | 232.94 | -10.59 | 152.37 | 0.3818 | -746.0 | -541.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -17.12 | 232.86 | -10.67 | 153.23 | 0.3944 | -962.0 | -816.3 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -16.89 | 232.84 | -10.69 | 152.92 | 0.3913 | -626.0 | -612.6 | |
| 0.00 | 1.91 | 0.00 | 1.02 | -15.63 | 232.72 | -10.81 | 151.03 | 0.3744 | -1042.0 | -842.6 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.78 | 232.53 | -11.00 | 153.30 | 0.4061 | -782.0 | -624.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -17.58 | 232.28 | -11.25 | 152.56 | 0.4052 | -780.0 | -676.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -17.23 | 231.78 | -11.75 | 151.10 | 0.4040 | -802.0 | -593.5 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -12.36 | 231.29 | -12.24 | 142.65 | 0.3428 | -798.0 | -661.7 | |
| 2.27 | 4.09 | 1.23 | 2.22 | -16.73 | 230.09 | -13.44 | 147.07 | 0.4112 | -1117.0 | -819.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -15.71 | 229.44 | -14.09 | 144.35 | 0.4037 | -675.0 | -520.3 | |
| 0.00 | 3.18 | 0.00 | 1.73 | -14.36 | 226.86 | -16.67 | 137.55 | 0.4134 | -885.0 | -690.3 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -15.30 | 226.32 | -17.21 | 138.20 | 0.4299 | -806.0 | -698.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
