SDO HMI 2014-07-06 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.63 | 39.60 | 14.64 | 36.85 | -13.14 | 298.72 | 55.75 | 252.09 | 0.8478 | 138.4 | 25.9 | |
|
previous
or next observation for the same group /

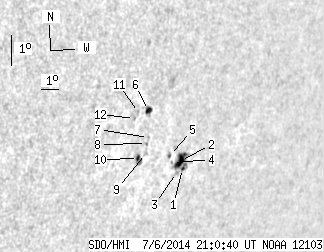

back to the solar disc SDO HMI 2014-07-06 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.09 | 17.34 | 1.05 | 16.64 | -13.76 | 299.96 | 56.99 | 251.70 | 0.8599 | 438.9 | 327.9 | |
| 9.08 | -1.00 | 8.69 | -1.00 | -13.49 | 299.75 | 56.77 | 251.95 | 0.8576 | 654.1 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.83 | -13.87 | 299.66 | 56.68 | 251.49 | 0.8575 | 395.0 | 419.0 | |
| 0.00 | 1.36 | 0.00 | 1.29 | -13.53 | 299.30 | 56.33 | 251.79 | 0.8538 | 672.0 | 522.7 | |
| 0.64 | 1.91 | 0.60 | 1.79 | -13.30 | 299.05 | 56.07 | 251.99 | 0.8512 | 632.7 | 534.7 | |
| 3.09 | 5.54 | 2.75 | 4.94 | -11.79 | 297.40 | 54.43 | 253.33 | 0.8333 | -464.7 | -217.7 | |
| 0.00 | 0.91 | 0.00 | 0.82 | -12.65 | 297.67 | 54.69 | 252.38 | 0.8375 | -431.0 | -329.4 | |
| 0.00 | 1.27 | 0.00 | 1.15 | -12.84 | 297.62 | 54.65 | 252.15 | 0.8375 | -492.0 | -342.8 | |
| 0.00 | 1.91 | 0.00 | 1.73 | -13.16 | 297.67 | 54.70 | 251.79 | 0.8386 | -445.0 | -268.5 | |
| 1.73 | 5.72 | 1.55 | 5.14 | -13.30 | 297.34 | 54.36 | 251.54 | 0.8359 | -534.0 | -400.5 | |
| 0.00 | 1.00 | 0.00 | 0.88 | -11.83 | 296.88 | 53.91 | 253.15 | 0.8285 | -544.0 | -455.7 | |
| 0.00 | 0.73 | 0.00 | 0.64 | -12.01 | 296.72 | 53.75 | 252.90 | 0.8274 | -580.0 | -504.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
