SDO HMI 2014-07-06 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 120.41 | 721.24 | 68.48 | 410.87 | -11.86 | 268.37 | 25.40 | 238.33 | 0.4957 | 174.0 | 89.5 | |
|
previous
or next observation for the same group /

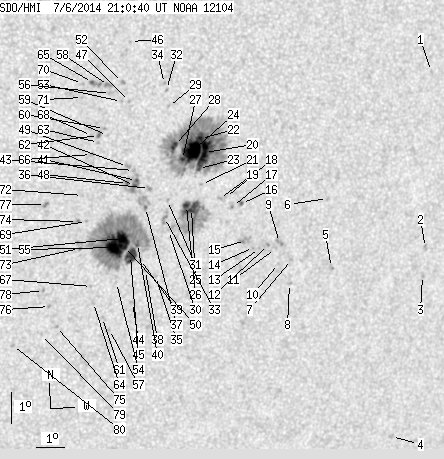

back to the solar disc SDO HMI 2014-07-06 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.67 | -8.16 | 277.52 | 34.54 | 251.20 | 0.5951 | 701.0 | 571.9 | |
| 0.00 | 2.45 | 0.00 | 1.56 | -13.71 | 278.03 | 35.06 | 242.97 | 0.6287 | 737.0 | 529.7 | |
| 0.00 | 1.91 | 0.00 | 1.22 | -14.60 | 278.07 | 35.10 | 241.70 | 0.6342 | 736.0 | 495.8 | |
| 0.00 | 2.36 | 0.00 | 1.56 | -19.83 | 278.00 | 35.03 | 234.48 | 0.6656 | 652.0 | 517.8 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -14.22 | 274.57 | 31.60 | 239.83 | 0.5897 | 703.0 | 702.3 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -12.02 | 274.11 | 31.14 | 242.93 | 0.5702 | 691.0 | 629.2 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -13.92 | 273.06 | 30.09 | 239.12 | 0.5691 | 664.0 | 563.9 | |
| 0.00 | 1.91 | 0.00 | 1.15 | -14.69 | 273.10 | 30.13 | 237.97 | 0.5749 | 733.0 | 590.0 | |
| 0.00 | 3.90 | 0.00 | 2.33 | -13.36 | 272.55 | 29.58 | 239.59 | 0.5590 | 757.0 | 683.7 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -14.03 | 272.61 | 29.63 | 238.57 | 0.5643 | 517.0 | 435.8 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -13.55 | 272.43 | 29.46 | 239.19 | 0.5588 | 647.0 | 527.4 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -13.41 | 272.16 | 29.19 | 239.18 | 0.5545 | 895.0 | 824.1 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -13.53 | 271.85 | 28.88 | 238.74 | 0.5514 | 758.0 | 605.0 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -13.49 | 271.63 | 28.66 | 238.61 | 0.5484 | 811.0 | 670.5 | |
| 0.00 | 6.99 | 0.00 | 4.12 | -13.26 | 271.32 | 28.34 | 238.71 | 0.5428 | 646.0 | 725.1 | |
| 0.64 | 2.00 | 0.37 | 1.17 | -12.08 | 271.03 | 28.06 | 240.42 | 0.5310 | 733.1 | 588.1 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -12.16 | 270.73 | 27.75 | 240.01 | 0.5276 | 829.0 | 680.9 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -11.87 | 270.45 | 27.47 | 240.26 | 0.5220 | 559.0 | 427.9 | |
| 0.00 | 1.91 | 0.00 | 1.10 | -11.89 | 270.24 | 27.27 | 240.04 | 0.5195 | 751.0 | 554.3 | |
| 15.53 | 270.46 | 8.87 | 154.07 | -10.43 | 269.57 | 26.60 | 242.02 | 0.5006 | 1043.9 | 465.3 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -11.43 | 269.56 | 26.59 | 240.23 | 0.5074 | 607.0 | 475.8 | |
| 1.91 | -20.00 | 1.09 | -20.00 | -9.98 | 269.39 | 26.42 | 242.67 | 0.4952 | 1259.2 | 999999 | |
| 1.91 | -20.00 | 1.09 | -20.00 | -10.92 | 269.41 | 26.43 | 240.98 | 0.5018 | 706.9 | 999999 | |
| 24.88 | -20.00 | 14.16 | -20.00 | -10.35 | 269.15 | 26.17 | 241.78 | 0.4944 | 1403.0 | 999999 | |
| 9.71 | 74.18 | 5.59 | 42.73 | -12.18 | 269.29 | 26.32 | 238.68 | 0.5093 | 915.8 | 255.3 | |
| 3.09 | -25.00 | 1.77 | -25.00 | -12.08 | 269.11 | 26.13 | 238.68 | 0.5062 | 1056.7 | 999999 | |
| 1.82 | -20.00 | 1.03 | -20.00 | -10.63 | 268.83 | 25.85 | 240.99 | 0.4920 | 1164.8 | 999999 | |
| 3.81 | -20.00 | 2.16 | -20.00 | -10.18 | 268.51 | 25.54 | 241.52 | 0.4847 | 1273.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -8.95 | 268.21 | 25.24 | 243.56 | 0.4723 | 665.0 | 538.1 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -12.86 | 268.57 | 25.59 | 236.81 | 0.5052 | 397.0 | 222.5 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -11.90 | 268.43 | 25.46 | 238.33 | 0.4962 | 626.0 | 492.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -8.42 | 268.10 | 25.13 | 244.50 | 0.4673 | -498.0 | -526.5 | |
| 0.00 | 4.99 | 0.00 | 2.85 | -12.44 | 268.38 | 25.41 | 237.35 | 0.4996 | 689.0 | 565.4 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -8.23 | 268.02 | 25.05 | 244.80 | 0.4650 | -821.0 | -640.4 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -14.31 | 268.28 | 25.31 | 234.09 | 0.5134 | -762.0 | -561.1 | |
| 0.00 | 2.63 | 0.00 | 1.49 | -11.51 | 267.77 | 24.80 | 238.38 | 0.4846 | 586.0 | 488.2 | |
| 0.45 | 11.44 | 0.26 | 6.48 | -12.11 | 267.69 | 24.72 | 237.23 | 0.4882 | -988.4 | -459.0 | |
| 0.00 | 2.54 | 0.00 | 1.46 | -14.11 | 267.91 | 24.93 | 234.03 | 0.5072 | -588.0 | -379.6 | |
| 0.00 | 2.00 | 0.00 | 1.14 | -13.76 | 267.69 | 24.72 | 234.40 | 0.5016 | -685.0 | -526.0 | |
| 1.73 | 234.24 | 0.98 | 132.62 | -13.24 | 267.53 | 24.56 | 235.10 | 0.4953 | -919.2 | -526.5 | |
| 0.91 | 15.62 | 0.51 | 8.79 | -11.24 | 267.30 | 24.33 | 238.38 | 0.4765 | 798.3 | 359.9 | |
| 1.09 | -41.00 | 0.61 | -41.00 | -11.40 | 267.25 | 24.28 | 238.04 | 0.4770 | 534.9 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -10.93 | 267.17 | 24.20 | 238.83 | 0.4723 | 722.0 | 603.7 | |
| 0.00 | 2.18 | 0.00 | 1.25 | -15.13 | 267.58 | 24.60 | 232.03 | 0.5119 | -741.0 | -593.8 | |
| 12.08 | -40.00 | 6.88 | -40.00 | -13.62 | 267.33 | 24.36 | 234.24 | 0.4960 | -902.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -6.89 | 266.79 | 23.82 | 246.44 | 0.4392 | 797.0 | 600.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -8.76 | 266.87 | 23.90 | 242.69 | 0.4525 | 673.0 | 493.9 | |
| 0.45 | -41.00 | 0.25 | -41.00 | -11.33 | 267.01 | 24.03 | 237.91 | 0.4732 | 857.8 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.32 | -10.79 | 266.96 | 23.99 | 238.85 | 0.4685 | 986.0 | 784.3 | |
| 2.54 | -40.00 | 1.44 | -40.00 | -13.33 | 267.10 | 24.12 | 234.48 | 0.4906 | -1065.9 | 999999 | |
| 13.16 | -40.00 | 7.46 | -40.00 | -13.07 | 267.00 | 24.03 | 234.82 | 0.4872 | -1377.5 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.10 | -8.16 | 266.60 | 23.62 | 243.63 | 0.4446 | 957.0 | 797.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -8.75 | 266.60 | 23.63 | 242.44 | 0.4487 | 692.0 | 549.8 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -14.47 | 266.95 | 23.97 | 232.39 | 0.4986 | -610.0 | -408.2 | |
| 22.79 | -40.00 | 12.91 | -40.00 | -13.35 | 266.79 | 23.82 | 234.10 | 0.4870 | -1298.1 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.45 | -8.49 | 266.22 | 23.24 | 242.58 | 0.4415 | 766.0 | 668.1 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -15.98 | 266.89 | 23.91 | 229.91 | 0.5114 | -602.0 | -497.1 | |
| 0.00 | 3.63 | 0.00 | 2.00 | -8.24 | 266.13 | 23.16 | 243.01 | 0.4386 | 842.0 | 773.1 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -9.80 | 266.20 | 23.23 | 239.95 | 0.4509 | 560.0 | 418.6 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -9.58 | 266.09 | 23.11 | 240.27 | 0.4476 | 747.0 | 612.2 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -15.58 | 266.59 | 23.62 | 230.19 | 0.5044 | -628.0 | -515.7 | |
| 0.73 | 3.09 | 0.40 | 1.71 | -9.79 | 265.90 | 22.93 | 239.65 | 0.4467 | 921.8 | 793.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -10.01 | 265.92 | 22.94 | 239.23 | 0.4486 | 696.0 | 550.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -15.09 | 266.23 | 23.25 | 230.55 | 0.4956 | -670.0 | -616.5 | |
| 0.82 | 5.72 | 0.45 | 3.14 | -8.13 | 265.59 | 22.62 | 242.69 | 0.4303 | 1028.8 | 847.8 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -10.38 | 265.71 | 22.74 | 238.29 | 0.4487 | 663.0 | 632.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -14.58 | 266.10 | 23.13 | 231.24 | 0.4894 | -473.0 | -362.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -9.79 | 265.67 | 22.69 | 239.40 | 0.4435 | 711.0 | 609.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -12.50 | 265.72 | 22.74 | 234.37 | 0.4663 | -912.0 | -756.6 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -8.16 | 265.26 | 22.29 | 242.29 | 0.4258 | 622.0 | 470.0 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -8.59 | 265.29 | 22.31 | 241.41 | 0.4293 | 748.0 | 633.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -11.67 | 265.51 | 22.54 | 235.63 | 0.4566 | -725.0 | -543.8 | |
| 0.36 | 4.45 | 0.20 | 2.50 | -13.35 | 265.56 | 22.59 | 232.68 | 0.4718 | -795.8 | -796.4 | |
| 0.00 | 2.09 | 0.00 | 1.17 | -12.49 | 265.41 | 22.44 | 234.02 | 0.4624 | -850.0 | -708.0 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -15.83 | 265.04 | 22.07 | 227.92 | 0.4890 | -646.0 | -608.2 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -15.18 | 264.73 | 21.76 | 228.57 | 0.4791 | -790.0 | -604.5 | |
| 0.00 | 2.45 | 0.00 | 1.35 | -11.92 | 264.29 | 21.31 | 233.68 | 0.4432 | -969.0 | -870.1 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -14.66 | 264.47 | 21.50 | 229.09 | 0.4710 | -965.0 | -821.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -16.08 | 264.56 | 21.58 | 226.91 | 0.4860 | -539.0 | -428.6 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -16.41 | 263.61 | 20.63 | 225.13 | 0.4789 | -761.0 | -632.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
