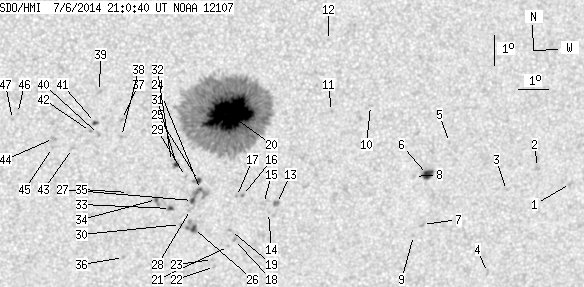

SDO HMI 2014-07-06 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.60 | 671.46 | 59.89 | 370.14 | -19.34 | 255.56 | 12.59 | 207.94 | 0.4400 | 627.4 | 325.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.72 | 0.00 | 1.64 | -21.49 | 267.44 | 24.47 | 222.75 | 0.5699 | 710.0 | 510.2 | |
| 0.00 | 3.54 | 0.00 | 2.10 | -20.92 | 266.16 | 23.19 | 222.01 | 0.5517 | 862.0 | 617.9 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -21.66 | 265.18 | 22.21 | 219.87 | 0.5501 | 486.0 | 400.7 | |
| 0.00 | 2.45 | 0.00 | 1.49 | -24.45 | 264.98 | 22.01 | 216.31 | 0.5783 | 652.0 | 498.8 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -20.00 | 262.95 | 19.97 | 219.10 | 0.5110 | 719.0 | 411.4 | |
| 6.45 | 8.63 | 3.73 | 4.99 | -21.06 | 262.33 | 19.35 | 216.89 | 0.5172 | 878.3 | 626.4 | |
| 0.00 | 2.18 | 0.00 | 1.28 | -22.74 | 262.39 | 19.42 | 214.95 | 0.5372 | 560.0 | 570.5 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -21.11 | 261.88 | 18.91 | 216.20 | 0.5139 | 681.0 | 516.3 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -23.11 | 262.13 | 19.15 | 214.17 | 0.5393 | -697.0 | -536.1 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -18.72 | 260.10 | 17.13 | 216.63 | 0.4694 | -698.0 | -594.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -18.89 | 258.81 | 15.84 | 214.31 | 0.4599 | -781.0 | -655.7 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -16.57 | 258.50 | 15.53 | 217.00 | 0.4282 | -702.0 | -522.2 | |
| 0.00 | 3.27 | 0.00 | 1.85 | -21.93 | 257.26 | 14.28 | 208.18 | 0.4867 | -1016.0 | -815.4 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -22.23 | 257.02 | 14.04 | 207.47 | 0.4889 | -692.0 | -632.0 | |
| 0.00 | 2.63 | 0.00 | 1.49 | -21.92 | 256.82 | 13.84 | 207.45 | 0.4834 | -789.0 | -506.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.64 | 256.08 | 13.11 | 206.49 | 0.4745 | -946.0 | -836.3 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -21.67 | 255.88 | 12.91 | 206.11 | 0.4736 | -927.0 | -772.5 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -23.13 | 255.95 | 12.98 | 204.83 | 0.4939 | -955.0 | -825.8 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -22.82 | 255.79 | 12.81 | 204.84 | 0.4886 | -919.0 | -710.8 | |
| 90.34 | 564.44 | 49.60 | 309.81 | -18.94 | 255.42 | 12.45 | 208.23 | 0.4329 | 1461.4 | 422.0 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -23.37 | 255.77 | 12.80 | 204.31 | 0.4959 | -759.0 | -567.9 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -24.05 | 255.36 | 12.39 | 203.03 | 0.5027 | -660.0 | -517.0 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -23.80 | 255.27 | 12.29 | 203.08 | 0.4988 | -683.0 | -547.4 | |
| 0.82 | 14.62 | 0.46 | 8.17 | -21.42 | 254.65 | 11.68 | 204.18 | 0.4620 | 659.8 | 168.3 | |
| 1.73 | 4.90 | 0.96 | 2.73 | -21.12 | 254.56 | 11.59 | 204.30 | 0.4572 | 734.3 | 448.6 | |
| 2.45 | 10.53 | 1.38 | 5.93 | -22.74 | 254.53 | 11.55 | 202.75 | 0.4796 | -1052.5 | -741.9 | |
| 1.73 | -24.00 | 0.96 | -24.00 | -21.79 | 254.42 | 11.44 | 203.40 | 0.4657 | 585.2 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.12 | -22.09 | 254.37 | 11.40 | 203.05 | 0.4697 | 404.0 | 335.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -20.98 | 254.12 | 11.14 | 203.61 | 0.4524 | 473.0 | 376.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.59 | 254.08 | 11.10 | 202.08 | 0.4750 | -811.0 | -696.4 | |
| 1.63 | 2.63 | 0.90 | 1.45 | -20.57 | 253.79 | 10.82 | 203.38 | 0.4446 | 765.6 | 636.5 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -20.47 | 253.62 | 10.64 | 203.14 | 0.4421 | 654.0 | 478.5 | |
| 1.36 | 2.91 | 0.76 | 1.62 | -22.05 | 253.70 | 10.72 | 201.86 | 0.4651 | -907.5 | -726.1 | |
| 0.82 | 3.99 | 0.45 | 2.23 | -21.74 | 253.21 | 10.23 | 201.22 | 0.4578 | -993.0 | -663.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -21.49 | 252.26 | 9.29 | 199.62 | 0.4491 | -673.0 | -538.7 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -23.70 | 252.24 | 9.27 | 197.92 | 0.4811 | -840.0 | -675.3 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -19.05 | 251.89 | 8.91 | 200.95 | 0.4113 | -701.0 | -635.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.62 | 251.92 | 8.94 | 200.51 | 0.4197 | 748.0 | 653.1 | |
| 0.00 | 2.00 | 0.00 | 1.08 | -18.12 | 251.13 | 8.15 | 200.14 | 0.3931 | -766.0 | -672.0 | |
| 0.00 | 2.45 | 0.00 | 1.33 | -19.54 | 251.16 | 8.19 | 198.97 | 0.4146 | 247.0 | 187.4 | |
| 1.27 | 2.81 | 0.69 | 1.53 | -19.14 | 251.04 | 8.07 | 199.05 | 0.4080 | -894.1 | -660.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.44 | 250.90 | 7.92 | 198.48 | 0.4117 | -691.0 | -590.9 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -20.00 | 250.33 | 7.36 | 196.84 | 0.4174 | -702.0 | -579.3 | |
| 0.00 | 2.36 | 0.00 | 1.28 | -19.66 | 249.70 | 6.73 | 195.69 | 0.4094 | -979.0 | -728.3 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -19.96 | 249.68 | 6.71 | 195.44 | 0.4139 | -760.0 | -566.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -18.82 | 248.50 | 5.53 | 193.52 | 0.3916 | -703.0 | -655.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -19.02 | 248.34 | 5.37 | 193.03 | 0.3941 | -781.0 | -612.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
