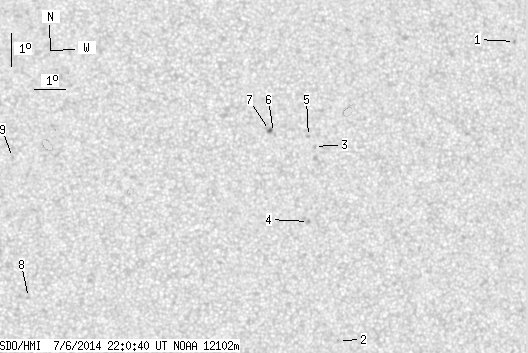

SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.91 | 13.63 | 0.47 | 7.08 | 7.19 | 259.14 | 16.72 | 283.18 | 0.2959 | 754.1 | 621.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.55 | 10.93 | 267.57 | 25.15 | 287.96 | 0.4404 | 818.0 | 701.5 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 1.94 | 261.30 | 18.88 | 265.82 | 0.3257 | 706.0 | 537.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 7.87 | 260.70 | 18.28 | 284.35 | 0.3222 | 565.0 | 506.3 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 5.58 | 260.42 | 18.00 | 277.34 | 0.3114 | 824.0 | 610.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 8.18 | 260.52 | 18.10 | 285.42 | 0.3204 | 747.0 | 551.5 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 8.32 | 259.40 | 16.98 | 286.75 | 0.3031 | 332.0 | 529.2 | |
| 0.91 | 3.27 | 0.47 | 1.70 | 8.38 | 259.27 | 16.85 | 287.07 | 0.3013 | 1124.1 | 879.0 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 3.40 | 251.56 | 9.14 | 269.79 | 0.1593 | 696.0 | 538.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 7.68 | 251.13 | 8.71 | 296.19 | 0.1681 | 801.0 | 519.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
