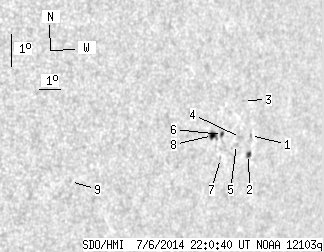

SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.54 | 19.98 | 5.32 | 16.26 | -7.46 | 293.86 | 51.44 | 257.83 | 0.7951 | -56.8 | 38.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.22 | -7.36 | 295.10 | 52.68 | 258.23 | 0.8079 | 448.0 | 449.4 | |
| 1.73 | 3.00 | 1.45 | 2.51 | -7.95 | 295.10 | 52.68 | 257.51 | 0.8089 | 530.3 | 387.9 | |
| 0.00 | 0.73 | 0.00 | 0.60 | -6.25 | 294.58 | 52.16 | 259.49 | 0.8006 | 160.0 | 143.0 | |
| 0.00 | 2.63 | 0.00 | 2.18 | -7.40 | 294.60 | 52.18 | 258.08 | 0.8028 | 298.0 | 218.7 | |
| 0.00 | 1.73 | 0.00 | 1.42 | -7.60 | 294.43 | 52.01 | 257.78 | 0.8015 | 316.0 | 280.9 | |
| 1.27 | 2.45 | 1.03 | 1.98 | -7.26 | 293.68 | 51.26 | 258.05 | 0.7931 | -218.0 | -162.3 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -8.00 | 293.71 | 51.29 | 257.13 | 0.7948 | -353.0 | -284.5 | |
| 3.54 | 6.26 | 2.84 | 5.02 | -7.26 | 293.19 | 50.77 | 257.93 | 0.7880 | -658.3 | -465.5 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -8.40 | 286.85 | 44.43 | 254.76 | 0.7200 | -187.0 | -189.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
