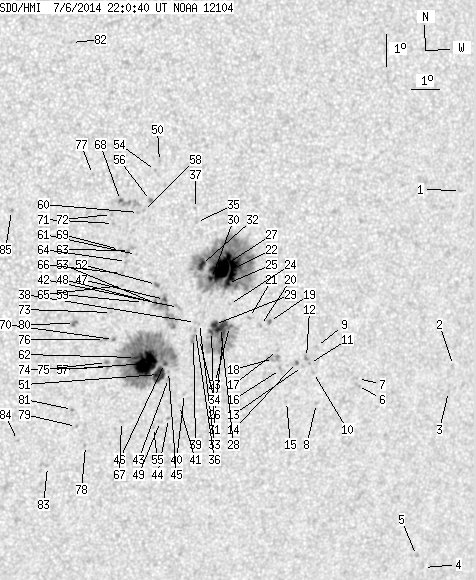

SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 142.00 | 720.53 | 81.24 | 412.19 | -11.80 | 268.31 | 25.89 | 238.89 | 0.5015 | 292.3 | 38.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 1.07 | -8.18 | 277.60 | 35.18 | 251.48 | 0.6037 | 727.0 | 601.1 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -13.69 | 278.09 | 35.67 | 243.36 | 0.6361 | 593.0 | 468.5 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -14.52 | 278.04 | 35.62 | 242.14 | 0.6400 | 410.0 | 407.2 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -20.26 | 278.35 | 35.93 | 234.56 | 0.6780 | 448.0 | 414.0 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -19.85 | 277.96 | 35.54 | 234.82 | 0.6712 | 632.0 | 539.8 | |
| 0.00 | 2.45 | 0.00 | 1.51 | -14.20 | 274.53 | 32.11 | 240.23 | 0.5959 | 774.0 | 660.7 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -13.98 | 274.50 | 32.08 | 240.55 | 0.5940 | 612.0 | 514.2 | |
| 0.00 | 1.63 | 0.00 | 0.99 | -14.73 | 273.10 | 30.68 | 238.34 | 0.5819 | 789.0 | 607.4 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -12.90 | 272.84 | 30.42 | 240.97 | 0.5666 | 587.0 | 435.0 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -13.73 | 272.84 | 30.42 | 239.67 | 0.5721 | 670.0 | 562.1 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -13.44 | 272.66 | 30.24 | 239.98 | 0.5678 | 749.0 | 644.1 | |
| 0.00 | 2.18 | 0.00 | 1.31 | -13.24 | 272.52 | 30.10 | 240.18 | 0.5648 | 734.0 | 640.0 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -13.53 | 272.41 | 29.99 | 239.65 | 0.5654 | 673.0 | 565.0 | |
| 0.45 | 1.45 | 0.27 | 0.87 | -13.39 | 272.18 | 29.76 | 239.67 | 0.5615 | 884.8 | 784.7 | |
| 0.00 | 1.63 | 0.00 | 0.98 | -14.63 | 271.99 | 29.57 | 237.59 | 0.5678 | 623.0 | 429.4 | |
| 0.00 | 2.09 | 0.00 | 1.24 | -13.60 | 271.63 | 29.21 | 238.90 | 0.5561 | 676.0 | 612.6 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -12.99 | 271.44 | 29.02 | 239.72 | 0.5495 | 711.0 | 620.2 | |
| 0.00 | 7.45 | 0.00 | 4.41 | -13.24 | 271.33 | 28.91 | 239.22 | 0.5499 | 661.0 | 699.6 | |
| 0.45 | 2.45 | 0.27 | 1.44 | -12.06 | 271.04 | 28.62 | 240.91 | 0.5382 | 774.6 | 555.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -12.17 | 270.74 | 28.32 | 240.47 | 0.5350 | 716.0 | 644.8 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -11.91 | 270.32 | 27.90 | 240.56 | 0.5278 | 744.0 | 578.8 | |
| 20.79 | 261.67 | 11.94 | 149.85 | -10.34 | 269.60 | 27.18 | 242.66 | 0.5079 | 1000.9 | 386.2 | |
| 0.82 | 73.72 | 0.47 | 42.69 | -12.17 | 269.64 | 27.22 | 239.52 | 0.5209 | 657.8 | 180.8 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -11.47 | 269.57 | 27.15 | 240.65 | 0.5151 | 656.0 | 393.9 | |
| 3.90 | -22.00 | 2.24 | -22.00 | -10.81 | 269.43 | 27.01 | 241.69 | 0.5088 | 777.1 | 999999 | |
| 2.72 | -23.00 | 1.58 | -23.00 | -12.39 | 269.46 | 27.04 | 238.98 | 0.5201 | 671.4 | 999999 | |
| 36.14 | -22.00 | 20.67 | -22.00 | -10.30 | 269.18 | 26.76 | 242.37 | 0.5019 | 1333.2 | 999999 | |
| 9.26 | -23.00 | 5.35 | -23.00 | -12.19 | 269.33 | 26.91 | 239.20 | 0.5171 | 906.8 | 999999 | |
| 3.63 | -23.00 | 2.09 | -23.00 | -12.09 | 269.11 | 26.69 | 239.17 | 0.5135 | 1040.4 | 999999 | |
| 2.91 | -22.00 | 1.66 | -22.00 | -10.64 | 268.86 | 26.44 | 241.49 | 0.5000 | 1129.5 | 999999 | |
| 1.91 | -23.00 | 1.10 | -23.00 | -12.31 | 269.03 | 26.61 | 238.72 | 0.5140 | 849.7 | 999999 | |
| 6.45 | -22.00 | 3.66 | -22.00 | -10.19 | 268.47 | 26.05 | 241.96 | 0.4917 | 1234.2 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -12.04 | 268.58 | 26.16 | 238.76 | 0.5064 | 676.0 | 560.8 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -12.55 | 268.64 | 26.22 | 237.94 | 0.5108 | 423.0 | 352.2 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -8.86 | 268.19 | 25.78 | 244.18 | 0.4792 | 644.0 | 508.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -12.26 | 268.47 | 26.05 | 238.27 | 0.5065 | 687.0 | 573.9 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -8.43 | 268.13 | 25.71 | 244.97 | 0.4755 | -655.0 | -444.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -12.01 | 268.44 | 26.02 | 238.68 | 0.5042 | 682.0 | 505.0 | |
| 0.00 | 3.63 | 0.00 | 2.09 | -12.51 | 268.42 | 26.00 | 237.80 | 0.5078 | 563.0 | 527.9 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -14.26 | 268.31 | 25.89 | 234.77 | 0.5201 | -624.0 | -565.1 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -14.64 | 268.18 | 25.76 | 234.03 | 0.5217 | -639.0 | -491.8 | |
| 0.00 | 3.27 | 0.00 | 1.86 | -11.52 | 267.80 | 25.38 | 238.93 | 0.4923 | 541.0 | 450.2 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -13.76 | 267.69 | 25.27 | 234.96 | 0.5085 | -649.0 | -557.5 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -15.05 | 267.85 | 25.43 | 233.03 | 0.5210 | -708.0 | -513.6 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -13.54 | 267.67 | 25.25 | 235.30 | 0.5064 | -489.0 | -471.1 | |
| 1.45 | 232.43 | 0.83 | 132.15 | -13.28 | 267.50 | 25.08 | 235.57 | 0.5022 | -915.2 | -523.1 | |
| 1.18 | 34.32 | 0.67 | 19.45 | -11.25 | 267.30 | 24.88 | 238.91 | 0.4837 | 818.4 | -37.6 | |
| 0.64 | -47.00 | 0.36 | -47.00 | -11.41 | 267.21 | 24.79 | 238.54 | 0.4837 | 544.0 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.26 | -15.14 | 267.58 | 25.16 | 232.61 | 0.5186 | -626.0 | -577.2 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -6.93 | 266.81 | 24.39 | 246.84 | 0.4477 | 808.0 | 634.2 | |
| 12.08 | -46.00 | 6.91 | -46.00 | -13.63 | 267.33 | 24.91 | 234.81 | 0.5029 | -880.3 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.43 | -10.77 | 266.98 | 24.56 | 239.47 | 0.4760 | 977.0 | 825.1 | |
| 0.64 | -47.00 | 0.36 | -47.00 | -11.37 | 267.00 | 24.58 | 238.40 | 0.4807 | 841.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -7.21 | 266.69 | 24.27 | 246.17 | 0.4477 | 803.0 | 660.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -15.32 | 267.36 | 24.94 | 232.07 | 0.5176 | -671.0 | -576.9 | |
| 0.00 | 2.27 | 0.00 | 1.26 | -8.14 | 266.58 | 24.16 | 244.17 | 0.4520 | 956.0 | 767.3 | |
| 34.77 | -46.00 | 19.79 | -46.00 | -13.26 | 266.88 | 24.46 | 234.94 | 0.4943 | -1306.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -8.44 | 266.36 | 23.94 | 243.36 | 0.4510 | 826.0 | 681.8 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -11.33 | 266.58 | 24.17 | 238.05 | 0.4750 | 455.0 | 301.9 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -8.50 | 266.20 | 23.78 | 243.08 | 0.4491 | 840.0 | 712.2 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -9.81 | 266.22 | 23.80 | 240.52 | 0.4587 | 646.0 | 503.8 | |
| 1.27 | -46.00 | 0.72 | -46.00 | -13.06 | 266.48 | 24.06 | 234.85 | 0.4876 | -1352.2 | 999999 | |
| 0.00 | 6.26 | 0.00 | 3.48 | -9.68 | 265.98 | 23.56 | 240.52 | 0.4544 | 810.0 | 685.0 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -10.02 | 265.90 | 23.48 | 239.78 | 0.4559 | 558.0 | 499.2 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -10.77 | 265.82 | 23.40 | 238.27 | 0.4607 | 590.0 | 472.2 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -10.39 | 265.76 | 23.34 | 238.92 | 0.4569 | 630.0 | 620.6 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -15.10 | 266.22 | 23.80 | 231.17 | 0.5022 | -776.0 | -598.3 | |
| 0.54 | 11.53 | 0.30 | 6.36 | -8.11 | 265.57 | 23.15 | 243.26 | 0.4376 | 1005.8 | 784.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -9.64 | 265.64 | 23.22 | 240.25 | 0.4495 | 821.0 | 636.3 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -12.47 | 265.67 | 23.25 | 234.98 | 0.4725 | -953.0 | -774.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -8.82 | 265.38 | 22.96 | 241.61 | 0.4400 | 825.0 | 608.6 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -8.54 | 265.29 | 22.87 | 242.10 | 0.4367 | 803.0 | 643.9 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -11.61 | 265.52 | 23.10 | 236.37 | 0.4635 | -742.0 | -490.8 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -13.36 | 265.55 | 23.13 | 233.30 | 0.4786 | -835.0 | -710.4 | |
| 0.00 | 2.00 | 0.00 | 1.12 | -13.20 | 265.50 | 23.08 | 233.52 | 0.4766 | -993.0 | -885.0 | |
| 0.00 | 2.91 | 0.00 | 1.63 | -12.46 | 265.36 | 22.94 | 234.65 | 0.4686 | -831.0 | -684.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -7.28 | 264.59 | 22.17 | 244.04 | 0.4180 | 428.0 | 425.7 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -15.84 | 265.07 | 22.65 | 228.62 | 0.4957 | -678.0 | -583.8 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -15.22 | 264.69 | 22.27 | 229.14 | 0.4854 | -725.0 | -602.9 | |
| 0.00 | 3.54 | 0.00 | 1.96 | -11.93 | 264.30 | 21.88 | 234.36 | 0.4506 | -930.0 | -785.3 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -14.67 | 264.49 | 22.07 | 229.80 | 0.4779 | -887.0 | -740.6 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -3.19 | 263.75 | 21.33 | 252.86 | 0.3817 | 875.0 | 656.2 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -16.49 | 263.84 | 21.42 | 226.06 | 0.4884 | -626.0 | -541.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -15.62 | 262.73 | 20.31 | 225.92 | 0.4672 | -489.0 | -511.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -8.33 | 261.97 | 19.56 | 238.71 | 0.3892 | -828.0 | -667.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
