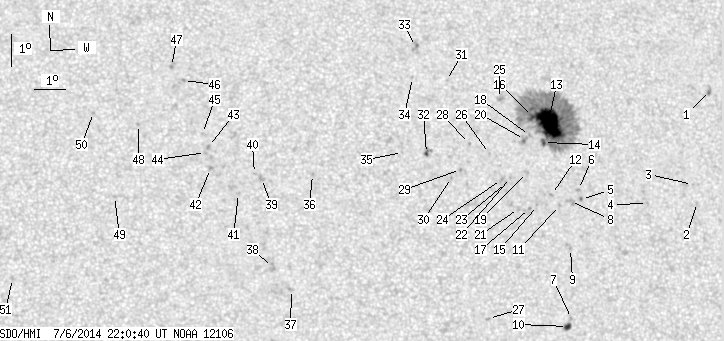

SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.75 | 341.16 | 28.21 | 181.77 | 14.82 | 260.62 | 18.20 | 304.17 | 0.3649 | -517.5 | -283.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.54 | 0.00 | 1.98 | 16.08 | 267.29 | 24.87 | 298.95 | 0.4637 | -857.0 | -730.4 | |
| 0.00 | 0.64 | 0.00 | 0.35 | 12.62 | 266.46 | 24.05 | 292.41 | 0.4319 | -702.0 | -563.1 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 13.18 | 266.35 | 23.93 | 293.72 | 0.4332 | -604.0 | -472.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 12.63 | 264.77 | 22.35 | 293.78 | 0.4071 | -785.0 | -674.1 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 12.81 | 262.57 | 20.15 | 296.25 | 0.3761 | -866.0 | -748.0 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 13.12 | 262.49 | 20.07 | 297.09 | 0.3771 | -729.0 | -596.4 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 9.16 | 261.98 | 19.56 | 287.21 | 0.3474 | -723.0 | -568.8 | |
| 0.00 | 4.81 | 0.00 | 2.57 | 12.75 | 262.20 | 19.78 | 296.51 | 0.3704 | -890.0 | -684.5 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 11.30 | 262.08 | 19.66 | 292.93 | 0.3598 | -792.0 | -649.2 | |
| 2.72 | 4.36 | 1.44 | 2.30 | 8.92 | 261.83 | 19.41 | 286.64 | 0.3442 | -1036.8 | -808.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 12.64 | 261.82 | 19.40 | 296.62 | 0.3642 | -700.0 | -525.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 12.98 | 261.59 | 19.17 | 297.75 | 0.3630 | -831.0 | -708.2 | |
| 44.76 | 253.95 | 23.97 | 136.10 | 15.24 | 261.69 | 19.27 | 303.05 | 0.3815 | -1392.6 | -398.7 | |
| 1.73 | -13.00 | 0.92 | -13.00 | 14.60 | 261.46 | 19.04 | 301.83 | 0.3732 | -945.6 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 12.65 | 261.10 | 18.68 | 297.47 | 0.3537 | -731.0 | -631.9 | |
| 2.63 | -13.00 | 1.41 | -13.00 | 15.41 | 261.17 | 18.75 | 304.10 | 0.3758 | -1158.3 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 12.56 | 260.83 | 18.41 | 297.57 | 0.3492 | -842.0 | -764.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 14.82 | 261.01 | 18.59 | 302.94 | 0.3689 | -1001.0 | -866.5 | |
| 0.00 | 2.45 | 0.00 | 1.30 | 13.68 | 260.82 | 18.40 | 300.42 | 0.3571 | -795.0 | -652.3 | |
| 0.00 | 2.81 | 0.00 | 1.50 | 14.70 | 260.84 | 18.42 | 302.89 | 0.3655 | -896.0 | -839.9 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 12.57 | 260.47 | 18.05 | 298.02 | 0.3440 | -509.0 | -457.1 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 13.53 | 260.28 | 17.86 | 300.75 | 0.3484 | -704.0 | -573.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 13.38 | 260.13 | 17.71 | 300.55 | 0.3452 | -884.0 | -762.1 | |
| 0.00 | 2.18 | 0.00 | 1.15 | 13.48 | 259.98 | 17.56 | 301.01 | 0.3437 | -857.0 | -709.1 | |
| 0.00 | 3.36 | 0.00 | 1.79 | 15.99 | 260.12 | 17.70 | 306.89 | 0.3671 | 148.0 | -16.5 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 14.29 | 259.64 | 17.23 | 303.53 | 0.3457 | -816.0 | -644.7 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 9.21 | 259.28 | 16.86 | 289.68 | 0.3054 | 783.0 | 601.0 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 14.61 | 259.01 | 16.59 | 305.28 | 0.3400 | -917.0 | -767.4 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 13.81 | 258.66 | 16.24 | 303.78 | 0.3281 | -955.0 | -855.2 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 13.57 | 258.35 | 15.93 | 303.63 | 0.3217 | -851.0 | -699.2 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 16.59 | 258.42 | 16.00 | 310.92 | 0.3511 | 278.0 | 373.8 | |
| 0.91 | 4.81 | 0.47 | 2.51 | 14.33 | 257.58 | 15.16 | 306.88 | 0.3183 | 820.7 | 618.1 | |
| 0.00 | 4.54 | 0.00 | 2.40 | 17.67 | 257.49 | 15.07 | 314.93 | 0.3514 | 847.0 | 725.3 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 16.70 | 257.31 | 14.89 | 313.14 | 0.3387 | 819.0 | 615.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 14.37 | 256.81 | 14.39 | 308.40 | 0.3084 | 544.0 | 399.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 13.73 | 253.87 | 11.45 | 312.89 | 0.2643 | 748.0 | 609.1 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 10.20 | 253.05 | 10.63 | 303.01 | 0.2175 | 552.0 | 520.8 | |
| 0.00 | 4.27 | 0.00 | 2.16 | 10.88 | 252.48 | 10.06 | 307.10 | 0.2159 | 750.0 | 657.6 | |
| 0.00 | 3.72 | 0.00 | 1.90 | 13.63 | 252.24 | 9.82 | 316.89 | 0.2435 | 820.0 | 675.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 13.78 | 252.02 | 9.60 | 317.96 | 0.2430 | 790.0 | 572.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 13.17 | 251.49 | 9.07 | 317.77 | 0.2293 | 765.0 | 676.5 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 13.95 | 250.63 | 8.21 | 322.77 | 0.2300 | 943.0 | 770.9 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 14.64 | 250.59 | 8.17 | 324.67 | 0.2389 | 922.0 | 775.9 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 14.45 | 250.49 | 8.07 | 324.54 | 0.2353 | 797.0 | 621.3 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 15.04 | 250.42 | 8.00 | 326.24 | 0.2428 | 753.0 | 620.9 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 16.70 | 249.87 | 7.45 | 331.53 | 0.2618 | 890.0 | 677.5 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 17.14 | 249.51 | 7.09 | 333.51 | 0.2655 | 938.0 | 778.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 15.34 | 248.39 | 5.97 | 334.01 | 0.2300 | 846.0 | 629.4 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 13.11 | 247.57 | 5.15 | 332.42 | 0.1898 | 795.0 | 628.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 15.72 | 246.97 | 4.55 | 340.20 | 0.2265 | 768.0 | 579.4 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 10.60 | 244.36 | 1.94 | 345.00 | 0.1289 | 986.0 | 677.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
