SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.42 | 0.00 | 13.64 | -13.64 | 256.74 | 14.32 | 219.08 | 0.3815 | 622.3 | 586.8 | |
|
previous
or next observation for the same group /

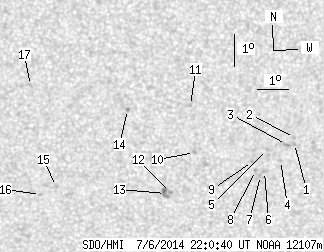

back to the solar disc SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.64 | -13.19 | 259.76 | 17.34 | 225.59 | 0.4079 | 732.0 | 631.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -13.00 | 259.74 | 17.32 | 225.91 | 0.4056 | 792.0 | 632.2 | |
| 0.00 | 2.45 | 0.00 | 1.33 | -13.22 | 259.50 | 17.08 | 225.11 | 0.4052 | 929.0 | 748.6 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -13.72 | 259.34 | 16.92 | 223.95 | 0.4090 | 777.0 | 559.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -13.37 | 258.89 | 16.47 | 223.82 | 0.4000 | 855.0 | 635.6 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -14.07 | 258.84 | 16.42 | 222.51 | 0.4074 | 628.0 | 467.3 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -14.19 | 258.72 | 16.30 | 222.09 | 0.4076 | 756.0 | 562.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -14.03 | 258.54 | 16.12 | 222.06 | 0.4038 | 964.0 | 765.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -13.74 | 258.42 | 16.00 | 222.35 | 0.3992 | 796.0 | 610.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -13.42 | 256.52 | 14.10 | 219.35 | 0.3752 | 725.0 | 641.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -11.92 | 256.31 | 13.89 | 221.66 | 0.3548 | 841.0 | 669.4 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -14.69 | 255.82 | 13.40 | 215.85 | 0.3843 | 826.0 | 636.2 | |
| 0.00 | 5.36 | 0.00 | 2.87 | -14.72 | 255.66 | 13.24 | 215.48 | 0.3832 | 976.0 | 810.5 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -12.02 | 254.30 | 11.88 | 217.12 | 0.3350 | 864.0 | 704.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -14.44 | 252.14 | 9.72 | 208.05 | 0.3492 | -851.0 | -656.1 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -14.69 | 251.64 | 9.22 | 206.48 | 0.3491 | -840.0 | -601.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -11.22 | 251.20 | 8.78 | 210.60 | 0.2954 | 809.0 | 548.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
