SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 380.10 | 2040.24 | 192.16 | 1031.95 | -7.29 | 239.59 | -2.83 | 165.85 | 0.2008 | 113.0 | 59.7 | |
|
previous
or next observation for the same group /

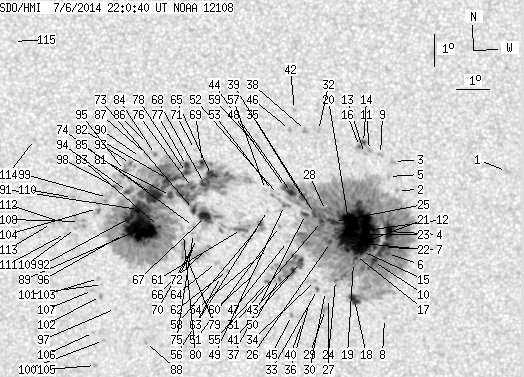

back to the solar disc SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.27 | 0.00 | 1.65 | -5.70 | 246.89 | 4.47 | 205.93 | 0.1781 | 769.0 | 588.2 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -6.28 | 243.55 | 1.13 | 186.58 | 0.1714 | 1036.0 | 822.5 | |
| 0.00 | 2.45 | 0.00 | 1.23 | -5.38 | 243.42 | 1.00 | 186.46 | 0.1558 | 736.0 | 645.1 | |
| 10.08 | 1049.67 | 5.09 | 530.07 | -7.55 | 243.27 | 0.85 | 184.41 | 0.1927 | 1419.6 | 483.8 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -5.84 | 243.27 | 0.85 | 185.21 | 0.1635 | 765.0 | 605.4 | |
| 2.00 | -4.00 | 1.01 | -4.00 | -8.23 | 243.24 | 0.82 | 184.00 | 0.2044 | 952.0 | 999999 | |
| 10.99 | -4.00 | 5.56 | -4.00 | -8.04 | 243.15 | 0.73 | 183.61 | 0.2011 | 1109.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.26 | 243.15 | 0.73 | 183.03 | 0.2389 | -970.0 | -718.2 | |
| 0.00 | 2.36 | 0.00 | 1.18 | -5.17 | 243.03 | 0.61 | 184.01 | 0.1514 | -766.0 | -476.2 | |
| 3.72 | -4.00 | 1.89 | -4.00 | -8.48 | 242.81 | 0.39 | 181.87 | 0.2083 | 983.5 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.86 | -5.04 | 242.69 | 0.27 | 181.82 | 0.1490 | -13.0 | -43.4 | |
| 63.65 | -4.00 | 32.12 | -4.00 | -7.51 | 242.60 | 0.18 | 180.92 | 0.1916 | 1496.7 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.96 | -5.13 | 242.54 | 0.12 | 180.78 | 0.1505 | 56.0 | -4.8 | |
| 1.63 | 6.72 | 0.82 | 3.36 | -4.79 | 242.51 | 0.09 | 180.60 | 0.1446 | -967.8 | -605.6 | |
| 4.09 | -4.00 | 2.07 | -4.00 | -8.17 | 242.47 | 0.05 | 180.26 | 0.2028 | 1190.1 | 999999 | |
| 0.73 | -14.00 | 0.36 | -14.00 | -4.92 | 242.38 | -0.04 | 179.76 | 0.1467 | -887.2 | 999999 | |
| 4.27 | -4.00 | 2.16 | -4.00 | -8.29 | 242.26 | -0.16 | 179.21 | 0.2050 | 1109.2 | 999999 | |
| 7.45 | -4.00 | 3.79 | -4.00 | -9.66 | 242.22 | -0.20 | 179.15 | 0.2285 | 898.0 | 999999 | |
| 0.64 | -4.00 | 0.32 | -4.00 | -8.51 | 242.20 | -0.22 | 178.93 | 0.2087 | 651.3 | 999999 | |
| 43.49 | -4.00 | 21.94 | -4.00 | -7.39 | 242.07 | -0.35 | 178.18 | 0.1896 | 1653.4 | 999999 | |
| 7.72 | -4.00 | 3.90 | -4.00 | -8.07 | 242.01 | -0.41 | 177.98 | 0.2013 | 1144.0 | 999999 | |
| 6.08 | -4.00 | 3.07 | -4.00 | -7.86 | 241.83 | -0.59 | 177.02 | 0.1977 | 1200.9 | 999999 | |
| 5.72 | -4.00 | 2.89 | -4.00 | -7.64 | 241.70 | -0.71 | 176.33 | 0.1941 | 1159.9 | 999999 | |
| 0.73 | -4.00 | 0.37 | -4.00 | -9.07 | 241.64 | -0.78 | 176.46 | 0.2187 | 670.0 | 999999 | |
| 7.35 | -4.00 | 3.71 | -4.00 | -7.23 | 241.61 | -0.81 | 175.71 | 0.1873 | 1111.8 | 999999 | |
| 1.73 | -4.00 | 0.87 | -4.00 | -7.89 | 241.49 | -0.93 | 175.33 | 0.1986 | 956.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -9.63 | 241.42 | -1.00 | 175.67 | 0.2285 | 701.0 | 514.8 | |
| 1.18 | -4.00 | 0.59 | -4.00 | -6.89 | 241.34 | -1.08 | 174.06 | 0.1819 | 965.0 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.53 | -9.98 | 241.33 | -1.09 | 175.38 | 0.2345 | 878.0 | 681.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.41 | 241.33 | -1.09 | 175.19 | 0.2249 | 855.0 | 660.3 | |
| 2.36 | -4.00 | 1.19 | -4.00 | -7.23 | 241.21 | -1.20 | 173.60 | 0.1879 | 1076.8 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -4.42 | 241.13 | -1.29 | 170.75 | 0.1400 | 871.0 | 831.6 | |
| 0.82 | 2.18 | 0.42 | 1.11 | -9.35 | 241.08 | -1.34 | 174.08 | 0.2243 | 1015.6 | 798.7 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.07 | 241.02 | -1.40 | 173.67 | 0.2196 | 855.0 | 707.2 | |
| 3.63 | -4.00 | 1.83 | -4.00 | -6.99 | 241.00 | -1.42 | 172.30 | 0.1842 | 997.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.73 | 240.83 | -1.59 | 173.19 | 0.2311 | 343.0 | 388.9 | |
| 2.27 | -4.00 | 1.14 | -4.00 | -7.02 | 240.72 | -1.70 | 170.84 | 0.1854 | 820.1 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.36 | -4.42 | 240.74 | -1.68 | 167.97 | 0.1413 | 1056.0 | 910.5 | |
| 5.99 | -4.00 | 3.02 | -4.00 | -6.55 | 240.70 | -1.72 | 170.27 | 0.1776 | 1142.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -10.35 | 240.61 | -1.81 | 172.61 | 0.2422 | -737.0 | -579.2 | |
| 5.27 | 41.04 | 2.67 | 20.81 | -8.51 | 240.56 | -1.86 | 171.23 | 0.2111 | 1103.6 | 465.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -3.78 | 240.40 | -2.02 | 164.46 | 0.1318 | 972.0 | 740.6 | |
| 3.00 | -41.00 | 1.52 | -41.00 | -8.76 | 240.34 | -2.07 | 170.42 | 0.2159 | 993.5 | 999999 | |
| 4.45 | -4.00 | 2.24 | -4.00 | -6.34 | 240.30 | -2.12 | 167.82 | 0.1752 | 1274.2 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -10.17 | 240.27 | -2.15 | 171.12 | 0.2398 | 857.0 | 707.3 | |
| 0.00 | 1.91 | 0.00 | 0.95 | -4.39 | 240.25 | -2.17 | 164.57 | 0.1428 | 986.0 | 854.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -7.86 | 240.17 | -2.25 | 168.79 | 0.2013 | -626.0 | -437.3 | |
| 1.82 | -4.00 | 0.91 | -4.00 | -6.18 | 240.11 | -2.30 | 166.60 | 0.1733 | 1012.2 | 999999 | |
| 0.54 | 11.17 | 0.27 | 5.63 | -6.74 | 240.08 | -2.34 | 167.13 | 0.1828 | 909.2 | 495.1 | |
| 0.91 | 4.36 | 0.46 | 2.21 | -9.01 | 239.91 | -2.51 | 168.69 | 0.2215 | 960.4 | 666.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.39 | 239.92 | -2.50 | 167.10 | 0.1943 | 954.0 | 681.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -6.40 | 239.90 | -2.52 | 165.71 | 0.1778 | 836.0 | 616.2 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -6.28 | 239.72 | -2.70 | 164.53 | 0.1766 | 138.0 | 98.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.07 | 239.58 | -2.84 | 166.23 | 0.2071 | -654.0 | -500.6 | |
| 0.73 | 3.99 | 0.37 | 2.03 | -9.10 | 239.54 | -2.88 | 167.17 | 0.2244 | 707.8 | 319.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.90 | 239.56 | -2.86 | 164.61 | 0.1876 | 602.0 | 445.3 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -6.25 | 239.50 | -2.92 | 163.32 | 0.1771 | -152.0 | -85.8 | |
| 1.36 | 40.40 | 0.69 | 20.43 | -7.33 | 239.34 | -3.08 | 164.13 | 0.1958 | 906.0 | -250.9 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -4.92 | 239.29 | -3.12 | 159.60 | 0.1565 | 1035.0 | 761.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -8.85 | 239.14 | -3.28 | 165.17 | 0.2219 | -616.0 | -518.2 | |
| 3.09 | -58.00 | 1.56 | -58.00 | -7.49 | 238.75 | -3.67 | 161.56 | 0.2013 | -912.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -8.76 | 238.31 | -4.11 | 161.51 | 0.2245 | 946.0 | 717.9 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -8.95 | 238.09 | -4.33 | 160.87 | 0.2287 | 749.0 | 521.2 | |
| 0.00 | 2.72 | 0.00 | 1.38 | -8.51 | 237.97 | -4.45 | 159.72 | 0.2224 | -433.0 | -306.9 | |
| 8.35 | 721.27 | 4.21 | 365.43 | -5.82 | 237.85 | -4.57 | 153.83 | 0.1806 | -1268.8 | -491.1 | |
| 0.36 | 17.98 | 0.18 | 9.13 | -8.02 | 237.76 | -4.66 | 158.01 | 0.2157 | -710.0 | -113.0 | |
| 10.26 | -65.00 | 5.19 | -65.00 | -7.09 | 237.65 | -4.77 | 155.75 | 0.2018 | -1136.3 | 999999 | |
| 5.72 | -65.00 | 2.88 | -65.00 | -6.07 | 237.63 | -4.79 | 153.37 | 0.1861 | -1198.9 | 999999 | |
| 2.27 | -65.00 | 1.14 | -65.00 | -5.42 | 237.57 | -4.85 | 151.44 | 0.1767 | 657.6 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.29 | -7.77 | 237.39 | -5.03 | 155.99 | 0.2143 | -809.0 | -584.5 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -5.02 | 237.33 | -5.09 | 149.09 | 0.1728 | 719.0 | 616.0 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -7.99 | 237.30 | -5.12 | 156.01 | 0.2184 | -447.0 | -463.5 | |
| 3.27 | -65.00 | 1.65 | -65.00 | -6.87 | 237.28 | -5.14 | 153.65 | 0.2012 | -1037.4 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.01 | -7.40 | 237.28 | -5.14 | 154.75 | 0.2094 | -836.0 | -597.5 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -7.62 | 237.27 | -5.15 | 155.17 | 0.2128 | -765.0 | -620.2 | |
| 1.73 | -65.00 | 0.87 | -65.00 | -6.19 | 237.26 | -5.16 | 151.94 | 0.1910 | -1127.3 | 999999 | |
| 3.72 | -65.00 | 1.88 | -65.00 | -5.51 | 237.08 | -5.34 | 149.32 | 0.1823 | 450.4 | 999999 | |
| 3.72 | -65.00 | 1.88 | -65.00 | -5.73 | 237.08 | -5.34 | 149.91 | 0.1855 | -916.1 | 999999 | |
| 0.00 | 7.54 | 0.00 | 3.83 | -8.11 | 236.96 | -5.46 | 154.85 | 0.2228 | -798.0 | -606.6 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -7.65 | 236.96 | -5.46 | 153.94 | 0.2155 | -753.0 | -537.6 | |
| 3.81 | -65.00 | 1.93 | -65.00 | -6.44 | 236.58 | -5.84 | 149.55 | 0.2004 | -1202.6 | 999999 | |
| 16.34 | -65.00 | 8.25 | -65.00 | -5.95 | 236.52 | -5.90 | 148.00 | 0.1937 | -1068.3 | 999999 | |
| 2.18 | -65.00 | 1.11 | -65.00 | -7.40 | 236.19 | -6.23 | 150.30 | 0.2180 | -1238.8 | 999999 | |
| 0.45 | 2.54 | 0.23 | 1.28 | -5.18 | 236.13 | -6.29 | 144.01 | 0.1865 | -1078.2 | -880.3 | |
| 20.52 | -65.00 | 10.38 | -65.00 | -6.41 | 236.02 | -6.40 | 147.15 | 0.2050 | -1379.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -4.84 | 235.89 | -6.53 | 141.86 | 0.1843 | -856.0 | -608.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -5.18 | 235.85 | -6.56 | 142.83 | 0.1893 | -1084.0 | -820.4 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -11.03 | 235.72 | -6.70 | 155.40 | 0.2764 | -826.0 | -696.2 | |
| 54.29 | -65.00 | 27.59 | -65.00 | -7.47 | 235.67 | -6.75 | 148.41 | 0.2235 | -1505.2 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -5.27 | 235.67 | -6.75 | 142.36 | 0.1925 | -804.0 | -651.4 | |
| 11.08 | -65.00 | 5.62 | -65.00 | -6.88 | 235.58 | -6.84 | 146.64 | 0.2158 | -1409.3 | 999999 | |
| 7.45 | -65.00 | 3.78 | -65.00 | -7.13 | 235.33 | -7.09 | 146.32 | 0.2217 | -1161.1 | 999999 | |
| 0.64 | 23.61 | 0.32 | 11.95 | -5.46 | 235.36 | -7.06 | 141.70 | 0.1983 | -1075.0 | -735.8 | |
| 2.09 | -65.00 | 1.06 | -65.00 | -6.33 | 235.25 | -7.17 | 143.87 | 0.2112 | -1055.5 | 999999 | |
| 0.45 | -93.00 | 0.23 | -93.00 | -5.68 | 235.17 | -7.25 | 141.64 | 0.2033 | -1179.6 | 999999 | |
| 1.09 | -65.00 | 0.55 | -65.00 | -7.66 | 235.11 | -7.31 | 146.79 | 0.2314 | -990.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -9.97 | 234.81 | -7.61 | 150.66 | 0.2674 | -698.0 | -447.0 | |
| 0.82 | -93.00 | 0.41 | -93.00 | -6.17 | 234.85 | -7.57 | 141.94 | 0.2133 | -973.8 | 999999 | |
| 0.00 | 6.99 | 0.00 | 3.55 | -6.51 | 234.63 | -7.79 | 142.12 | 0.2202 | -753.0 | -657.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -10.98 | 234.41 | -8.01 | 151.21 | 0.2855 | -909.0 | -757.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -9.22 | 234.42 | -8.00 | 147.94 | 0.2599 | 397.0 | 283.6 | |
| 0.00 | 2.09 | 0.00 | 1.07 | -9.60 | 234.35 | -8.07 | 148.48 | 0.2659 | -1018.0 | -795.1 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -9.03 | 234.30 | -8.12 | 147.16 | 0.2583 | -964.0 | -674.3 | |
| 0.00 | 6.72 | 0.00 | 3.42 | -6.86 | 234.32 | -8.10 | 141.96 | 0.2281 | -760.0 | -758.1 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -11.77 | 234.13 | -8.29 | 151.72 | 0.2992 | -861.0 | -723.2 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -10.73 | 234.10 | -8.32 | 149.86 | 0.2844 | -861.0 | -630.6 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -9.41 | 234.10 | -8.32 | 147.33 | 0.2655 | -738.0 | -673.8 | |
| 0.00 | 9.35 | 0.00 | 4.77 | -7.27 | 233.75 | -8.67 | 141.17 | 0.2395 | -999.0 | -852.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.48 | 233.62 | -8.80 | 141.33 | 0.2438 | -929.0 | -729.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -6.52 | 233.55 | -8.87 | 138.47 | 0.2322 | -851.0 | -727.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.64 | 233.31 | -9.11 | 140.75 | 0.2492 | -739.0 | -570.6 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -7.27 | 233.13 | -9.29 | 139.23 | 0.2464 | -953.0 | -759.0 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -7.33 | 232.88 | -9.54 | 138.65 | 0.2500 | -777.0 | -671.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -4.74 | 232.40 | -10.02 | 129.34 | 0.2252 | -968.0 | -678.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -1.74 | 231.78 | -10.64 | 116.01 | 0.2062 | -828.0 | -673.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
