SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 324.16 | 1895.52 | 177.32 | 1038.86 | -7.80 | 220.00 | -22.42 | 117.12 | 0.4255 | 444.4 | 148.5 | |
|
previous
or next observation for the same group /

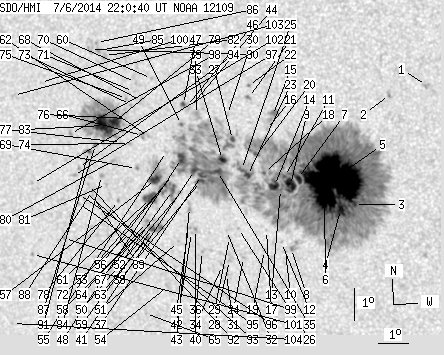

back to the solar disc SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.36 | 0.00 | 1.76 | -4.93 | 225.22 | -17.20 | 115.98 | 0.3292 | 832.0 | 681.1 | |
| 0.00 | 2.81 | 0.00 | 1.49 | -5.23 | 224.02 | -18.40 | 115.27 | 0.3491 | 498.0 | 333.5 | |
| 0.27 | 1258.77 | 0.15 | 681.68 | -8.66 | 222.73 | -19.69 | 121.84 | 0.3937 | 1294.0 | 399.3 | |
| 8.63 | -3.00 | 4.66 | -3.00 | -8.83 | 222.26 | -20.16 | 121.60 | 0.4015 | 1108.0 | 999999 | |
| 150.81 | -3.00 | 81.27 | -3.00 | -7.83 | 222.15 | -20.27 | 119.29 | 0.3951 | 1755.1 | 999999 | |
| 39.22 | -3.00 | 21.24 | -3.00 | -8.46 | 221.76 | -20.66 | 120.20 | 0.4055 | 1287.5 | 999999 | |
| 5.18 | -3.00 | 2.81 | -3.00 | -7.89 | 220.90 | -21.52 | 117.97 | 0.4132 | 889.3 | 999999 | |
| 0.36 | 6.45 | 0.20 | 3.54 | -10.08 | 220.56 | -21.86 | 122.13 | 0.4347 | -764.2 | -149.7 | |
| 12.44 | -3.00 | 6.78 | -3.00 | -8.12 | 220.65 | -21.77 | 118.19 | 0.4183 | 1010.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -10.18 | 220.35 | -22.07 | 122.08 | 0.4383 | 407.0 | 305.2 | |
| 0.82 | -3.00 | 0.45 | -3.00 | -7.84 | 220.47 | -21.95 | 117.40 | 0.4188 | 788.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -9.90 | 220.24 | -22.18 | 121.40 | 0.4376 | 476.0 | 287.2 | |
| 0.73 | -3.00 | 0.40 | -3.00 | -8.25 | 220.31 | -22.11 | 118.10 | 0.4240 | 606.4 | 999999 | |
| 8.53 | -3.00 | 4.67 | -3.00 | -8.13 | 220.12 | -22.30 | 117.64 | 0.4258 | 765.2 | 999999 | |
| 0.00 | 8.63 | 0.00 | 4.68 | -5.96 | 220.17 | -22.25 | 112.95 | 0.4107 | 724.0 | 370.9 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -6.39 | 219.95 | -22.47 | 113.72 | 0.4166 | 426.0 | 335.8 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -9.54 | 219.76 | -22.66 | 120.15 | 0.4412 | 408.0 | 287.1 | |
| 0.91 | -3.00 | 0.50 | -3.00 | -7.73 | 219.81 | -22.61 | 116.48 | 0.4274 | 739.3 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -10.17 | 219.65 | -22.77 | 121.26 | 0.4476 | 573.0 | 505.1 | |
| 1.73 | -3.00 | 0.94 | -3.00 | -7.18 | 219.58 | -22.84 | 115.07 | 0.4270 | 951.1 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.34 | -5.42 | 219.39 | -23.03 | 111.05 | 0.4190 | 850.0 | 634.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -5.05 | 219.41 | -23.01 | 110.23 | 0.4167 | -759.0 | -593.6 | |
| 3.63 | -3.00 | 2.00 | -3.00 | -7.84 | 219.24 | -23.18 | 116.14 | 0.4362 | 974.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -10.40 | 218.92 | -23.50 | 120.93 | 0.4591 | -943.0 | -691.0 | |
| 2.18 | -3.00 | 1.20 | -3.00 | -7.65 | 219.05 | -23.37 | 115.58 | 0.4377 | 889.2 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -9.50 | 218.82 | -23.60 | 119.08 | 0.4536 | 534.0 | 356.9 | |
| 2.00 | 288.72 | 1.10 | 160.29 | -6.73 | 218.80 | -23.62 | 113.40 | 0.4354 | 932.6 | -139.4 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -10.51 | 218.44 | -23.98 | 120.63 | 0.4663 | 831.0 | 532.7 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -9.79 | 218.49 | -23.92 | 119.31 | 0.4602 | -767.0 | -594.7 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -5.96 | 218.67 | -23.75 | 111.64 | 0.4328 | 636.0 | 472.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -10.95 | 218.30 | -24.12 | 121.31 | 0.4716 | -695.0 | -613.5 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -9.57 | 218.41 | -24.01 | 118.81 | 0.4598 | -732.0 | -579.6 | |
| 3.81 | -27.00 | 2.11 | -27.00 | -7.36 | 218.43 | -23.99 | 114.39 | 0.4446 | 954.9 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.17 | -10.67 | 218.18 | -24.24 | 120.67 | 0.4709 | -806.0 | -693.3 | |
| 3.27 | -27.00 | 1.81 | -27.00 | -7.74 | 218.23 | -24.19 | 114.99 | 0.4498 | 200.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -10.25 | 217.54 | -24.88 | 119.24 | 0.4764 | -1010.0 | -806.4 | |
| 2.91 | -27.00 | 1.62 | -27.00 | -7.87 | 217.68 | -24.74 | 114.78 | 0.4584 | -1124.9 | 999999 | |
| 3.18 | -27.00 | 1.77 | -27.00 | -8.06 | 217.64 | -24.78 | 115.12 | 0.4602 | -976.4 | 999999 | |
| 0.00 | 7.54 | 0.00 | 4.17 | -5.99 | 217.62 | -24.80 | 110.86 | 0.4482 | -381.0 | -337.0 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -9.56 | 217.36 | -25.06 | 117.78 | 0.4741 | -708.0 | -642.1 | |
| 3.81 | -27.00 | 2.13 | -27.00 | -7.72 | 217.46 | -24.96 | 114.29 | 0.4607 | -809.6 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -9.66 | 217.21 | -25.21 | 117.84 | 0.4767 | -689.0 | -579.7 | |
| 0.00 | 4.36 | 0.00 | 2.45 | -8.88 | 217.20 | -25.21 | 116.34 | 0.4716 | -765.0 | -686.9 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -5.78 | 217.40 | -25.02 | 110.24 | 0.4504 | -841.0 | -582.7 | |
| 0.00 | 2.27 | 0.00 | 1.28 | -9.51 | 217.12 | -25.30 | 117.46 | 0.4769 | -580.0 | -664.6 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -5.75 | 217.30 | -25.12 | 110.11 | 0.4517 | -713.0 | -763.5 | |
| 1.27 | 2.91 | 0.71 | 1.61 | -5.69 | 217.20 | -25.22 | 109.91 | 0.4528 | -1096.7 | -935.2 | |
| 7.90 | -27.00 | 4.41 | -27.00 | -7.36 | 217.04 | -25.38 | 113.21 | 0.4644 | -940.8 | 999999 | |
| 0.64 | 1.63 | 0.35 | 0.91 | -6.31 | 217.10 | -25.32 | 111.12 | 0.4576 | -1037.0 | -852.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -8.42 | 216.93 | -25.49 | 115.21 | 0.4724 | -866.0 | -651.5 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -9.96 | 216.74 | -25.68 | 117.95 | 0.4851 | -779.0 | -622.2 | |
| 3.99 | 66.55 | 2.25 | 37.57 | -8.37 | 216.66 | -25.76 | 114.87 | 0.4758 | -974.2 | -706.7 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -7.90 | 216.70 | -25.72 | 113.99 | 0.4725 | -842.0 | -727.2 | |
| 0.00 | 2.54 | 0.00 | 1.45 | -11.38 | 216.23 | -26.19 | 120.06 | 0.5019 | -480.0 | -411.3 | |
| 0.00 | 1.73 | 0.00 | 0.97 | -7.16 | 216.54 | -25.88 | 112.41 | 0.4704 | 243.0 | 168.6 | |
| 3.09 | -52.00 | 1.74 | -52.00 | -8.22 | 216.36 | -26.06 | 114.34 | 0.4791 | -1096.5 | 999999 | |
| 7.63 | -52.00 | 4.31 | -52.00 | -8.04 | 216.10 | -26.32 | 113.79 | 0.4817 | -1143.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -9.29 | 215.97 | -26.45 | 116.04 | 0.4912 | -840.0 | -625.1 | |
| 2.45 | 9.53 | 1.40 | 5.42 | -9.57 | 215.88 | -26.54 | 116.49 | 0.4943 | -931.1 | -859.7 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -4.91 | 216.15 | -26.27 | 107.58 | 0.4645 | -769.0 | -598.9 | |
| 10.17 | -52.00 | 5.77 | -52.00 | -8.64 | 215.89 | -26.53 | 114.75 | 0.4883 | -923.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -6.71 | 215.95 | -26.47 | 111.08 | 0.4763 | -916.0 | -666.9 | |
| 0.00 | 3.36 | 0.00 | 1.92 | -9.86 | 215.68 | -26.74 | 116.84 | 0.4988 | -780.0 | -613.8 | |
| 0.00 | 2.63 | 0.00 | 1.50 | -9.39 | 215.69 | -26.73 | 115.99 | 0.4957 | -796.0 | -676.3 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -12.26 | 215.37 | -27.05 | 120.79 | 0.5194 | -612.0 | -417.7 | |
| 0.00 | 3.27 | 0.00 | 1.84 | -6.68 | 215.75 | -26.67 | 110.88 | 0.4791 | -954.0 | -795.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -9.68 | 215.49 | -26.93 | 116.35 | 0.5002 | -673.0 | -526.9 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -5.60 | 215.74 | -26.68 | 108.72 | 0.4738 | -782.0 | -654.6 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -7.71 | 215.47 | -26.95 | 112.67 | 0.4887 | -949.0 | -785.2 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -5.05 | 215.59 | -26.83 | 107.51 | 0.4733 | -690.0 | -635.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -5.33 | 215.51 | -26.91 | 108.03 | 0.4758 | -780.0 | -610.0 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -9.69 | 215.14 | -27.28 | 116.08 | 0.5050 | -692.0 | -580.7 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -5.74 | 215.39 | -27.03 | 108.76 | 0.4795 | -822.0 | -641.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -6.94 | 215.28 | -27.14 | 111.06 | 0.4871 | -891.0 | -751.6 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -5.55 | 215.26 | -27.16 | 108.31 | 0.4805 | -809.0 | -712.4 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -6.17 | 215.22 | -27.19 | 109.51 | 0.4840 | -767.0 | -688.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -6.92 | 215.01 | -27.41 | 110.82 | 0.4909 | -615.0 | -505.5 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -8.73 | 214.77 | -27.65 | 114.04 | 0.5043 | -861.0 | -712.4 | |
| 9.08 | 129.11 | 5.16 | 73.62 | -6.28 | 214.80 | -27.62 | 109.44 | 0.4906 | -1257.9 | -402.1 | |
| 0.00 | 2.45 | 0.00 | 1.40 | -7.49 | 214.69 | -27.73 | 111.68 | 0.4984 | -895.0 | -714.8 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -8.24 | 214.39 | -28.03 | 112.87 | 0.5067 | -950.0 | -739.7 | |
| 0.00 | 2.81 | 0.00 | 1.59 | -4.25 | 214.56 | -27.86 | 105.30 | 0.4851 | -684.0 | -674.9 | |
| 21.70 | -79.00 | 12.37 | -79.00 | -6.41 | 214.41 | -28.01 | 109.44 | 0.4968 | -1120.3 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.15 | -7.97 | 214.24 | -28.18 | 112.25 | 0.5074 | -853.0 | -700.1 | |
| 0.00 | 2.36 | 0.00 | 1.34 | -4.10 | 214.36 | -28.06 | 104.90 | 0.4875 | -904.0 | -809.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -3.86 | 214.30 | -28.12 | 104.38 | 0.4874 | -877.0 | -705.8 | |
| 0.64 | 1.73 | 0.36 | 0.99 | -7.01 | 214.10 | -28.32 | 110.37 | 0.5043 | -657.1 | -477.1 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -8.44 | 213.88 | -28.54 | 112.87 | 0.5149 | -810.0 | -617.9 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -8.60 | 213.87 | -28.55 | 113.14 | 0.5159 | -689.0 | -544.8 | |
| 0.00 | 3.99 | 0.00 | 2.27 | -4.08 | 214.08 | -28.34 | 104.71 | 0.4915 | -623.0 | -667.9 | |
| 1.18 | 3.54 | 0.68 | 2.04 | -7.23 | 213.84 | -28.58 | 110.62 | 0.5091 | -826.1 | -614.7 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -8.26 | 213.76 | -28.66 | 112.45 | 0.5156 | -757.0 | -651.4 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -8.51 | 213.63 | -28.79 | 112.82 | 0.5187 | -475.0 | -466.3 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -7.74 | 213.45 | -28.97 | 111.29 | 0.5172 | -622.0 | -557.3 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -8.86 | 213.35 | -29.07 | 113.25 | 0.5245 | -534.0 | -437.3 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -8.58 | 213.38 | -29.04 | 112.77 | 0.5226 | -377.0 | -344.8 | |
| 0.00 | 2.36 | 0.00 | 1.37 | -7.99 | 213.25 | -29.17 | 111.62 | 0.5212 | -581.0 | -522.9 | |
| 0.00 | 2.36 | 0.00 | 1.36 | -6.69 | 213.24 | -29.18 | 109.24 | 0.5149 | -750.0 | -623.3 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -9.97 | 212.75 | -29.67 | 114.76 | 0.5389 | -855.0 | -698.2 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -5.15 | 212.28 | -30.14 | 105.83 | 0.5219 | -627.0 | -481.9 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -10.51 | 211.54 | -30.88 | 114.82 | 0.5580 | -624.0 | -541.1 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -8.29 | 211.77 | -30.65 | 111.19 | 0.5432 | -606.0 | -450.3 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -5.58 | 211.29 | -31.13 | 106.12 | 0.5377 | -641.0 | -464.2 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -12.72 | 210.53 | -31.89 | 117.66 | 0.5839 | -423.0 | -344.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
