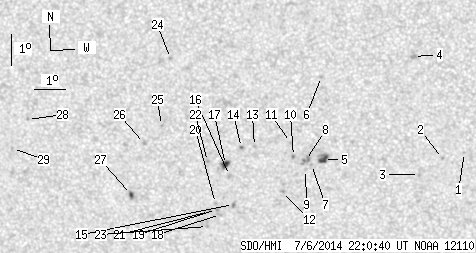

SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.80 | 56.94 | 4.68 | 30.18 | -15.51 | 234.29 | -8.13 | 157.70 | 0.3564 | -69.8 | 44.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.52 | -15.31 | 240.82 | -1.60 | 175.23 | 0.3246 | 759.0 | 589.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -15.50 | 240.12 | -2.29 | 173.23 | 0.3290 | 892.0 | 690.2 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -16.02 | 239.39 | -3.03 | 171.34 | 0.3391 | 784.0 | 697.6 | |
| 0.00 | 2.91 | 0.00 | 1.50 | -12.25 | 239.26 | -3.16 | 168.74 | 0.2775 | 865.0 | 667.9 | |
| 3.99 | 8.99 | 2.11 | 4.74 | -15.55 | 236.35 | -6.07 | 162.63 | 0.3428 | 941.2 | 842.9 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -12.89 | 236.36 | -6.06 | 159.93 | 0.3011 | 524.0 | 390.9 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -15.71 | 235.96 | -6.46 | 161.75 | 0.3473 | 694.0 | 501.3 | |
| 0.00 | 5.27 | 0.00 | 2.78 | -15.58 | 235.78 | -6.64 | 161.14 | 0.3462 | 912.0 | 855.9 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -15.87 | 235.77 | -6.65 | 161.39 | 0.3508 | 688.0 | 523.6 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -15.46 | 235.40 | -7.02 | 160.02 | 0.3463 | 891.0 | 774.4 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -15.01 | 235.32 | -7.10 | 159.34 | 0.3399 | 849.0 | 556.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -16.59 | 235.00 | -7.42 | 160.15 | 0.3659 | 820.0 | 677.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.14 | 234.17 | -8.25 | 156.51 | 0.3491 | 789.0 | 527.9 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -15.18 | 233.75 | -8.67 | 155.51 | 0.3524 | 794.0 | 606.2 | |
| 0.00 | 1.91 | 0.00 | 1.02 | -17.03 | 233.41 | -9.01 | 156.81 | 0.3820 | -1041.0 | -847.9 | |
| 0.00 | 2.54 | 0.00 | 1.35 | -16.09 | 233.33 | -9.09 | 155.56 | 0.3686 | -745.0 | -483.3 | |
| 3.45 | 5.08 | 1.83 | 2.70 | -15.73 | 233.21 | -9.21 | 154.87 | 0.3642 | -1109.6 | -873.6 | |
| 0.00 | 2.00 | 0.00 | 1.07 | -17.36 | 232.97 | -9.45 | 156.18 | 0.3896 | -691.0 | -540.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.19 | 232.85 | -9.57 | 155.73 | 0.3881 | -917.0 | -821.0 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -17.00 | 232.83 | -9.59 | 155.46 | 0.3854 | -953.0 | -724.0 | |
| 0.00 | 0.64 | 0.00 | 0.34 | -17.26 | 232.62 | -9.80 | 155.30 | 0.3906 | -869.0 | -735.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -15.64 | 232.64 | -9.78 | 153.41 | 0.3669 | -1055.0 | -836.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -17.75 | 232.53 | -9.89 | 155.64 | 0.3983 | -790.0 | -715.8 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -12.36 | 231.61 | -10.81 | 146.04 | 0.3293 | -937.0 | -752.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -14.50 | 231.22 | -11.20 | 148.56 | 0.3620 | -827.0 | -688.6 | |
| 0.00 | 1.91 | 0.00 | 1.02 | -15.08 | 230.64 | -11.78 | 148.14 | 0.3749 | -883.0 | -664.5 | |
| 1.36 | 2.72 | 0.74 | 1.47 | -16.74 | 230.12 | -12.30 | 149.35 | 0.4018 | -1074.9 | -833.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -14.36 | 226.90 | -15.52 | 139.57 | 0.4015 | -940.0 | -817.2 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -15.30 | 226.33 | -16.09 | 140.10 | 0.4185 | -914.0 | -698.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
