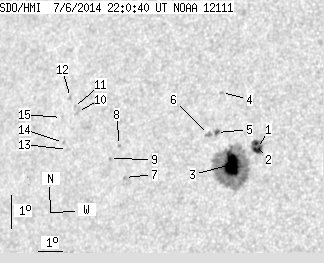

SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.96 | 152.81 | 22.09 | 97.53 | 6.61 | 203.33 | -39.09 | 83.81 | 0.6320 | -617.8 | -301.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.63 | 13.26 | 3.52 | 8.30 | 6.96 | 204.76 | -37.66 | 83.11 | 0.6131 | -998.8 | -638.9 | |
| 3.18 | -1.00 | 1.99 | -1.00 | 7.11 | 204.67 | -37.75 | 82.88 | 0.6145 | -790.0 | 999999 | |
| 24.79 | 121.21 | 15.71 | 76.83 | 6.44 | 203.79 | -38.63 | 84.04 | 0.6259 | -1191.2 | -380.2 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 8.62 | 203.16 | -39.25 | 80.64 | 0.6363 | -732.0 | -561.0 | |
| 1.36 | 2.63 | 0.87 | 1.69 | 7.39 | 203.11 | -39.31 | 82.58 | 0.6359 | -793.3 | -616.9 | |
| 0.00 | 3.18 | 0.00 | 2.04 | 7.32 | 202.79 | -39.63 | 82.73 | 0.6400 | -576.0 | -473.4 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 5.87 | 199.50 | -42.92 | 85.11 | 0.6822 | 781.0 | 706.7 | |
| 0.00 | 1.18 | 0.00 | 0.80 | 6.84 | 199.19 | -43.23 | 83.71 | 0.6865 | 635.0 | 550.5 | |
| 0.00 | 1.09 | 0.00 | 0.74 | 6.43 | 198.81 | -43.61 | 84.33 | 0.6911 | 606.0 | 448.2 | |
| 0.00 | 3.09 | 0.00 | 2.17 | 7.80 | 197.26 | -45.16 | 82.45 | 0.7109 | 615.0 | 523.9 | |
| 0.00 | 0.73 | 0.00 | 0.51 | 7.92 | 197.07 | -45.35 | 82.30 | 0.7133 | 593.0 | 602.4 | |
| 0.00 | 1.54 | 0.00 | 1.09 | 8.22 | 196.90 | -45.52 | 81.90 | 0.7156 | 593.0 | 537.8 | |
| 0.00 | 1.45 | 0.00 | 1.02 | 6.63 | 196.97 | -45.45 | 84.12 | 0.7139 | 594.0 | 422.9 | |
| 0.00 | 1.00 | 0.00 | 0.71 | 6.83 | 196.77 | -45.65 | 83.84 | 0.7164 | 583.0 | 490.6 | |
| 0.00 | 0.45 | 0.00 | 0.32 | 7.59 | 196.59 | -45.83 | 82.79 | 0.7190 | 356.0 | 300.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
