SDO HMI 2014-07-06 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.08 | 29.16 | 3.18 | 18.24 | 12.18 | 278.77 | 36.91 | 285.56 | 0.6117 | -321.3 | -298.1 | |
|
previous
or next observation for the same group /

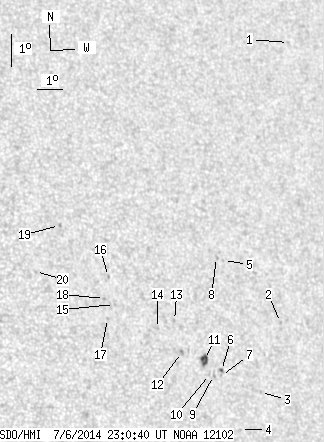

back to the solar disc SDO HMI 2014-07-06 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.70 | 20.80 | 285.02 | 43.15 | 296.08 | 0.7141 | -666.0 | -528.8 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 12.09 | 282.34 | 40.48 | 284.47 | 0.6578 | -635.0 | -497.6 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 9.98 | 281.18 | 39.32 | 281.46 | 0.6390 | -410.0 | -433.4 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 8.88 | 280.24 | 38.37 | 279.89 | 0.6248 | -601.0 | -533.5 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 14.09 | 280.41 | 38.55 | 288.04 | 0.6379 | -548.0 | -462.4 | |
| 0.54 | 1.82 | 0.34 | 1.15 | 10.71 | 279.74 | 37.87 | 282.91 | 0.6211 | -674.0 | -571.0 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 10.56 | 279.72 | 37.85 | 282.67 | 0.6205 | -679.0 | -534.2 | |
| 0.00 | 1.54 | 0.00 | 0.99 | 14.19 | 280.15 | 38.29 | 288.28 | 0.6349 | -734.0 | -693.9 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 10.57 | 279.41 | 37.54 | 282.76 | 0.6164 | -584.0 | -578.5 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 10.60 | 279.25 | 37.39 | 282.85 | 0.6144 | -730.0 | -587.1 | |
| 4.54 | 6.72 | 2.84 | 4.21 | 11.07 | 279.13 | 37.26 | 283.64 | 0.6136 | -832.5 | -626.5 | |
| 0.00 | 2.09 | 0.00 | 1.29 | 11.32 | 278.27 | 36.40 | 284.26 | 0.6026 | -817.0 | -710.1 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 12.31 | 278.15 | 36.29 | 285.92 | 0.6035 | -698.0 | -522.9 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 12.09 | 277.46 | 35.60 | 285.76 | 0.5936 | -520.0 | -523.8 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 12.89 | 275.95 | 34.08 | 287.62 | 0.5753 | 611.0 | 533.0 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 13.76 | 275.86 | 34.00 | 289.13 | 0.5770 | 483.0 | 465.3 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 12.46 | 275.62 | 33.75 | 287.01 | 0.5695 | 621.0 | 509.6 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 13.08 | 275.60 | 33.73 | 288.09 | 0.5712 | 760.0 | 598.8 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 15.40 | 274.30 | 32.43 | 292.63 | 0.5623 | 644.0 | 525.4 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 14.00 | 273.17 | 31.31 | 290.75 | 0.5413 | 645.0 | 499.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
