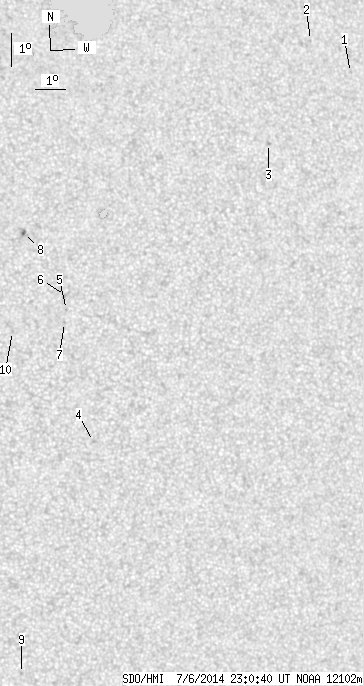

SDO HMI 2014-07-06 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.64 | 12.27 | 0.33 | 6.54 | 6.89 | 262.36 | 20.50 | 279.19 | 0.3606 | 777.0 | 610.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.47 | 13.02 | 270.71 | 28.85 | 290.20 | 0.5029 | 577.0 | 413.4 | |
| 0.00 | 0.27 | 0.00 | 0.15 | 14.05 | 269.42 | 27.56 | 292.95 | 0.4893 | 606.0 | 547.7 | |
| 0.00 | 2.27 | 0.00 | 1.26 | 10.92 | 267.60 | 25.73 | 287.60 | 0.4491 | 883.0 | 616.8 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 1.96 | 261.33 | 19.46 | 266.02 | 0.3352 | 709.0 | 602.2 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 6.00 | 260.56 | 18.69 | 278.40 | 0.3236 | 713.0 | 538.6 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 6.43 | 260.54 | 18.68 | 279.72 | 0.3242 | 870.0 | 560.1 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 5.61 | 260.48 | 18.61 | 277.20 | 0.3216 | 804.0 | 656.6 | |
| 0.64 | 2.45 | 0.33 | 1.28 | 8.35 | 259.27 | 17.40 | 286.48 | 0.3099 | 1021.0 | 804.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -5.09 | 259.07 | 17.20 | 243.56 | 0.3304 | 798.0 | 600.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 5.37 | 258.80 | 16.93 | 276.96 | 0.2934 | 708.0 | 580.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
