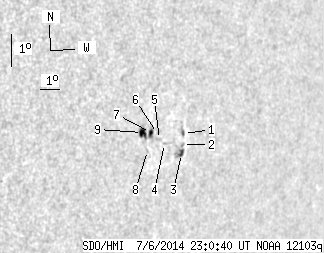

SDO HMI 2014-07-06 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.27 | 27.69 | 6.78 | 22.94 | -7.52 | 294.08 | 52.22 | 257.93 | 0.8034 | -46.8 | 117.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.85 | -7.39 | 295.23 | 53.36 | 258.33 | 0.8147 | 519.0 | 435.3 | |
| 0.00 | 1.27 | 0.00 | 1.08 | -7.73 | 295.23 | 53.37 | 257.92 | 0.8154 | 431.0 | 431.3 | |
| 1.82 | 6.17 | 1.55 | 5.25 | -8.01 | 295.23 | 53.37 | 257.58 | 0.8159 | 588.0 | 502.1 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -7.65 | 294.30 | 52.43 | 257.81 | 0.8059 | 377.0 | 323.3 | |
| 0.00 | 1.82 | 0.00 | 1.50 | -7.51 | 294.02 | 52.15 | 257.92 | 0.8028 | 247.0 | 159.1 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -7.32 | 293.89 | 52.02 | 258.13 | 0.8011 | 326.0 | 311.0 | |
| 1.73 | 4.81 | 1.41 | 3.94 | -7.27 | 293.53 | 51.66 | 258.11 | 0.7973 | -332.9 | -163.5 | |
| 0.00 | 1.18 | 0.00 | 0.97 | -7.83 | 293.47 | 51.61 | 257.41 | 0.7978 | -470.0 | -385.2 | |
| 4.72 | 8.44 | 3.82 | 6.84 | -7.25 | 293.13 | 51.26 | 258.05 | 0.7932 | -646.7 | -384.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
