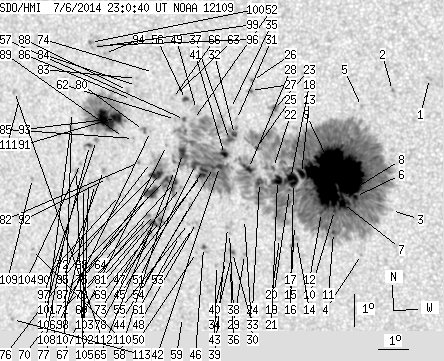

SDO HMI 2014-07-06 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 343.16 | 1865.42 | 186.92 | 1018.40 | -7.81 | 219.99 | -21.87 | 117.72 | 0.4180 | 446.7 | 137.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.14 | -4.89 | 225.24 | -16.63 | 116.65 | 0.3204 | 668.0 | 684.7 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -5.28 | 224.04 | -17.82 | 116.12 | 0.3409 | 717.0 | 503.4 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -9.00 | 223.85 | -18.01 | 124.93 | 0.3741 | 269.0 | 203.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -10.40 | 222.79 | -19.07 | 126.37 | 0.4008 | -749.0 | -572.2 | |
| 0.00 | 2.18 | 0.00 | 1.16 | -5.79 | 223.03 | -18.84 | 116.18 | 0.3596 | -760.0 | -575.5 | |
| 1.91 | 1236.43 | 1.02 | 667.16 | -8.58 | 222.70 | -19.16 | 122.38 | 0.3859 | 1307.0 | 397.1 | |
| 5.36 | -6.00 | 2.89 | -6.00 | -8.81 | 222.27 | -19.60 | 122.30 | 0.3938 | 1162.7 | 999999 | |
| 2.36 | -6.00 | 1.27 | -6.00 | -8.59 | 222.25 | -19.62 | 121.80 | 0.3923 | 1054.7 | 999999 | |
| 196.22 | -6.00 | 105.48 | -6.00 | -7.94 | 222.08 | -19.78 | 120.14 | 0.3892 | 1652.9 | 999999 | |
| 0.27 | -6.00 | 0.15 | -6.00 | -9.03 | 221.99 | -19.87 | 122.42 | 0.3994 | 875.0 | 999999 | |
| 0.91 | -6.00 | 0.49 | -6.00 | -9.72 | 221.92 | -19.95 | 123.78 | 0.4063 | 373.1 | 999999 | |
| 1.18 | -6.00 | 0.64 | -6.00 | -9.11 | 221.56 | -20.31 | 122.02 | 0.4059 | 668.0 | 999999 | |
| 4.54 | -6.00 | 2.46 | -6.00 | -7.90 | 220.97 | -20.90 | 118.72 | 0.4045 | 902.7 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.39 | -9.94 | 220.68 | -21.19 | 122.65 | 0.4246 | 240.0 | 96.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -9.53 | 220.64 | -21.23 | 121.78 | 0.4218 | 508.0 | 330.9 | |
| 4.45 | -6.00 | 2.42 | -6.00 | -8.22 | 220.69 | -21.18 | 119.08 | 0.4108 | 920.9 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.19 | -10.16 | 220.53 | -21.34 | 122.92 | 0.4284 | -804.0 | -589.8 | |
| 11.35 | -6.00 | 6.16 | -6.00 | -8.07 | 220.60 | -21.27 | 118.65 | 0.4110 | 946.8 | 999999 | |
| 0.54 | -6.00 | 0.30 | -6.00 | -8.41 | 220.55 | -21.32 | 119.33 | 0.4143 | 661.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -9.95 | 220.11 | -21.75 | 122.00 | 0.4322 | 398.0 | 214.4 | |
| 7.17 | -6.00 | 3.91 | -6.00 | -8.14 | 220.16 | -21.70 | 118.32 | 0.4176 | 776.4 | 999999 | |
| 0.91 | -6.00 | 0.49 | -6.00 | -7.74 | 220.05 | -21.81 | 117.34 | 0.4162 | 827.3 | 999999 | |
| 0.00 | 8.81 | 0.00 | 4.76 | -5.94 | 220.14 | -21.72 | 113.43 | 0.4029 | 709.0 | 331.2 | |
| 4.63 | -6.00 | 2.53 | -6.00 | -8.21 | 219.56 | -22.30 | 117.83 | 0.4265 | 656.8 | 999999 | |
| 1.18 | -6.00 | 0.64 | -6.00 | -7.13 | 219.52 | -22.34 | 115.47 | 0.4196 | 912.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -5.06 | 219.49 | -22.38 | 110.80 | 0.4074 | -685.0 | -514.0 | |
| 0.36 | 2.09 | 0.20 | 1.13 | -5.37 | 219.41 | -22.46 | 111.44 | 0.4103 | 817.2 | 632.2 | |
| 5.18 | -6.00 | 2.84 | -6.00 | -7.79 | 219.22 | -22.65 | 116.58 | 0.4283 | 992.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -10.48 | 218.90 | -22.97 | 121.66 | 0.4526 | -940.0 | -740.6 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -9.38 | 218.98 | -22.88 | 119.61 | 0.4431 | 259.0 | 197.5 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -6.28 | 218.90 | -22.96 | 113.02 | 0.4231 | 412.0 | 247.7 | |
| 2.27 | 20.25 | 1.24 | 11.10 | -6.74 | 218.81 | -23.05 | 113.96 | 0.4273 | 977.7 | 634.9 | |
| 0.73 | 2.91 | 0.40 | 1.62 | -10.43 | 218.50 | -23.37 | 121.13 | 0.4575 | 861.1 | 555.8 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -10.55 | 218.46 | -23.41 | 121.32 | 0.4591 | 364.0 | 371.0 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -5.94 | 218.72 | -23.15 | 112.12 | 0.4238 | 646.0 | 466.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -10.96 | 218.39 | -23.48 | 122.02 | 0.4632 | -733.0 | -568.5 | |
| 2.54 | -32.00 | 1.39 | -32.00 | -6.90 | 218.64 | -23.23 | 114.14 | 0.4309 | 832.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -9.83 | 218.44 | -23.42 | 119.93 | 0.4538 | -753.0 | -595.4 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -9.64 | 218.39 | -23.47 | 119.51 | 0.4531 | -785.0 | -654.4 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -10.71 | 218.24 | -23.63 | 121.40 | 0.4632 | -725.0 | -734.5 | |
| 3.27 | 257.69 | 1.80 | 142.54 | -7.37 | 218.44 | -23.42 | 114.95 | 0.4366 | 970.9 | -211.2 | |
| 3.00 | -41.00 | 1.65 | -41.00 | -7.75 | 218.25 | -23.61 | 115.56 | 0.4418 | 221.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -10.85 | 217.92 | -23.94 | 121.31 | 0.4685 | -760.0 | -556.6 | |
| 1.36 | -41.00 | 0.75 | -41.00 | -7.78 | 218.05 | -23.82 | 115.44 | 0.4449 | -532.6 | 999999 | |
| 2.91 | -41.00 | 1.61 | -41.00 | -7.85 | 217.71 | -24.16 | 115.27 | 0.4502 | -1113.4 | 999999 | |
| 0.82 | 3.36 | 0.46 | 1.88 | -10.29 | 217.53 | -24.34 | 119.87 | 0.4695 | -1086.9 | -737.1 | |
| 3.45 | -41.00 | 1.91 | -41.00 | -8.04 | 217.63 | -24.24 | 115.58 | 0.4525 | -955.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -9.51 | 217.35 | -24.51 | 118.22 | 0.4663 | -755.0 | -539.1 | |
| 0.00 | 7.90 | 0.00 | 4.36 | -6.00 | 217.58 | -24.29 | 111.30 | 0.4409 | -381.0 | -366.9 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -10.46 | 217.27 | -24.59 | 119.92 | 0.4741 | -671.0 | -578.4 | |
| 4.72 | -41.00 | 2.62 | -41.00 | -7.70 | 217.45 | -24.42 | 114.73 | 0.4529 | -813.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -6.31 | 217.46 | -24.41 | 111.86 | 0.4444 | -288.0 | -280.8 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -9.71 | 217.20 | -24.67 | 118.44 | 0.4697 | -702.0 | -591.8 | |
| 0.00 | 2.45 | 0.00 | 1.37 | -9.02 | 217.15 | -24.71 | 117.07 | 0.4656 | -857.0 | -657.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -9.55 | 217.08 | -24.79 | 118.03 | 0.4703 | -719.0 | -592.2 | |
| 1.73 | 4.63 | 0.95 | 2.56 | -5.70 | 217.22 | -24.65 | 110.38 | 0.4445 | -1093.8 | -738.3 | |
| 0.73 | -41.00 | 0.40 | -41.00 | -6.32 | 217.15 | -24.71 | 111.63 | 0.4488 | -1102.0 | 999999 | |
| 7.45 | -41.00 | 4.14 | -41.00 | -7.37 | 217.03 | -24.84 | 113.70 | 0.4568 | -975.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -12.52 | 216.59 | -25.27 | 122.95 | 0.4986 | -640.0 | -523.7 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -8.43 | 216.89 | -24.98 | 115.69 | 0.4654 | -864.0 | -681.8 | |
| 0.00 | 1.73 | 0.00 | 0.97 | -9.97 | 216.74 | -25.13 | 118.49 | 0.4778 | -769.0 | -584.7 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -6.33 | 216.85 | -25.02 | 111.41 | 0.4533 | -709.0 | -610.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -5.55 | 216.89 | -24.98 | 109.82 | 0.4486 | -784.0 | -583.2 | |
| 1.91 | 67.01 | 1.07 | 37.64 | -8.28 | 216.70 | -25.17 | 115.23 | 0.4671 | -1070.0 | -692.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -7.91 | 216.72 | -25.15 | 114.51 | 0.4644 | -749.0 | -646.4 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -5.68 | 216.78 | -25.08 | 110.01 | 0.4508 | -651.0 | -482.0 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -7.14 | 216.50 | -25.37 | 112.79 | 0.4630 | 465.0 | 325.3 | |
| 4.00 | -64.00 | 2.24 | -64.00 | -8.23 | 216.39 | -25.47 | 114.86 | 0.4710 | -1109.7 | 999999 | |
| 1.27 | 11.89 | 0.72 | 6.73 | -9.48 | 216.12 | -25.74 | 117.03 | 0.4828 | -1014.1 | -750.1 | |
| 4.27 | -64.00 | 2.40 | -64.00 | -8.02 | 216.20 | -25.66 | 114.28 | 0.4724 | -1214.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -9.30 | 215.93 | -25.93 | 116.52 | 0.4842 | -822.0 | -580.9 | |
| 3.81 | -64.00 | 2.15 | -64.00 | -8.08 | 215.99 | -25.87 | 114.24 | 0.4758 | -1003.2 | 999999 | |
| 3.45 | -69.00 | 1.95 | -69.00 | -9.58 | 215.88 | -25.99 | 116.99 | 0.4869 | -919.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -4.89 | 216.17 | -25.69 | 107.93 | 0.4559 | -667.0 | -571.6 | |
| 9.44 | -64.00 | 5.33 | -64.00 | -8.62 | 215.88 | -25.98 | 115.18 | 0.4805 | -940.2 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -7.68 | 215.92 | -25.95 | 113.40 | 0.4744 | -668.0 | -718.0 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -6.72 | 215.98 | -25.89 | 111.54 | 0.4681 | -835.0 | -735.8 | |
| 0.00 | 3.09 | 0.00 | 1.75 | -9.90 | 215.71 | -26.16 | 117.43 | 0.4912 | -746.0 | -624.7 | |
| 0.00 | 3.00 | 0.00 | 1.70 | -9.37 | 215.69 | -26.18 | 116.43 | 0.4881 | -779.0 | -706.7 | |
| 0.00 | 3.63 | 0.00 | 2.04 | -6.69 | 215.74 | -26.13 | 111.31 | 0.4713 | -976.0 | -860.1 | |
| 0.00 | 4.09 | 0.00 | 2.32 | -9.81 | 215.48 | -26.39 | 117.07 | 0.4938 | -548.0 | -518.8 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -7.69 | 215.50 | -26.36 | 113.09 | 0.4803 | -959.0 | -723.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -5.09 | 215.58 | -26.28 | 107.96 | 0.4655 | -821.0 | -681.9 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -5.31 | 215.57 | -26.29 | 108.40 | 0.4667 | -711.0 | -541.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -6.95 | 215.38 | -26.48 | 111.56 | 0.4779 | -744.0 | -587.0 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -5.75 | 215.38 | -26.48 | 109.15 | 0.4716 | -808.0 | -640.1 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -9.51 | 215.05 | -26.81 | 116.16 | 0.4976 | -603.0 | -433.1 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -5.47 | 215.26 | -26.61 | 108.52 | 0.4721 | -642.0 | -559.9 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -6.93 | 215.04 | -26.83 | 111.26 | 0.4827 | -468.0 | -456.0 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -8.74 | 214.77 | -27.10 | 114.50 | 0.4967 | -841.0 | -695.7 | |
| 8.63 | 131.12 | 4.87 | 74.33 | -6.32 | 214.84 | -27.03 | 109.92 | 0.4824 | -1268.7 | -436.9 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -8.22 | 214.40 | -27.47 | 113.25 | 0.4989 | -871.0 | -706.3 | |
| 21.70 | -91.00 | 12.31 | -91.00 | -6.39 | 214.45 | -27.41 | 109.80 | 0.4883 | -1121.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -4.35 | 214.52 | -27.35 | 105.80 | 0.4780 | -898.0 | -719.8 | |
| 0.00 | 1.73 | 0.00 | 0.99 | -7.97 | 214.27 | -27.59 | 112.70 | 0.4992 | -816.0 | -648.8 | |
| 0.00 | 2.72 | 0.00 | 1.54 | -4.11 | 214.36 | -27.51 | 105.22 | 0.4794 | -981.0 | -798.9 | |
| 0.00 | 2.18 | 0.00 | 1.24 | -7.05 | 214.10 | -27.77 | 110.83 | 0.4967 | -814.0 | -657.0 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -8.42 | 213.93 | -27.94 | 113.27 | 0.5065 | -835.0 | -646.9 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -4.18 | 214.11 | -27.75 | 105.23 | 0.4833 | -765.0 | -664.9 | |
| 0.00 | 2.18 | 0.00 | 1.23 | -4.03 | 214.05 | -27.82 | 104.89 | 0.4836 | -787.0 | -673.5 | |
| 1.18 | 4.09 | 0.67 | 2.34 | -7.21 | 213.84 | -28.02 | 110.96 | 0.5011 | -770.2 | -488.1 | |
| 0.00 | 0.64 | 0.00 | 0.37 | -8.36 | 213.72 | -28.14 | 113.02 | 0.5091 | -684.0 | -628.0 | |
| 0.00 | 3.09 | 0.00 | 1.78 | -8.55 | 213.53 | -28.34 | 113.23 | 0.5128 | -489.0 | -492.3 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -7.78 | 213.49 | -28.38 | 111.78 | 0.5091 | -754.0 | -552.7 | |
| 0.00 | 2.27 | 0.00 | 1.31 | -8.03 | 213.33 | -28.54 | 112.13 | 0.5127 | -609.0 | -558.8 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -6.20 | 213.32 | -28.55 | 108.72 | 0.5037 | -349.0 | -368.5 | |
| 0.00 | 1.82 | 0.00 | 1.04 | -6.67 | 213.25 | -28.62 | 109.56 | 0.5068 | -767.0 | -614.8 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -9.95 | 212.77 | -29.10 | 115.15 | 0.5312 | -895.0 | -778.5 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -8.30 | 211.75 | -30.12 | 111.55 | 0.5359 | -662.0 | -537.6 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -10.52 | 211.53 | -30.34 | 115.22 | 0.5510 | -722.0 | -542.7 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -5.79 | 211.47 | -30.39 | 106.91 | 0.5282 | -436.0 | -324.7 | |
| 0.00 | 2.54 | 0.00 | 1.48 | -5.61 | 211.30 | -30.56 | 106.49 | 0.5298 | -573.0 | -467.6 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -12.76 | 210.52 | -31.34 | 118.12 | 0.5774 | -816.0 | -610.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
