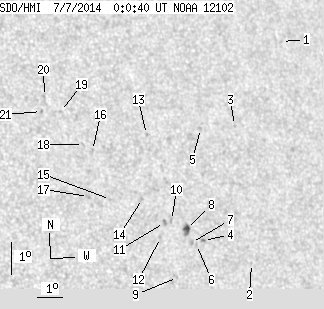

SDO HMI 2014-07-07 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.09 | 30.78 | 1.95 | 19.26 | 12.31 | 278.23 | 36.92 | 285.78 | 0.6121 | -255.4 | -273.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.56 | 16.74 | 284.23 | 42.91 | 290.57 | 0.6987 | -536.0 | -439.0 | |
| 0.00 | 0.64 | 0.00 | 0.41 | 9.95 | 281.52 | 40.20 | 281.26 | 0.6505 | -458.0 | -399.9 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 14.22 | 281.60 | 40.29 | 287.70 | 0.6603 | -283.0 | -336.7 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 10.73 | 279.71 | 38.39 | 282.82 | 0.6280 | -719.0 | -606.8 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 14.18 | 280.20 | 38.89 | 288.06 | 0.6425 | -762.0 | -655.4 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 10.61 | 279.41 | 38.10 | 282.70 | 0.6239 | -656.0 | -582.3 | |
| 0.00 | 1.91 | 0.00 | 1.20 | 10.68 | 279.22 | 37.91 | 282.85 | 0.6215 | -716.0 | -582.8 | |
| 3.09 | 5.99 | 1.95 | 3.78 | 11.12 | 279.09 | 37.78 | 283.58 | 0.6207 | -862.7 | -700.4 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 9.63 | 278.53 | 37.22 | 281.30 | 0.6103 | -570.0 | -426.4 | |
| 0.00 | 1.45 | 0.00 | 0.91 | 11.39 | 278.55 | 37.23 | 284.14 | 0.6139 | -802.0 | -645.0 | |
| 0.00 | 2.45 | 0.00 | 1.53 | 11.34 | 278.26 | 36.95 | 284.13 | 0.6100 | -773.0 | -653.6 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 10.88 | 278.04 | 36.73 | 283.45 | 0.6060 | -759.0 | -629.7 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 14.07 | 278.03 | 36.71 | 288.61 | 0.6141 | -543.0 | -476.4 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 12.10 | 277.53 | 36.22 | 285.59 | 0.6020 | -600.0 | -479.1 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 12.12 | 276.30 | 34.99 | 285.99 | 0.5854 | 551.0 | 397.2 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 13.65 | 275.86 | 34.55 | 288.72 | 0.5840 | 557.0 | 519.5 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 12.24 | 275.49 | 34.17 | 286.47 | 0.5746 | 707.0 | 576.2 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 13.85 | 275.55 | 34.24 | 289.17 | 0.5805 | 556.0 | 426.1 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 14.90 | 274.86 | 33.55 | 291.23 | 0.5751 | 530.0 | 413.4 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 15.38 | 274.34 | 33.03 | 292.30 | 0.5702 | 659.0 | 522.3 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 14.92 | 274.15 | 32.84 | 291.61 | 0.5657 | 694.0 | 560.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
