SDO HMI 2014-07-07 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 10.25 | 0.19 | 5.40 | 7.32 | 259.51 | 18.20 | 280.78 | 0.3214 | 734.2 | 598.0 | |
|
previous
or next observation for the same group /

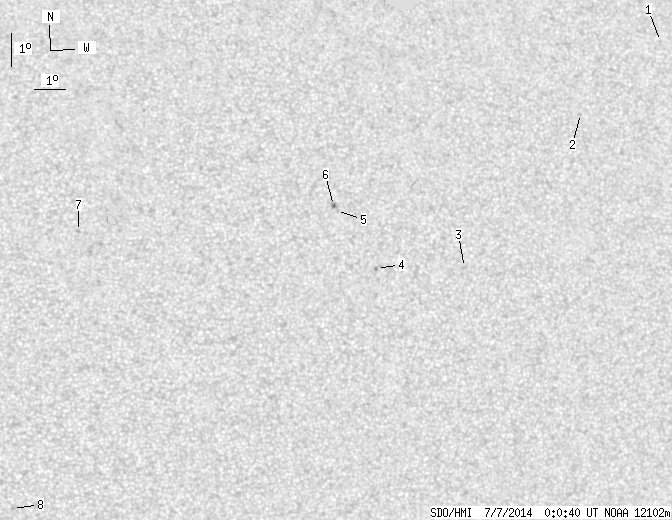

back to the solar disc SDO HMI 2014-07-07 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.52 | 13.10 | 270.75 | 29.43 | 290.04 | 0.5115 | 529.0 | 394.6 | |
| 0.00 | 0.54 | 0.00 | 0.30 | 10.97 | 267.68 | 26.36 | 287.36 | 0.4586 | 717.0 | 614.3 | |
| 0.00 | 1.82 | 0.00 | 0.97 | 6.36 | 263.42 | 22.11 | 278.28 | 0.3796 | 644.0 | 574.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 6.40 | 260.54 | 19.23 | 279.36 | 0.3331 | 812.0 | 745.5 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 8.19 | 259.32 | 18.01 | 285.49 | 0.3189 | 326.0 | 420.6 | |
| 0.36 | 1.54 | 0.19 | 0.81 | 8.35 | 259.23 | 17.92 | 286.04 | 0.3181 | 1045.5 | 849.2 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 7.68 | 251.12 | 9.80 | 293.63 | 0.1850 | 915.0 | 639.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -0.75 | 248.98 | 7.67 | 241.19 | 0.1530 | 826.0 | 594.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
