SDO HMI 2014-07-07 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.70 | 32.60 | 12.47 | 31.72 | -13.31 | 298.70 | 57.39 | 252.29 | 0.8623 | 128.5 | 23.8 | |
|
previous
or next observation for the same group /

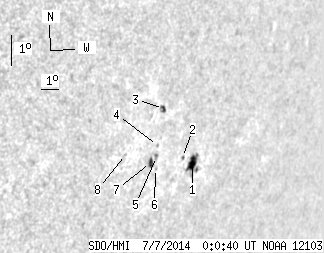

back to the solar disc SDO HMI 2014-07-07 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.08 | 16.80 | 8.12 | 16.91 | -13.64 | 299.80 | 58.48 | 252.18 | 0.8722 | 608.9 | 369.6 | |
| 0.36 | 1.27 | 0.36 | 1.25 | -13.41 | 299.11 | 57.80 | 252.28 | 0.8661 | 495.2 | 459.4 | |
| 1.63 | 4.27 | 1.52 | 3.97 | -11.77 | 297.45 | 56.14 | 253.75 | 0.8488 | -393.0 | -349.0 | |
| 0.00 | 1.09 | 0.00 | 1.02 | -12.94 | 297.49 | 56.18 | 252.41 | 0.8514 | -437.0 | -323.2 | |
| 0.00 | 2.27 | 0.00 | 2.14 | -13.29 | 297.56 | 56.25 | 252.03 | 0.8527 | -320.0 | -280.7 | |
| 0.00 | 1.09 | 0.00 | 1.03 | -13.68 | 297.64 | 56.33 | 251.61 | 0.8542 | -112.0 | -184.8 | |
| 2.63 | 4.63 | 2.47 | 4.34 | -13.47 | 297.28 | 55.97 | 251.75 | 0.8507 | -553.7 | -394.5 | |
| 0.00 | 1.18 | 0.00 | 1.06 | -13.14 | 295.79 | 54.47 | 251.75 | 0.8366 | -538.0 | -457.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
