SDO HMI 2014-07-07 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.32 | 681.87 | 70.03 | 393.98 | -11.79 | 268.32 | 27.00 | 239.94 | 0.5160 | 289.4 | 51.7 | |
|
previous
or next observation for the same group /

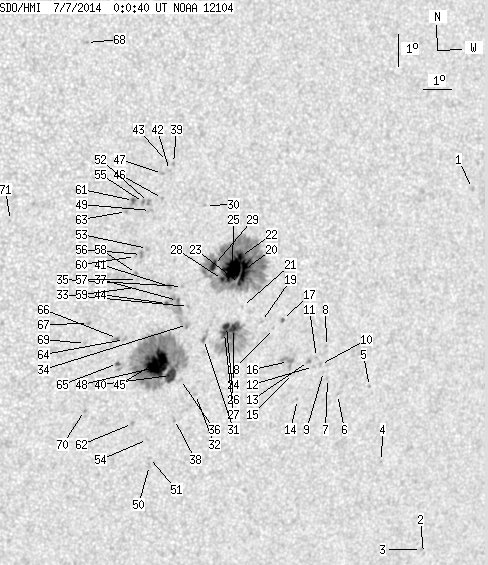

back to the solar disc SDO HMI 2014-07-07 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.26 | -8.12 | 277.71 | 36.40 | 252.12 | 0.6195 | 609.0 | 549.5 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -19.78 | 277.93 | 36.61 | 235.63 | 0.6822 | 496.0 | 459.5 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -19.64 | 277.81 | 36.50 | 235.73 | 0.6801 | 697.0 | 600.5 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -16.68 | 275.54 | 34.23 | 238.15 | 0.6366 | 617.0 | 488.6 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -14.23 | 274.63 | 33.32 | 241.03 | 0.6109 | 719.0 | 623.8 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -14.45 | 273.47 | 32.16 | 239.88 | 0.5981 | 557.0 | 433.8 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -13.92 | 273.02 | 31.70 | 240.34 | 0.5892 | 621.0 | 476.4 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -12.90 | 272.83 | 31.52 | 241.78 | 0.5805 | 595.0 | 476.0 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -13.69 | 272.83 | 31.52 | 240.55 | 0.5855 | 602.0 | 459.0 | |
| 0.00 | 1.73 | 0.00 | 1.05 | -13.47 | 272.69 | 31.38 | 240.79 | 0.5823 | 778.0 | 574.7 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -13.24 | 272.51 | 31.20 | 241.01 | 0.5786 | 719.0 | 582.2 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -13.52 | 272.44 | 31.13 | 240.52 | 0.5795 | 592.0 | 548.6 | |
| 0.00 | 2.36 | 0.00 | 1.43 | -13.35 | 272.23 | 30.92 | 240.62 | 0.5759 | 846.0 | 757.3 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -14.56 | 272.01 | 30.70 | 238.59 | 0.5811 | 638.0 | 526.1 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -13.72 | 271.74 | 30.42 | 239.67 | 0.5721 | 639.0 | 539.8 | |
| 0.00 | 8.81 | 0.00 | 5.29 | -13.33 | 271.50 | 30.19 | 240.09 | 0.5666 | 830.0 | 731.6 | |
| 0.36 | 1.63 | 0.22 | 0.97 | -11.99 | 271.11 | 29.80 | 241.94 | 0.5529 | 660.5 | 585.6 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -12.26 | 270.82 | 29.51 | 241.27 | 0.5510 | 693.0 | 583.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -12.03 | 270.36 | 29.05 | 241.29 | 0.5436 | 672.0 | 563.8 | |
| 16.89 | 257.80 | 9.80 | 149.16 | -10.36 | 269.58 | 28.27 | 243.49 | 0.5227 | 959.6 | 399.1 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -11.53 | 269.63 | 28.32 | 241.52 | 0.5308 | 486.0 | 360.1 | |
| 4.36 | -20.00 | 2.52 | -20.00 | -9.95 | 269.40 | 28.09 | 244.07 | 0.5177 | 1115.0 | 999999 | |
| 2.00 | -20.00 | 1.16 | -20.00 | -10.80 | 269.45 | 28.14 | 242.62 | 0.5237 | 731.0 | 999999 | |
| 4.45 | 72.46 | 2.60 | 42.41 | -12.22 | 269.39 | 28.08 | 240.17 | 0.5323 | 906.4 | 226.1 | |
| 30.33 | -20.00 | 17.53 | -20.00 | -10.35 | 269.16 | 27.85 | 243.17 | 0.5169 | 1285.7 | 999999 | |
| 3.54 | -24.00 | 2.06 | -24.00 | -12.15 | 269.14 | 27.82 | 240.07 | 0.5286 | 1004.2 | 999999 | |
| 1.91 | -24.00 | 1.11 | -24.00 | -12.33 | 269.09 | 27.77 | 239.71 | 0.5293 | 883.5 | 999999 | |
| 1.73 | -20.00 | 1.00 | -20.00 | -10.66 | 268.84 | 27.52 | 242.37 | 0.5146 | 1097.7 | 999999 | |
| 5.81 | -20.00 | 3.34 | -20.00 | -10.21 | 268.48 | 27.17 | 242.87 | 0.5069 | 1219.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -8.32 | 268.05 | 26.74 | 245.98 | 0.4893 | -651.0 | -426.7 | |
| 0.64 | 5.81 | 0.37 | 3.37 | -12.53 | 268.37 | 27.06 | 238.73 | 0.5215 | 557.0 | 496.2 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -14.28 | 268.30 | 26.99 | 235.80 | 0.5338 | -682.0 | -580.4 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -11.47 | 267.73 | 26.42 | 239.97 | 0.5057 | 618.0 | 500.2 | |
| 0.00 | 3.18 | 0.00 | 1.83 | -12.04 | 267.76 | 26.44 | 239.00 | 0.5101 | -539.0 | -551.0 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -10.84 | 267.46 | 26.15 | 240.85 | 0.4976 | 753.0 | 653.6 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -13.79 | 267.71 | 26.40 | 236.03 | 0.5227 | -598.0 | -488.9 | |
| 0.54 | 24.88 | 0.31 | 14.22 | -11.27 | 267.33 | 26.02 | 239.95 | 0.4990 | 792.7 | 114.4 | |
| 0.00 | 1.91 | 0.00 | 1.11 | -15.06 | 267.66 | 26.35 | 233.93 | 0.5323 | -691.0 | -618.4 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -6.98 | 266.86 | 25.55 | 247.66 | 0.4647 | 781.0 | 630.4 | |
| 10.53 | 222.02 | 6.09 | 127.44 | -13.65 | 267.34 | 26.03 | 235.90 | 0.5170 | -866.3 | -539.0 | |
| 0.54 | 2.82 | 0.31 | 1.60 | -10.82 | 267.01 | 25.70 | 240.46 | 0.4915 | 950.7 | 749.8 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -7.20 | 266.74 | 25.43 | 247.13 | 0.4642 | 756.0 | 611.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -6.91 | 266.66 | 25.34 | 247.63 | 0.4614 | 707.0 | 513.8 | |
| 0.73 | -37.00 | 0.41 | -37.00 | -11.36 | 266.96 | 25.65 | 239.45 | 0.4947 | 789.6 | 999999 | |
| 14.80 | -40.00 | 8.50 | -40.00 | -13.10 | 267.00 | 25.69 | 236.47 | 0.5084 | -1307.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -8.06 | 266.56 | 25.24 | 245.26 | 0.4668 | 902.0 | 693.5 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -7.28 | 266.51 | 25.19 | 246.77 | 0.4614 | 835.0 | 720.8 | |
| 19.98 | -40.00 | 11.47 | -40.00 | -13.38 | 266.79 | 25.48 | 235.79 | 0.5080 | -1247.0 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.37 | -8.42 | 266.17 | 24.86 | 244.21 | 0.4637 | 883.0 | 695.4 | |
| 0.00 | 2.27 | 0.00 | 1.33 | -16.53 | 266.98 | 25.67 | 230.97 | 0.5366 | -659.0 | -431.4 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -16.27 | 266.94 | 25.63 | 231.32 | 0.5340 | -471.0 | -476.7 | |
| 0.00 | 2.72 | 0.00 | 1.52 | -8.17 | 266.09 | 24.77 | 244.63 | 0.4609 | 850.0 | 727.7 | |
| 0.00 | 2.27 | 0.00 | 1.27 | -9.61 | 266.16 | 24.84 | 241.90 | 0.4715 | 710.0 | 545.5 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -15.68 | 266.79 | 25.48 | 232.07 | 0.5272 | -762.0 | -620.8 | |
| 0.00 | 2.18 | 0.00 | 1.21 | -8.17 | 265.92 | 24.60 | 244.49 | 0.4585 | 1028.0 | 851.5 | |
| 0.00 | 2.91 | 0.00 | 1.63 | -9.79 | 265.97 | 24.65 | 241.37 | 0.4702 | 904.0 | 758.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -10.57 | 265.89 | 24.58 | 239.84 | 0.4749 | 480.0 | 379.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -10.38 | 265.84 | 24.53 | 240.14 | 0.4728 | 722.0 | 665.6 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -10.82 | 265.85 | 24.53 | 239.33 | 0.4761 | 585.0 | 452.3 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -9.85 | 265.77 | 24.45 | 241.07 | 0.4679 | 723.0 | 679.3 | |
| 0.82 | 4.72 | 0.45 | 2.62 | -8.10 | 265.57 | 24.26 | 244.32 | 0.4532 | 1042.6 | 777.3 | |
| 0.00 | 2.00 | 0.00 | 1.15 | -15.15 | 266.20 | 24.89 | 232.27 | 0.5156 | -759.0 | -642.6 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -8.43 | 265.36 | 24.05 | 243.44 | 0.4525 | 917.0 | 780.1 | |
| 0.00 | 2.27 | 0.00 | 1.29 | -12.46 | 265.62 | 24.31 | 236.15 | 0.4859 | -966.0 | -694.7 | |
| 0.91 | 5.09 | 0.52 | 2.89 | -13.21 | 265.46 | 24.14 | 234.66 | 0.4901 | -882.9 | -626.5 | |
| 0.45 | 2.91 | 0.26 | 1.64 | -12.42 | 265.38 | 24.06 | 235.96 | 0.4825 | -920.8 | -753.1 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -11.92 | 264.34 | 23.03 | 235.71 | 0.4652 | -959.0 | -811.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -3.17 | 263.80 | 22.49 | 253.72 | 0.3995 | 809.0 | 640.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -12.55 | 264.30 | 22.99 | 234.52 | 0.4700 | -686.0 | -495.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -14.69 | 264.49 | 23.17 | 231.08 | 0.4912 | -603.0 | -683.0 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -8.62 | 261.51 | 20.19 | 238.87 | 0.4004 | -638.0 | -479.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
