SDO HMI 2014-07-07 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.76 | 373.11 | 27.87 | 199.90 | 14.95 | 260.21 | 18.90 | 303.85 | 0.3772 | -339.5 | -245.8 | |
|
previous
or next observation for the same group /

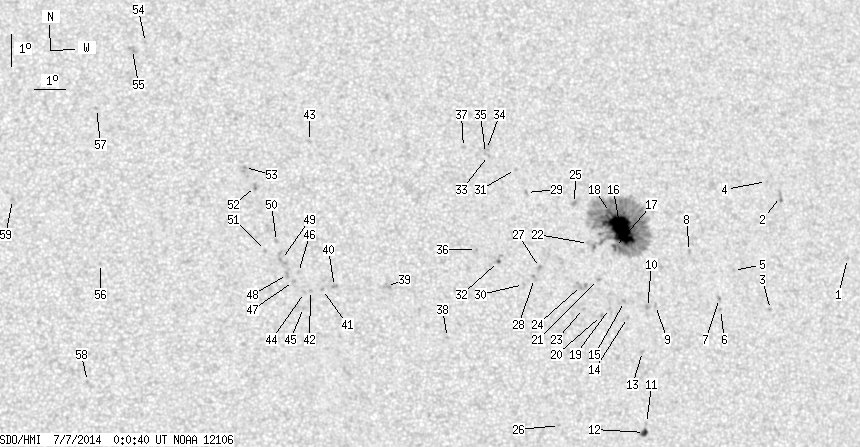

back to the solar disc SDO HMI 2014-07-07 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.83 | 14.07 | 269.41 | 28.09 | 292.64 | 0.4969 | 564.0 | 393.1 | |
| 0.00 | 3.81 | 0.00 | 2.15 | 16.07 | 267.31 | 25.99 | 297.96 | 0.4788 | -746.0 | -644.9 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 12.57 | 266.52 | 25.21 | 291.46 | 0.4486 | -744.0 | -568.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 16.55 | 266.88 | 25.57 | 299.23 | 0.4760 | -791.0 | -649.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 13.81 | 265.38 | 24.07 | 294.94 | 0.4386 | -754.0 | -705.4 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 12.62 | 264.81 | 23.50 | 292.79 | 0.4238 | -804.0 | -637.6 | |
| 0.00 | 1.73 | 0.00 | 0.94 | 12.96 | 264.81 | 23.50 | 293.54 | 0.4257 | -849.0 | -709.4 | |
| 0.00 | 1.91 | 0.00 | 1.04 | 14.44 | 263.95 | 22.63 | 297.54 | 0.4221 | -782.0 | -640.3 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 12.79 | 262.63 | 21.32 | 295.04 | 0.3930 | -817.0 | -638.4 | |
| 0.00 | 2.27 | 0.00 | 1.22 | 12.74 | 262.36 | 21.05 | 295.16 | 0.3886 | -965.0 | -786.0 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 9.18 | 262.06 | 20.74 | 286.39 | 0.3660 | -379.0 | -255.1 | |
| 2.91 | 4.63 | 1.54 | 2.46 | 8.90 | 261.97 | 20.66 | 285.71 | 0.3637 | -956.2 | -697.2 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 11.39 | 262.08 | 20.77 | 292.10 | 0.3767 | -923.0 | -696.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 12.44 | 261.67 | 20.35 | 295.12 | 0.3767 | -808.0 | -643.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 12.94 | 261.61 | 20.29 | 296.40 | 0.3790 | -779.0 | -689.1 | |
| 46.77 | 262.53 | 25.21 | 141.63 | 15.17 | 261.68 | 20.37 | 301.52 | 0.3958 | -1342.0 | -410.9 | |
| 1.27 | -16.00 | 0.68 | -16.00 | 14.62 | 261.43 | 20.11 | 300.56 | 0.3881 | -962.9 | 999999 | |
| 0.27 | -16.00 | 0.15 | -16.00 | 15.71 | 261.40 | 20.09 | 303.05 | 0.3961 | -934.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 12.73 | 261.09 | 19.78 | 296.43 | 0.3701 | -874.0 | -722.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 12.52 | 260.81 | 19.50 | 296.20 | 0.3647 | -934.0 | -751.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 13.64 | 260.80 | 19.49 | 298.97 | 0.3722 | -793.0 | -695.0 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 14.76 | 260.57 | 19.26 | 301.92 | 0.3773 | -685.0 | -504.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 12.75 | 260.23 | 18.92 | 297.42 | 0.3578 | -776.0 | -688.5 | |
| 0.00 | 6.27 | 0.00 | 3.33 | 13.46 | 260.22 | 18.91 | 299.22 | 0.3627 | -718.0 | -708.3 | |
| 0.00 | 2.91 | 0.00 | 1.56 | 16.02 | 260.22 | 18.91 | 305.22 | 0.3829 | -251.0 | -148.0 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 9.17 | 259.21 | 17.90 | 288.56 | 0.3214 | 701.0 | 527.9 | |
| 0.00 | 2.27 | 0.00 | 1.20 | 14.05 | 258.88 | 17.57 | 302.41 | 0.3484 | -915.0 | -792.3 | |
| 0.00 | 3.00 | 0.00 | 1.58 | 13.71 | 258.69 | 17.38 | 301.82 | 0.3430 | -747.0 | -656.3 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 16.39 | 258.66 | 17.34 | 308.29 | 0.3659 | 689.0 | 549.4 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 13.53 | 258.32 | 17.00 | 301.88 | 0.3363 | -717.0 | -699.0 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 17.12 | 258.36 | 17.05 | 310.35 | 0.3692 | 672.0 | 539.4 | |
| 0.54 | 3.72 | 0.29 | 1.96 | 14.26 | 257.55 | 16.24 | 304.91 | 0.3319 | 868.7 | 606.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 17.57 | 257.50 | 16.19 | 312.73 | 0.3634 | 802.0 | 586.0 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 17.76 | 257.45 | 16.14 | 313.21 | 0.3648 | 859.0 | 709.1 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 17.64 | 257.41 | 16.10 | 313.02 | 0.3629 | 888.0 | 800.7 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 14.64 | 256.86 | 15.55 | 307.01 | 0.3262 | 749.0 | 647.2 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 17.84 | 256.70 | 15.38 | 314.69 | 0.3567 | 843.0 | 670.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 11.94 | 255.75 | 14.43 | 301.38 | 0.2869 | 759.0 | 523.6 | |
| 0.00 | 5.63 | 0.00 | 2.90 | 13.54 | 253.87 | 12.56 | 309.75 | 0.2762 | 807.0 | 581.7 | |
| 0.00 | 2.63 | 0.00 | 1.35 | 13.57 | 252.21 | 10.90 | 313.75 | 0.2555 | 971.0 | 747.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 13.48 | 251.82 | 10.51 | 314.50 | 0.2498 | 856.0 | 675.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 13.45 | 251.44 | 10.13 | 315.46 | 0.2449 | 950.0 | 791.9 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 18.10 | 251.65 | 10.34 | 326.01 | 0.3065 | 802.0 | 610.8 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 13.39 | 251.25 | 9.93 | 315.83 | 0.2419 | 944.0 | 800.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 12.93 | 251.20 | 9.88 | 314.56 | 0.2358 | 770.0 | 594.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.01 | 251.08 | 9.77 | 318.08 | 0.2475 | 802.0 | 646.9 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 13.74 | 250.91 | 9.60 | 317.79 | 0.2422 | 947.0 | 726.4 | |
| 0.00 | 2.54 | 0.00 | 1.30 | 13.95 | 250.73 | 9.42 | 318.94 | 0.2428 | 931.0 | 795.3 | |
| 0.00 | 6.99 | 0.00 | 3.57 | 14.42 | 250.56 | 9.25 | 320.73 | 0.2469 | 793.0 | 656.5 | |
| 0.00 | 2.18 | 0.00 | 1.12 | 14.98 | 250.42 | 9.11 | 322.57 | 0.2528 | 855.0 | 655.7 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 14.71 | 250.06 | 8.75 | 322.98 | 0.2454 | 761.0 | 572.5 | |
| 0.00 | 2.72 | 0.00 | 1.40 | 16.70 | 249.83 | 8.52 | 328.24 | 0.2707 | 852.0 | 695.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 17.30 | 249.50 | 8.19 | 330.38 | 0.2764 | 758.0 | 664.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 21.29 | 246.45 | 5.14 | 344.74 | 0.3184 | 620.0 | 457.6 | |
| 0.00 | 4.63 | 0.00 | 2.41 | 21.07 | 246.02 | 4.70 | 345.78 | 0.3130 | 772.0 | 658.1 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 14.34 | 244.83 | 3.51 | 342.50 | 0.1983 | 790.0 | 610.5 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 19.20 | 244.79 | 3.48 | 348.04 | 0.2779 | 800.0 | 633.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 10.70 | 244.37 | 3.05 | 337.36 | 0.1366 | 910.0 | 740.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.34 | 242.07 | 0.75 | 356.75 | 0.2237 | 771.0 | 625.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
