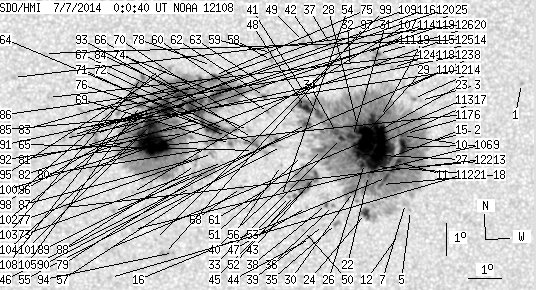

SDO HMI 2014-07-07 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 394.85 | 2095.39 | 199.51 | 1059.09 | -7.28 | 239.63 | -1.68 | 171.40 | 0.1972 | 38.0 | 71.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.78 | -5.64 | 246.98 | 5.67 | 211.81 | 0.1873 | 834.0 | 566.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -7.42 | 244.20 | 2.88 | 194.76 | 0.1966 | 187.0 | 147.3 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -6.15 | 243.88 | 2.57 | 194.91 | 0.1740 | 840.0 | 640.7 | |
| 0.00 | 2.82 | 0.00 | 1.42 | -6.08 | 243.67 | 2.35 | 193.79 | 0.1721 | 1097.0 | 796.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.56 | 243.59 | 2.28 | 189.84 | 0.2303 | -343.0 | -313.3 | |
| 1.00 | 1052.55 | 0.50 | 531.52 | -7.17 | 243.43 | 2.11 | 191.18 | 0.1894 | 1045.9 | 497.1 | |
| 0.00 | 4.99 | 0.00 | 2.54 | -9.34 | 243.43 | 2.12 | 189.33 | 0.2262 | 17.0 | 148.1 | |
| 0.00 | 4.99 | 0.00 | 2.51 | -5.77 | 243.39 | 2.08 | 192.62 | 0.1658 | 630.0 | 457.7 | |
| 9.99 | -6.00 | 5.05 | -6.00 | -7.60 | 243.33 | 2.02 | 190.30 | 0.1964 | 1317.0 | 999999 | |
| 0.82 | -6.00 | 0.41 | -6.00 | -7.23 | 243.33 | 2.02 | 190.65 | 0.1901 | 1220.8 | 999999 | |
| 6.36 | -6.00 | 3.22 | -6.00 | -8.06 | 243.21 | 1.90 | 189.30 | 0.2040 | 1081.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -10.31 | 243.22 | 1.91 | 187.82 | 0.2420 | -923.0 | -632.2 | |
| 2.63 | -6.00 | 1.33 | -6.00 | -8.28 | 243.03 | 1.72 | 188.26 | 0.2072 | 897.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -5.12 | 243.02 | 1.71 | 191.21 | 0.1535 | -779.0 | -567.5 | |
| 8.08 | -6.00 | 4.09 | -6.00 | -7.91 | 242.94 | 1.62 | 188.07 | 0.2006 | 1018.1 | 999999 | |
| 3.63 | -6.00 | 1.84 | -6.00 | -8.53 | 242.85 | 1.53 | 187.23 | 0.2110 | 918.7 | 999999 | |
| 47.95 | -6.00 | 24.20 | -6.00 | -7.44 | 242.69 | 1.38 | 187.15 | 0.1921 | 1533.3 | 999999 | |
| 1.36 | -6.00 | 0.69 | -6.00 | -8.75 | 242.69 | 1.38 | 186.40 | 0.2144 | 911.1 | 999999 | |
| 1.54 | -6.00 | 0.78 | -6.00 | -6.64 | 242.66 | 1.34 | 187.54 | 0.1782 | 1235.1 | 999999 | |
| 1.27 | 12.53 | 0.64 | 6.28 | -4.69 | 242.59 | 1.28 | 188.89 | 0.1448 | -1003.9 | -350.8 | |
| 9.17 | -6.00 | 4.64 | -6.00 | -8.19 | 242.51 | 1.19 | 185.81 | 0.2045 | 1161.4 | 999999 | |
| 1.27 | -6.00 | 0.64 | -6.00 | -8.47 | 242.29 | 0.98 | 184.65 | 0.2089 | 827.2 | 999999 | |
| 41.59 | -6.00 | 20.98 | -6.00 | -7.29 | 242.23 | 0.91 | 184.84 | 0.1886 | 1703.8 | 999999 | |
| 5.99 | -6.00 | 3.05 | -6.00 | -9.65 | 242.20 | 0.89 | 183.83 | 0.2290 | 982.4 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.32 | -4.69 | 242.20 | 0.88 | 186.15 | 0.1439 | -854.0 | -591.4 | |
| 8.81 | -6.00 | 4.46 | -6.00 | -8.09 | 242.17 | 0.85 | 184.20 | 0.2023 | 1129.5 | 999999 | |
| 11.26 | -6.00 | 5.69 | -6.00 | -7.81 | 242.01 | 0.70 | 183.53 | 0.1974 | 1220.8 | 999999 | |
| 4.18 | -6.00 | 2.10 | -6.00 | -6.91 | 241.95 | 0.64 | 183.50 | 0.1818 | 1310.2 | 999999 | |
| 2.82 | -6.00 | 1.42 | -6.00 | -7.53 | 241.86 | 0.55 | 182.83 | 0.1924 | 1291.5 | 999999 | |
| 2.18 | -6.00 | 1.11 | -6.00 | -8.96 | 241.83 | 0.52 | 182.36 | 0.2169 | 752.1 | 999999 | |
| 6.17 | -6.00 | 3.11 | -6.00 | -7.25 | 241.80 | 0.48 | 182.57 | 0.1876 | 1190.6 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.05 | -5.15 | 241.74 | 0.42 | 182.80 | 0.1512 | 849.0 | 588.2 | |
| 2.72 | -6.00 | 1.37 | -6.00 | -7.32 | 241.46 | 0.15 | 180.77 | 0.1884 | 1131.2 | 999999 | |
| 3.72 | -6.00 | 1.88 | -6.00 | -7.13 | 241.31 | -0.01 | 179.96 | 0.1852 | 1080.1 | 999999 | |
| 0.00 | 3.72 | 0.00 | 1.90 | -9.96 | 241.30 | -0.01 | 179.96 | 0.2338 | 952.0 | 751.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -9.40 | 241.21 | -0.10 | 179.55 | 0.2242 | 895.0 | 726.1 | |
| 0.00 | 4.18 | 0.00 | 2.09 | -4.41 | 241.13 | -0.19 | 178.65 | 0.1383 | 797.0 | 734.7 | |
| 0.91 | 2.63 | 0.46 | 1.34 | -9.37 | 240.99 | -0.32 | 178.59 | 0.2237 | 902.7 | 525.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -10.03 | 240.90 | -0.41 | 178.26 | 0.2350 | 188.0 | 225.2 | |
| 4.18 | -6.00 | 2.11 | -6.00 | -7.66 | 240.88 | -0.44 | 177.76 | 0.1944 | 494.5 | 999999 | |
| 5.09 | -6.00 | 2.56 | -6.00 | -6.57 | 240.76 | -0.56 | 176.83 | 0.1759 | 1196.7 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.91 | -4.47 | 240.70 | -0.61 | 175.59 | 0.1397 | 1145.0 | 881.0 | |
| 4.45 | 55.94 | 2.25 | 28.35 | -8.50 | 240.66 | -0.66 | 176.88 | 0.2090 | 1117.3 | 407.4 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -10.43 | 240.50 | -0.82 | 176.67 | 0.2422 | -814.0 | -627.1 | |
| 2.00 | -43.00 | 1.01 | -43.00 | -8.74 | 240.47 | -0.84 | 176.09 | 0.2135 | 1070.1 | 999999 | |
| 3.45 | -6.00 | 1.74 | -6.00 | -6.88 | 240.39 | -0.93 | 174.90 | 0.1816 | 1036.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -9.46 | 240.38 | -0.94 | 175.89 | 0.2258 | -784.0 | -525.5 | |
| 7.72 | -6.00 | 3.88 | -6.00 | -6.35 | 240.36 | -0.96 | 174.46 | 0.1727 | 1176.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -4.32 | 240.30 | -1.01 | 172.62 | 0.1377 | 1087.0 | 931.9 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -10.18 | 240.28 | -1.03 | 175.71 | 0.2382 | 909.0 | 744.3 | |
| 0.00 | 2.18 | 0.00 | 1.10 | -7.84 | 240.26 | -1.05 | 174.71 | 0.1983 | -469.0 | -232.4 | |
| 0.82 | 3.00 | 0.41 | 1.52 | -9.09 | 240.01 | -1.31 | 174.11 | 0.2200 | 954.0 | 740.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -9.12 | 239.85 | -1.46 | 173.43 | 0.2208 | 595.0 | 537.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -9.12 | 239.61 | -1.71 | 172.33 | 0.2213 | 746.0 | 619.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.56 | 239.62 | -1.70 | 171.29 | 0.1949 | -273.0 | -248.5 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -8.15 | 239.61 | -1.70 | 171.72 | 0.2049 | -698.0 | -590.2 | |
| 0.91 | 15.35 | 0.46 | 7.75 | -7.35 | 239.46 | -1.85 | 170.34 | 0.1916 | 936.7 | 135.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -4.90 | 239.32 | -1.99 | 166.66 | 0.1508 | 1032.0 | 845.4 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -4.66 | 239.32 | -1.99 | 166.28 | 0.1466 | 926.0 | 700.8 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -6.51 | 239.22 | -2.09 | 168.21 | 0.1783 | -782.0 | -571.1 | |
| 0.00 | 3.09 | 0.00 | 1.57 | -8.87 | 239.18 | -2.14 | 170.24 | 0.2182 | -461.0 | -537.5 | |
| 1.09 | 769.41 | 0.55 | 389.05 | -6.01 | 239.10 | -2.21 | 166.92 | 0.1704 | 832.8 | -460.6 | |
| 0.36 | -62.00 | 0.18 | -62.00 | -5.64 | 239.07 | -2.24 | 166.24 | 0.1643 | 674.0 | 999999 | |
| 1.63 | 13.53 | 0.83 | 6.84 | -7.50 | 238.82 | -2.50 | 167.24 | 0.1964 | -795.6 | -219.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -7.69 | 238.75 | -2.56 | 167.14 | 0.1998 | -712.0 | -625.1 | |
| 0.36 | -64.00 | 0.18 | -64.00 | -7.32 | 238.73 | -2.59 | 166.57 | 0.1937 | 837.8 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.70 | -7.07 | 238.60 | -2.71 | 165.64 | 0.1900 | -206.0 | -207.0 | |
| 0.00 | 2.09 | 0.00 | 1.06 | -8.84 | 238.37 | -2.94 | 166.65 | 0.2205 | 910.0 | 727.6 | |
| 0.82 | -62.00 | 0.41 | -62.00 | -7.47 | 238.05 | -3.27 | 163.46 | 0.1993 | -690.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -6.45 | 237.99 | -3.32 | 161.57 | 0.1828 | -309.0 | -168.6 | |
| 0.91 | -62.00 | 0.46 | -62.00 | -7.26 | 237.93 | -3.39 | 162.55 | 0.1963 | -894.7 | 999999 | |
| 1.18 | -62.00 | 0.60 | -62.00 | -7.04 | 237.87 | -3.45 | 161.91 | 0.1931 | -873.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -8.06 | 237.80 | -3.52 | 163.12 | 0.2102 | -651.0 | -485.9 | |
| 15.44 | -62.00 | 7.77 | -62.00 | -5.92 | 237.69 | -3.62 | 158.99 | 0.1760 | -1211.1 | 999999 | |
| 1.54 | -62.00 | 0.78 | -62.00 | -5.37 | 237.57 | -3.74 | 157.13 | 0.1679 | 688.2 | 999999 | |
| 9.08 | -62.00 | 4.59 | -62.00 | -7.01 | 237.50 | -3.82 | 160.07 | 0.1947 | -1195.3 | 999999 | |
| 0.00 | 4.45 | 0.00 | 2.25 | -7.78 | 237.49 | -3.82 | 161.33 | 0.2073 | -278.0 | -284.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -5.06 | 237.48 | -3.83 | 155.89 | 0.1636 | 814.0 | 678.4 | |
| 0.00 | 19.61 | 0.00 | 9.95 | -8.34 | 237.30 | -4.01 | 161.33 | 0.2174 | -57.0 | -135.3 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -7.66 | 237.24 | -4.07 | 160.01 | 0.2067 | -918.0 | -663.1 | |
| 2.72 | -62.00 | 1.38 | -62.00 | -6.82 | 237.19 | -4.12 | 158.26 | 0.1936 | -1144.8 | 999999 | |
| 0.27 | -62.00 | 0.14 | -62.00 | -6.67 | 237.16 | -4.15 | 157.82 | 0.1913 | -974.7 | 999999 | |
| 1.73 | -62.00 | 0.87 | -62.00 | -5.49 | 237.14 | -4.17 | 155.12 | 0.1729 | 734.9 | 999999 | |
| 3.27 | -62.00 | 1.65 | -62.00 | -6.14 | 237.14 | -4.18 | 156.59 | 0.1831 | -1121.9 | 999999 | |
| 6.36 | -62.00 | 3.21 | -62.00 | -6.51 | 237.10 | -4.21 | 157.21 | 0.1892 | -961.6 | 999999 | |
| 1.82 | -62.00 | 0.91 | -62.00 | -5.74 | 237.11 | -4.20 | 155.54 | 0.1770 | -914.3 | 999999 | |
| 0.82 | 2.63 | 0.41 | 1.33 | -7.94 | 236.99 | -4.32 | 159.37 | 0.2126 | -953.4 | -773.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.16 | 236.96 | -4.35 | 159.59 | 0.2163 | -649.0 | -502.3 | |
| 0.00 | 3.54 | 0.00 | 1.80 | -8.44 | 236.90 | -4.42 | 159.76 | 0.2212 | -263.0 | -422.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.84 | 236.83 | -4.48 | 160.11 | 0.2281 | -675.0 | -453.1 | |
| 17.34 | -62.00 | 8.75 | -62.00 | -6.27 | 236.77 | -4.55 | 155.06 | 0.1877 | -1221.7 | 999999 | |
| 1.18 | -62.00 | 0.60 | -62.00 | -7.17 | 236.63 | -4.68 | 156.35 | 0.2027 | -836.4 | 999999 | |
| 6.27 | -62.00 | 3.16 | -62.00 | -5.96 | 236.52 | -4.79 | 153.16 | 0.1847 | -1357.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -10.88 | 236.24 | -5.08 | 160.70 | 0.2640 | -897.0 | -644.4 | |
| 0.00 | 2.36 | 0.00 | 1.19 | -5.13 | 236.22 | -5.09 | 149.46 | 0.1746 | -955.0 | -845.3 | |
| 21.16 | -62.00 | 10.69 | -62.00 | -6.36 | 236.06 | -5.26 | 151.97 | 0.1946 | -1388.1 | 999999 | |
| 0.00 | 4.45 | 0.00 | 2.29 | -10.92 | 235.96 | -5.36 | 159.76 | 0.2662 | -713.0 | -780.3 | |
| 0.00 | 2.27 | 0.00 | 1.14 | -5.16 | 235.92 | -5.40 | 148.06 | 0.1778 | -976.0 | -792.0 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -10.48 | 235.69 | -5.63 | 158.21 | 0.2609 | -656.0 | -444.4 | |
| 55.12 | -62.00 | 27.95 | -62.00 | -7.48 | 235.70 | -5.61 | 152.99 | 0.2144 | -1471.7 | 999999 | |
| 13.98 | -62.00 | 7.08 | -62.00 | -6.89 | 235.62 | -5.69 | 151.32 | 0.2061 | -1405.1 | 999999 | |
| 2.91 | -62.00 | 1.47 | -62.00 | -6.40 | 235.63 | -5.69 | 150.14 | 0.1987 | -1205.9 | 999999 | |
| 1.18 | 11.81 | 0.60 | 5.96 | -5.44 | 235.36 | -5.95 | 146.34 | 0.1871 | -1054.9 | -718.0 | |
| 7.90 | -62.00 | 4.01 | -62.00 | -7.17 | 235.31 | -6.01 | 150.68 | 0.2129 | -1198.2 | 999999 | |
| 2.82 | -62.00 | 1.42 | -62.00 | -6.31 | 235.29 | -6.02 | 148.45 | 0.2003 | -1038.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.17 | 235.01 | -6.31 | 155.37 | 0.2606 | -773.0 | -567.3 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -9.01 | 235.00 | -6.31 | 153.32 | 0.2430 | -798.0 | -585.6 | |
| 0.00 | 0.64 | 0.00 | 0.32 | -6.40 | 234.92 | -6.40 | 147.16 | 0.2050 | -892.0 | -802.1 | |
| 0.00 | 3.00 | 0.00 | 1.52 | -6.53 | 234.61 | -6.71 | 146.25 | 0.2098 | -1115.0 | -888.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -9.61 | 234.40 | -6.92 | 152.31 | 0.2567 | -1022.0 | -775.2 | |
| 0.91 | 5.63 | 0.46 | 2.86 | -6.90 | 234.35 | -6.96 | 146.25 | 0.2175 | -1092.1 | -755.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -11.68 | 234.25 | -7.06 | 155.27 | 0.2890 | -743.0 | -592.5 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -10.80 | 234.15 | -7.16 | 153.57 | 0.2765 | -778.0 | -692.5 | |
| 0.64 | 6.36 | 0.32 | 3.23 | -7.18 | 233.89 | -7.43 | 145.23 | 0.2259 | -1137.4 | -905.9 | |
| 0.00 | 2.36 | 0.00 | 1.21 | -8.27 | 233.71 | -7.60 | 147.22 | 0.2430 | -768.0 | -649.7 | |
| 0.00 | 3.54 | 0.00 | 1.80 | -7.15 | 233.64 | -7.68 | 144.27 | 0.2280 | -846.0 | -791.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.80 | 233.59 | -7.72 | 145.75 | 0.2375 | -767.0 | -650.5 | |
| 0.00 | 5.09 | 0.00 | 2.58 | -6.50 | 233.56 | -7.76 | 142.23 | 0.2199 | -732.0 | -693.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.59 | 233.54 | -7.78 | 145.02 | 0.2350 | -846.0 | -641.7 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -7.25 | 233.17 | -8.14 | 142.91 | 0.2340 | -929.0 | -841.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.06 | 233.08 | -8.23 | 142.12 | 0.2324 | -839.0 | -675.0 | |
| 0.00 | 2.63 | 0.00 | 1.35 | -9.49 | 232.90 | -8.41 | 147.23 | 0.2677 | -728.0 | -583.8 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -7.34 | 232.92 | -8.39 | 142.32 | 0.2379 | -889.0 | -717.3 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -6.08 | 232.45 | -8.86 | 137.22 | 0.2266 | -856.0 | -682.9 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -4.72 | 232.35 | -8.97 | 132.47 | 0.2115 | -811.0 | -624.9 | |
| 0.00 | 2.72 | 0.00 | 1.39 | -5.47 | 231.37 | -9.94 | 132.04 | 0.2324 | -711.0 | -432.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
