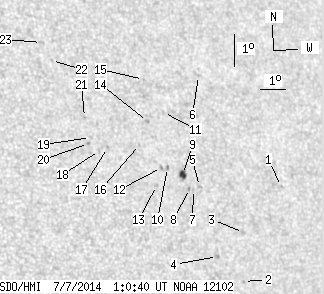

SDO HMI 2014-07-07 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.45 | 34.36 | 2.19 | 21.65 | 11.55 | 278.40 | 37.64 | 284.40 | 0.6201 | -300.5 | -265.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.55 | 10.61 | 283.01 | 42.25 | 281.91 | 0.6777 | -421.0 | -404.0 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 7.77 | 281.04 | 40.27 | 277.89 | 0.6489 | -653.0 | -580.2 | |
| 0.00 | 2.36 | 0.00 | 1.54 | 9.27 | 281.23 | 40.47 | 280.17 | 0.6530 | -41.0 | -126.0 | |
| 0.00 | 1.91 | 0.00 | 1.22 | 8.58 | 280.09 | 39.33 | 279.25 | 0.6372 | -699.0 | -554.3 | |
| 0.00 | 2.00 | 0.00 | 1.28 | 10.74 | 279.67 | 38.91 | 282.73 | 0.6349 | -802.0 | -567.0 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 14.16 | 280.26 | 39.50 | 287.84 | 0.6501 | -690.0 | -578.4 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 10.66 | 279.42 | 38.66 | 282.65 | 0.6314 | -604.0 | -493.3 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 10.70 | 279.27 | 38.51 | 282.74 | 0.6295 | -723.0 | -571.5 | |
| 3.45 | 5.36 | 2.19 | 3.40 | 11.14 | 279.06 | 38.30 | 283.48 | 0.6275 | -812.2 | -591.9 | |
| 0.00 | 1.73 | 0.00 | 1.09 | 11.38 | 278.50 | 37.74 | 283.99 | 0.6206 | -783.0 | -679.1 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 13.07 | 278.63 | 37.87 | 286.64 | 0.6264 | -508.0 | -389.9 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 11.38 | 278.27 | 37.51 | 284.06 | 0.6175 | -766.0 | -621.5 | |
| 0.00 | 1.73 | 0.00 | 1.08 | 10.84 | 277.99 | 37.23 | 283.25 | 0.6126 | -756.0 | -574.7 | |
| 0.00 | 1.91 | 0.00 | 1.20 | 12.82 | 277.95 | 37.19 | 286.45 | 0.6168 | -667.0 | -551.1 | |
| 0.00 | 0.73 | 0.00 | 0.46 | 14.12 | 278.04 | 37.28 | 288.48 | 0.6215 | -508.0 | -445.0 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 12.12 | 277.52 | 36.76 | 285.45 | 0.6093 | -539.0 | -451.2 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 12.08 | 276.28 | 35.52 | 285.74 | 0.5924 | 473.0 | 444.2 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 11.99 | 275.96 | 35.20 | 285.71 | 0.5879 | 490.0 | 389.5 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 12.41 | 275.68 | 34.92 | 286.49 | 0.5852 | 382.0 | 401.2 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 12.22 | 275.57 | 34.81 | 286.22 | 0.5833 | 677.0 | 606.7 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 13.03 | 275.55 | 34.79 | 287.58 | 0.5853 | 703.0 | 562.5 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 14.83 | 274.60 | 33.84 | 290.99 | 0.5787 | 541.0 | 507.7 | |
| 0.00 | 2.18 | 0.00 | 1.32 | 15.41 | 274.33 | 33.56 | 292.07 | 0.5773 | 404.0 | 286.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
