SDO HMI 2014-07-07 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.26 | 29.42 | 13.30 | 29.31 | -13.45 | 298.92 | 58.16 | 252.31 | 0.8690 | 197.6 | 57.5 | |
|
previous
or next observation for the same group /

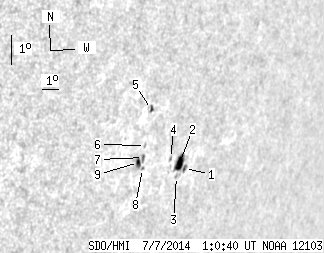

back to the solar disc SDO HMI 2014-07-07 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.73 | 14.98 | 0.75 | 15.35 | -13.84 | 300.19 | 59.43 | 252.16 | 0.8801 | 261.4 | 306.3 | |
| 8.81 | -1.00 | 9.01 | -1.00 | -13.63 | 299.79 | 59.03 | 252.31 | 0.8766 | 560.7 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.77 | -14.07 | 299.79 | 59.03 | 251.81 | 0.8773 | 289.0 | 301.1 | |
| 0.00 | 1.45 | 0.00 | 1.46 | -13.47 | 299.18 | 58.42 | 252.35 | 0.8713 | 515.0 | 479.4 | |
| 1.18 | 2.54 | 1.12 | 2.41 | -11.83 | 297.48 | 56.72 | 253.82 | 0.8540 | -257.5 | -261.4 | |
| 0.00 | 1.36 | 0.00 | 1.30 | -12.97 | 297.52 | 56.76 | 252.52 | 0.8565 | -324.0 | -268.0 | |
| 0.00 | 2.18 | 0.00 | 2.08 | -13.35 | 297.54 | 56.78 | 252.09 | 0.8574 | -323.0 | -263.2 | |
| 0.00 | 1.09 | 0.00 | 1.05 | -13.70 | 297.62 | 56.85 | 251.71 | 0.8588 | -175.0 | -147.2 | |
| 2.54 | 4.09 | 2.42 | 3.89 | -13.50 | 297.31 | 56.55 | 251.87 | 0.8557 | -547.9 | -432.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
