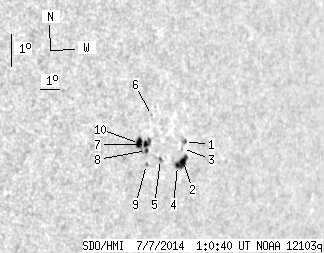

SDO HMI 2014-07-07 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.34 | 36.41 | 14.81 | 30.97 | -7.59 | 294.11 | 53.35 | 258.07 | 0.8148 | 52.6 | -55.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 2.06 | -7.35 | 295.32 | 54.56 | 258.61 | 0.8264 | 727.0 | 562.8 | |
| 6.45 | 11.26 | 5.66 | 9.87 | -7.97 | 295.39 | 54.63 | 257.88 | 0.8281 | 518.3 | 339.6 | |
| 0.00 | 0.91 | 0.00 | 0.79 | -7.56 | 295.26 | 54.50 | 258.34 | 0.8261 | 697.0 | 564.5 | |
| 2.18 | -2.00 | 1.90 | -2.00 | -8.08 | 295.09 | 54.33 | 257.68 | 0.8254 | 635.3 | 999999 | |
| 0.54 | 2.09 | 0.46 | 1.78 | -7.85 | 294.15 | 53.39 | 257.77 | 0.8158 | 208.7 | 261.8 | |
| 0.00 | 1.00 | 0.00 | 0.83 | -6.45 | 293.46 | 52.70 | 259.33 | 0.8065 | -307.0 | -309.5 | |
| 2.09 | 17.16 | 1.74 | 14.27 | -7.34 | 293.34 | 52.58 | 258.21 | 0.8069 | -453.3 | -378.0 | |
| 1.18 | -7.00 | 0.99 | -7.00 | -7.53 | 293.38 | 52.61 | 257.99 | 0.8075 | -365.2 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.37 | -7.97 | 293.45 | 52.69 | 257.47 | 0.8091 | -543.0 | -402.5 | |
| 4.90 | -7.00 | 4.06 | -7.00 | -7.29 | 292.98 | 52.22 | 258.20 | 0.8031 | -696.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
